NO Block Role Description Remarks
1 Scaler
IC200

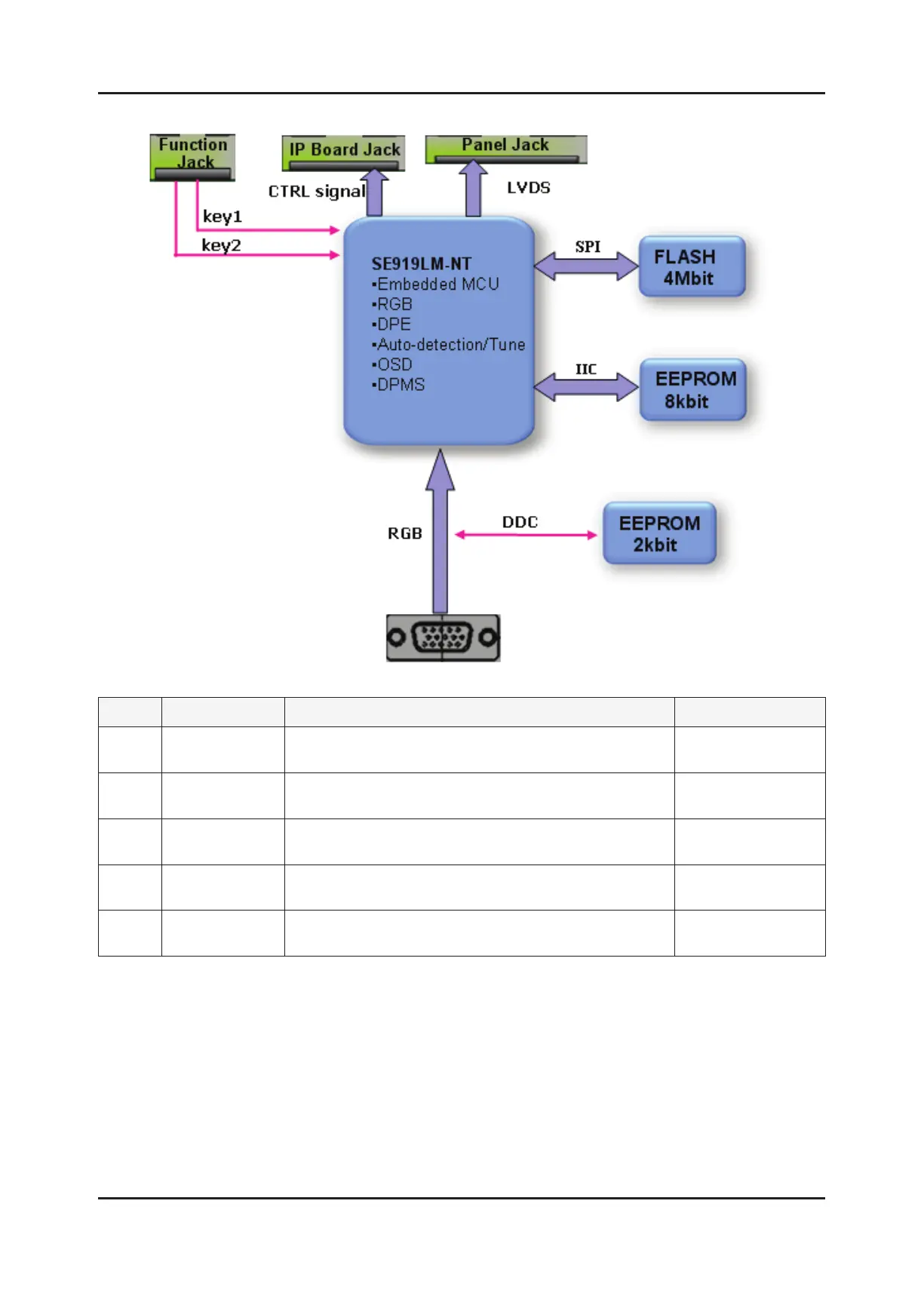

The ADC, TMDS, Scaling and Controller are integrated on a
single chip.
SE919LM-NT
2 FLASH MEMORY
IC401
Stores the rmware for the Scaler. The information can be
updated.
3 EEPROM
IC402
Stores the OSD, Timing etc.
NVRAM
24C08
4 EEPROM
IC202
Stores the EDID data. 24C02
5 Regulator
IC601, IC602
The IC for a stable DC power supply.
S-1172B33-U5T1G
S-1172B18-U5T1G
