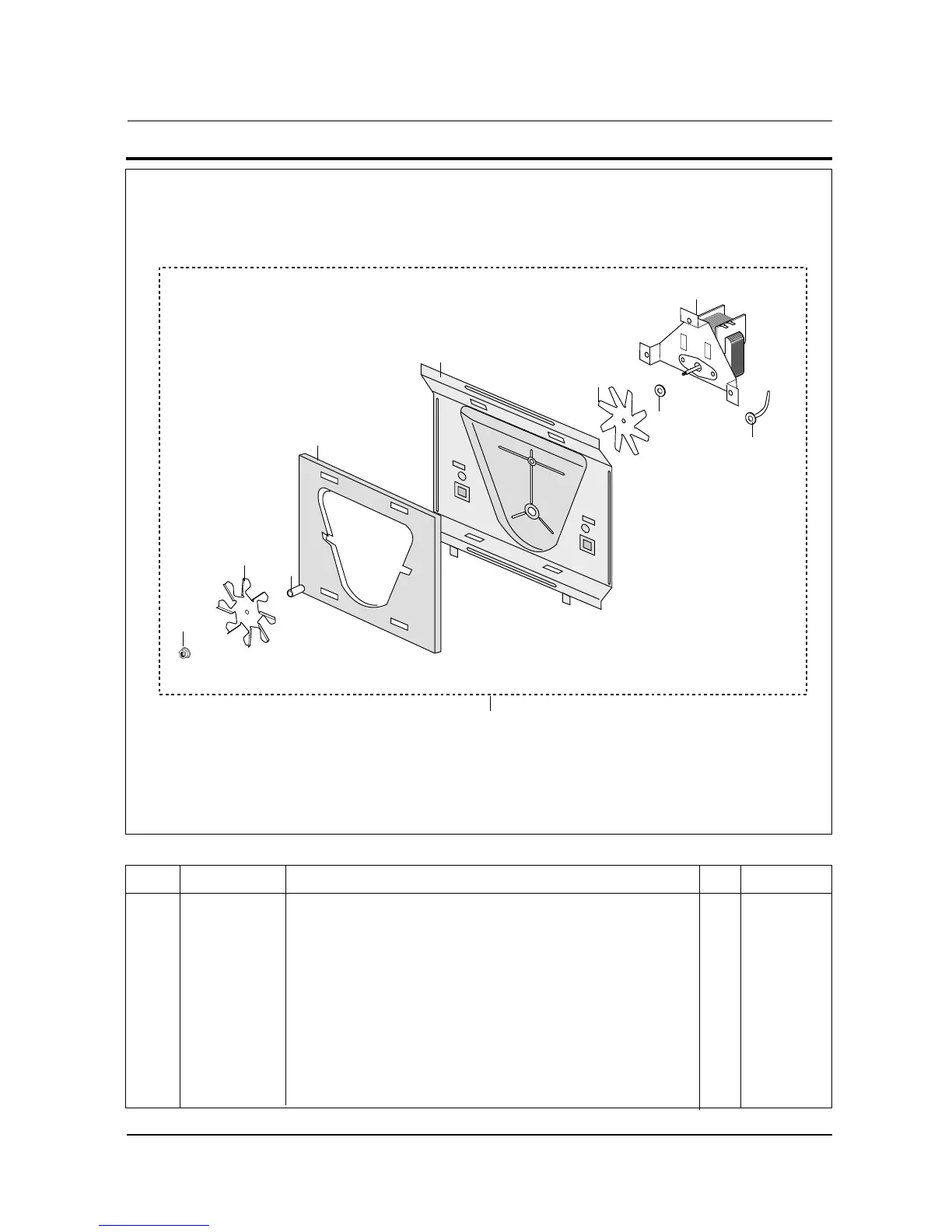

7-5 Exploded View & Parts List - Casing Parts
Ref. No. Parts No. Description/Specification Q'ty Remarks
1 DE60-30016B NUT-FLANGE;M4 MSWR10 FEFN 1 ¡
2 DE31-30011A FAN-CONVECTION;ALSTAR T0.6 PI109 RE-1300 1 ¡
3 DE72-30016A BUSH- MOTOR;MSWR3 D5.6 L12.3 RE-1300 1 ¡
4 DE62-90045A ADIABATIC-CASING;T5 W256 L250 RE-1300 1 ¡
5 DE61-50324A BRACKET-CASING;ALSTAR T0.6 W265 L265 RE-1300 1 ¡
6 DE31-90019A BLADE-FAN;SECC T0.6 1 ¡
7 DE60-40026A WASHER-PLAIN;ID5.5 OD12 T1.0 SBC1 1
8 DE31-10081A MOTOR-CONVECTION;AMM90-003AUEA 230V0.3A MIN2800RPM 1
9 DE65-20012A CLAMP-CORD;DALC-2-1SILICIN 1
10 DE92-90078A ASSY-CASING;RE-1300 230V EUROPE 1
1
10
2
3
4
5
6
7
8
9
Exploded Views and Parts List
