Installation
Installation
English30
STEP 11 Securing
1. Check the parts on the sink to which the drain hose will be connected.
2. There are several ways to insert the drain hose into the drain hose connector of the
sink, as shown in the following gures. You must connect the drain hose in accordance
with the water pipe installation regulations in your region.

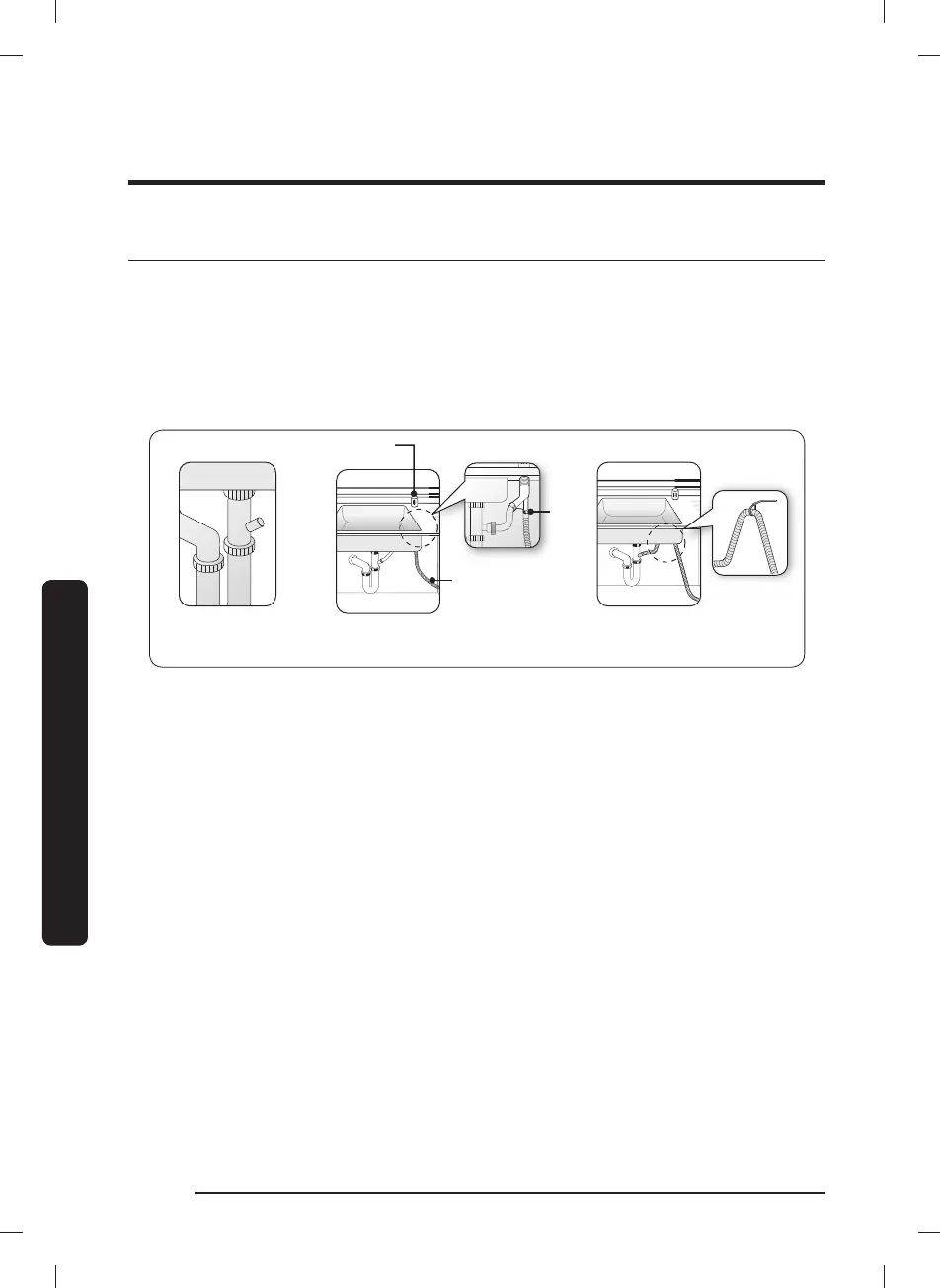

Figure 8
Case 1. Without disposal
Air gap
Hose clamp
Drain
hose
Without disposal With an air gap/without disposal Without an air gap
(See Figure 10.)
DW5000C_DW80CB507012AA_DD68-00260A-00_EN.indd 30DW5000C_DW80CB507012AA_DD68-00260A-00_EN.indd 30 2023-05-03 11:50:072023-05-03 11:50:07
