05 CONNECTING TO A TV
Connecting the TV that supports HDMI ARC (Audio Return Channel)
CAUTION
• When both the HDMI cable and optical cable are connected, the HDMI signal is received rst.
• To connect the HDMI cable between the TV and Soundbar, be sure to connect the terminals
marked ARC. Otherwise, the TV sound may not be output.
• The recommended cable is an HDMI cable certied by HDMI.org.
HDMI IN
(eARC)
DIGITAL
AUDIO IN
(OPTICAL)
HDMI
(eARC)
Connect to the HDMI IN (ARC) or
(eARC) port of your TV.
HDMI Cable
Bottom of the
Soundbar
Connect to the HDMI (eARC) port of
the Soundbar main unit.
Top of the Soundbar
LED
Indicator
White On -> Off
“TV ARC” or “eARC”

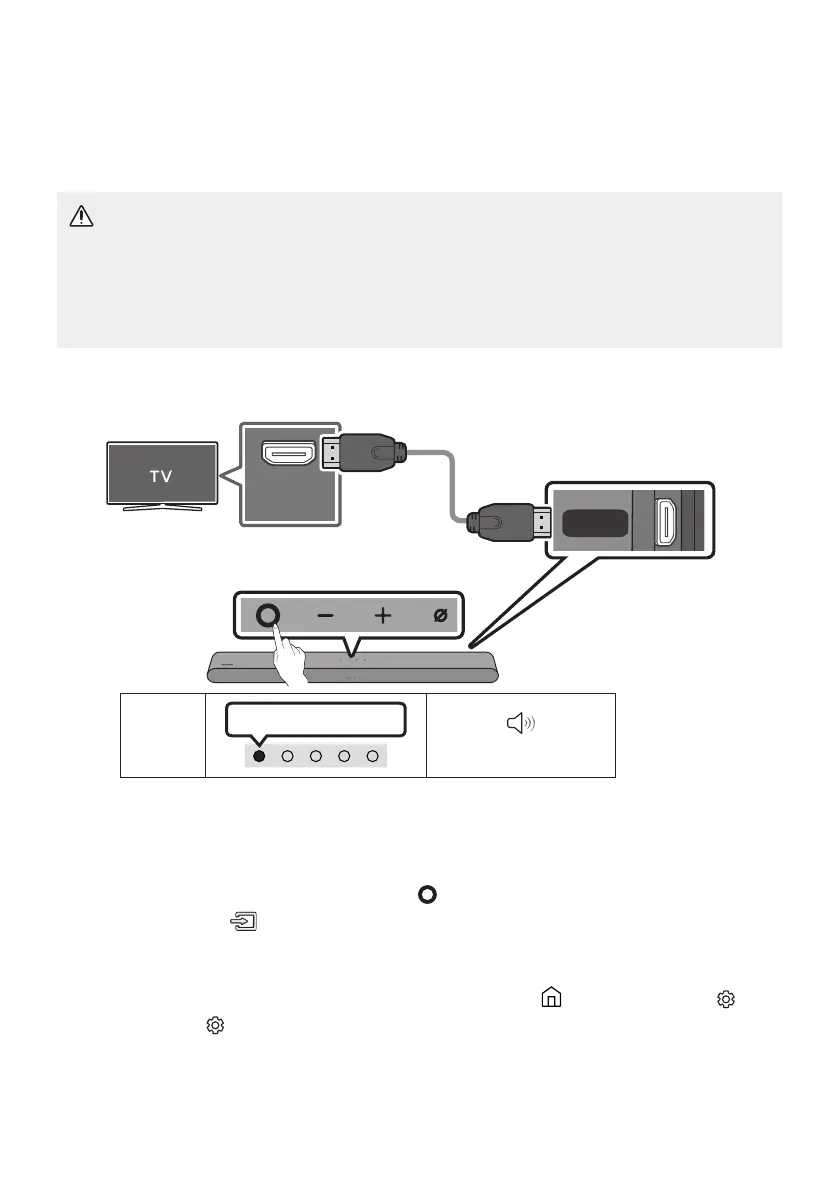

1. With the Soundbar and TV turned off, connect the HDMI cable as shown in the gure.
2. Turn on the Soundbar and TV.
3. TV sound is output from the Soundbar.
• When the TV sound is not output, press the (Multi Function) button at the top of the
Soundbar or the (Source) button on the remote control to select the “TV ARC” or “eARC”
mode.
• To connect with eARC, the eARC function in the TV menu should be set to On. Refer to the TV
user manual for details on setting. (e.g. Samsung TV : Home ( ) → Menu → Settings ( ) →
All Settings ( )
→ Sound → Expert Settings → HDMI-eARC Mode (Auto))
• When the sound is not output, check the HDMI Cable connection again.
• Use the volume buttons on the TV’s remote control to change the volume on the Soundbar.
