Samsung HW-S61T User Manual

ENG - 23
Method 2. Connecting using an Optical Cable
Pre-connection Checklist
• When both the HDMI cable and optical cable are connected, the HDMI signal is received rst.
• When you use an optical cable and the terminals have covers, be sure to remove the covers.
LED
Indicator
White On -> Off
“Digital Audio In”
OPTICAL OUT
SERVICE DC 19V
HDMI OUT
(TV-ARC)
DIGITAL AUDIO IN
(OPTICAL)
Bottom of the Soundbar
Optical Cable
(not supplied)
Top of the Soundbar

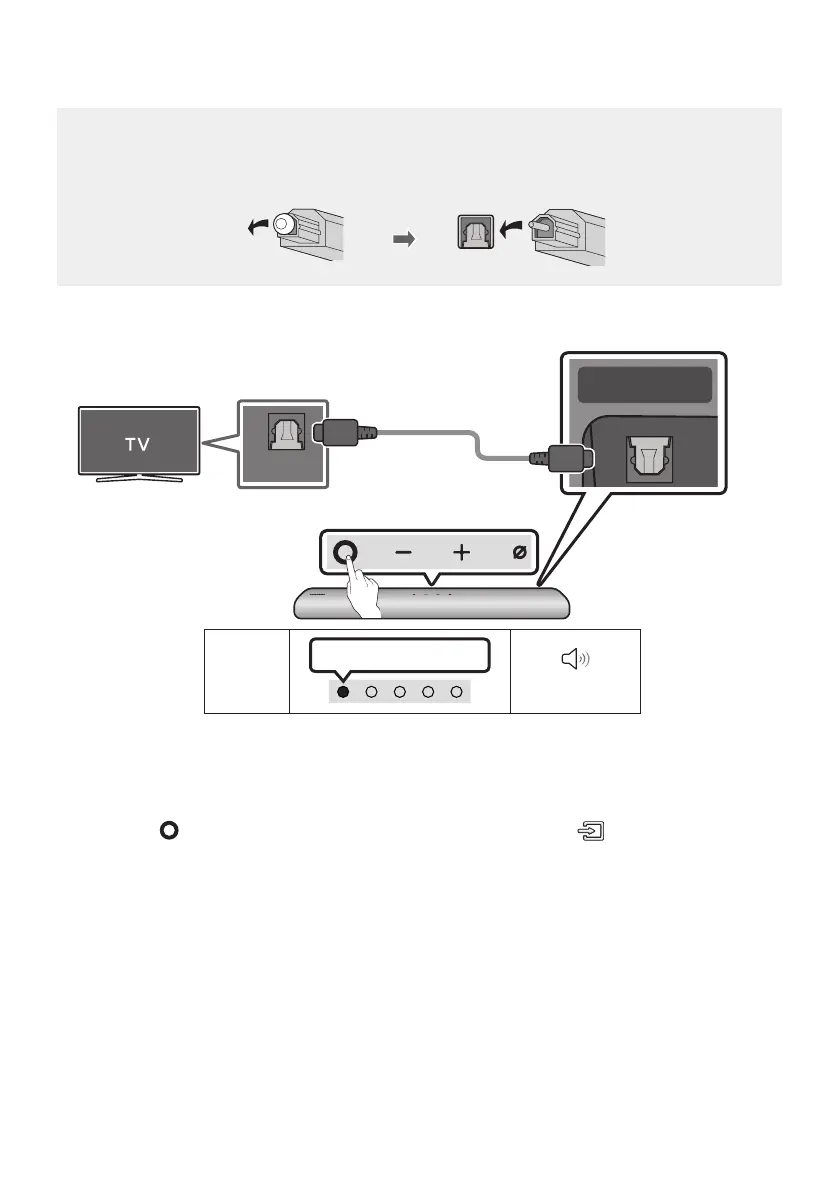

1. With the TV and Soundbar turned off, connect the DIGITAL AUDIO IN (OPTICAL) port on the
Soundbar and the OPTICAL output port on the TV with the optical cable, as shown in the gure.
2. Turn on the Soundbar and TV.
3. Press the (Multi Function) button at the top of the Soundbar or the (Source) button on the
remote control and then select the “Digital Audio In” mode. Then the announcement, “Digital
Audio In” is output.
4. The TV sound is output from the Soundbar.

Samsung HW-S61T Specifications

General

Audio decoders	Dolby Digital 5.1
RMS rated power	180 W
Audio output channels	4.0 channels
Audio Return Channel (ARC)	Yes
Soundbar speaker RMS power	- W
Connectivity technology	Wired & Wireless
Subwoofer location	Built-in
Product color	Gray
TV stand usage	-
Audio formats supported	AAC, AIFF, ALAC, FLAC, MP3, OGG, WAV
Number of products included	1 pc(s)
Package depth	217 mm
Package width	1018 mm
Package height	135 mm
Package weight	5300 g
Soundbar power consumption	23 W
Power consumption (standby)	0.45 W

Weight and Dimensions

Depth	125 mm
Width	764 mm
Height	68 mm
Soundbar weight	2900 g
