4-3
4. Troubleshooting

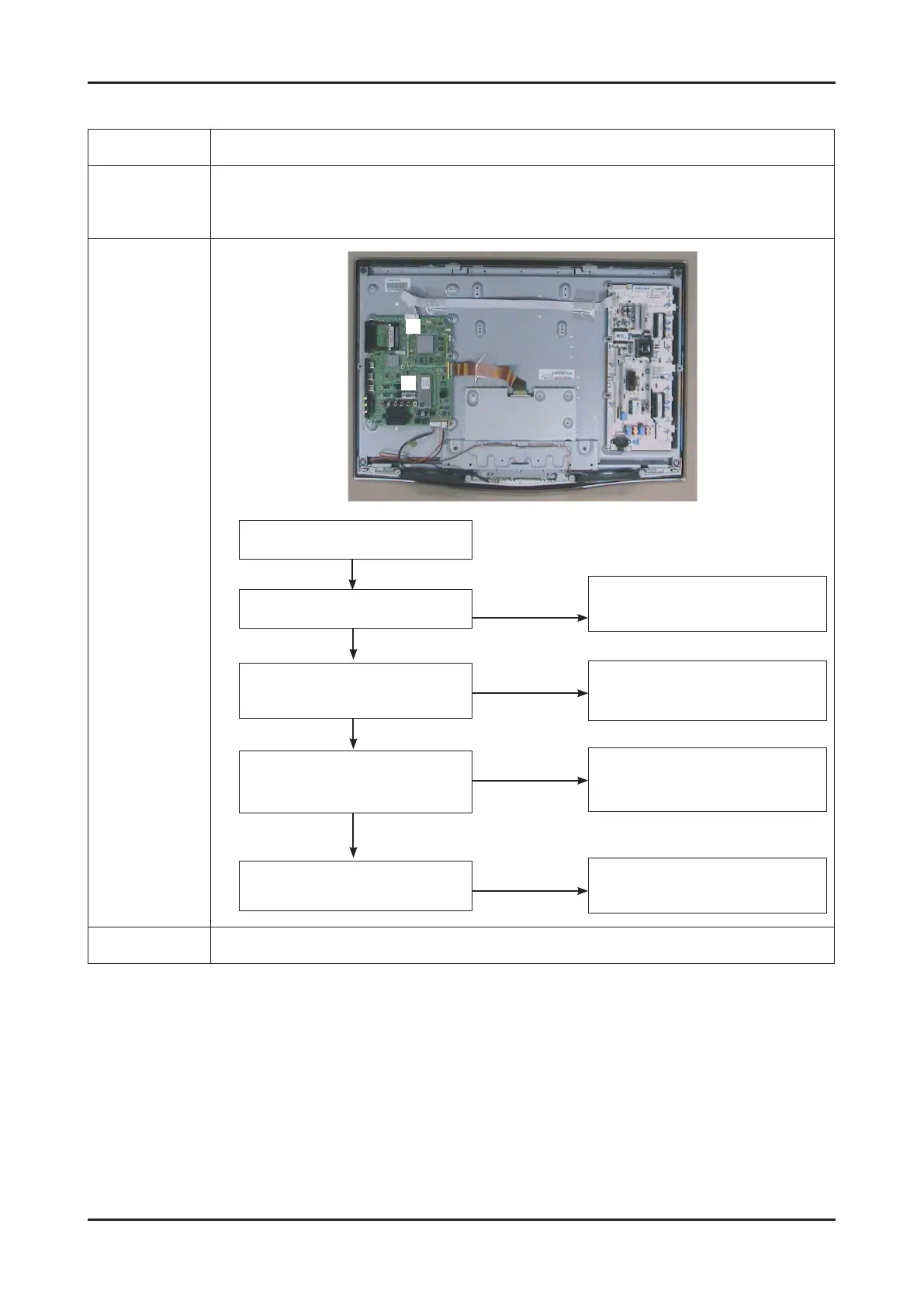

4-1-2. No Video (Analog PC signal)
Symptom Audio is normal but no picture is displayed on the screen.-
Major
checkpoints
Check the PC source
Check the IC6001(SDP84)
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected.
-
-
-
Diagnostics
1
2
No
PC cable. Change a PC
cable. Change a main PCB ass’y.
No
Does the digital data appear at the
output of LVDS (TP7025~TP7038 ,
TP7040~TP7053)?
Power Indicator is off.
Lamp on, no video.
No
Check a PC source and check
the connection of DSUB cable?
Check a IC7001
Change a main PCB ass’y
Yes
Does the signal appear at
R3012,R3011,R3009(R,G,B)?
Please, Contact Tech support.
No
Check a LVDS cable?
Replace a lcd panel?
Yes
Yes
Input a analog PC signal and
connected cable(DPMS).
Yes
1
2
Caution Make sure to disconnect the power before working on the IP board.
