4-5
4. Troubleshooting

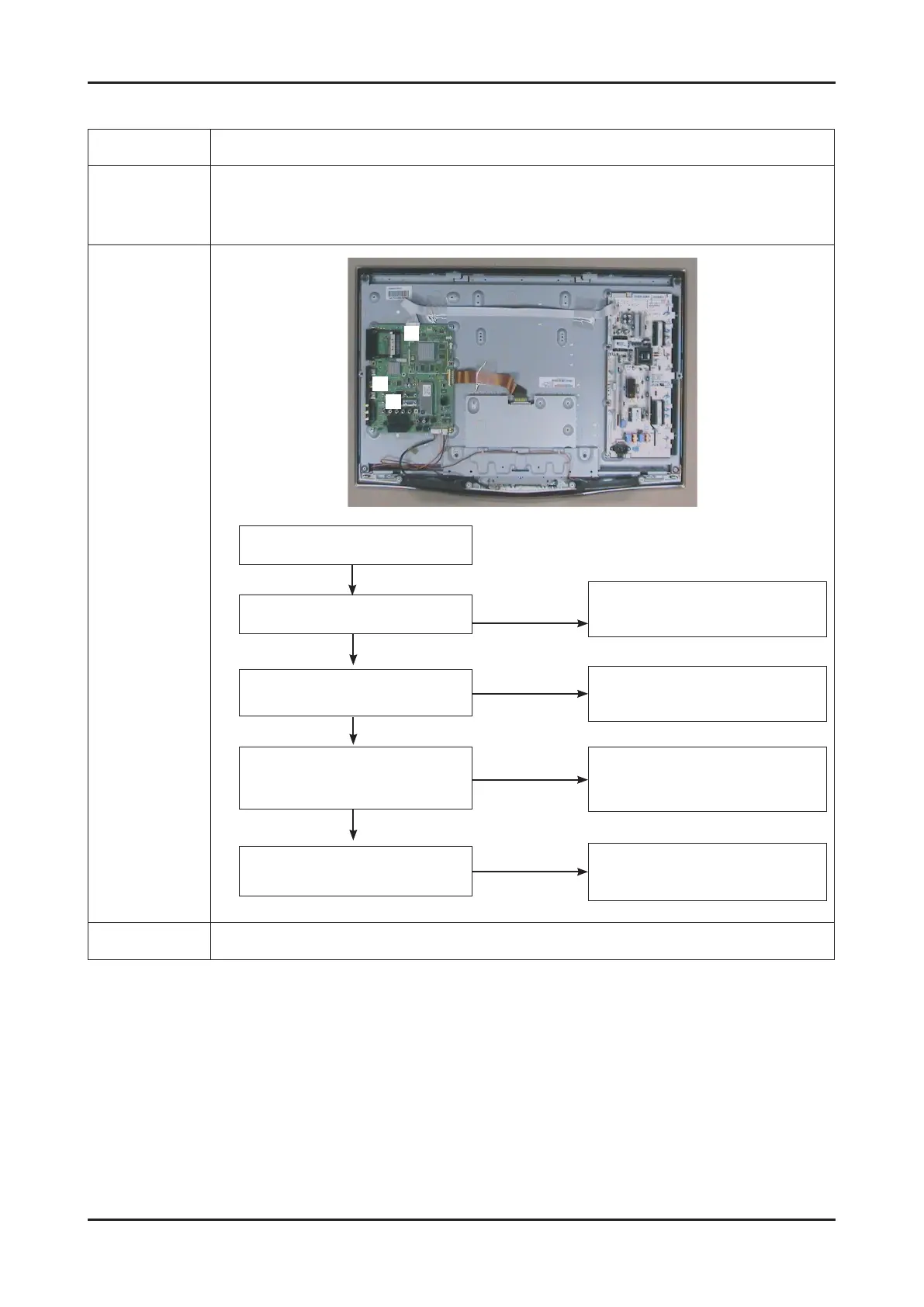

4-1-3. No Video (HDMI - Digital Signal)
Symptom Audio is normal but no picture is displayed on the screen.-
Major
checkpoints
Check the HDMI source
Check the IC3013
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected.
-
-
-
Diagnostics
1
3
2
No
Does the digital data appear at
RA3668~RA3671 around IC3013?
Power Indicator is off.
Lamp on, no video.
No
Check the connection
of HDMI cable?
Check a IC3013
Change a main PCB ass’y.
Check a IC7001
Change a main PCB ass’y.
No
Does the digital data appear at output
of LVDS (TP7025~TP7038 ,
TP7040~TP7053)?
No
Please, Contact Tech support
Check the LVDS cable?
Replace the LCD panel?
Yes
Yes
Input a HDMI cable.
Yes
Yes
2
3
1
Caution Make sure to disconnect the power before working on the IP board.
To Next Page
