4-9
4. Troubleshooting

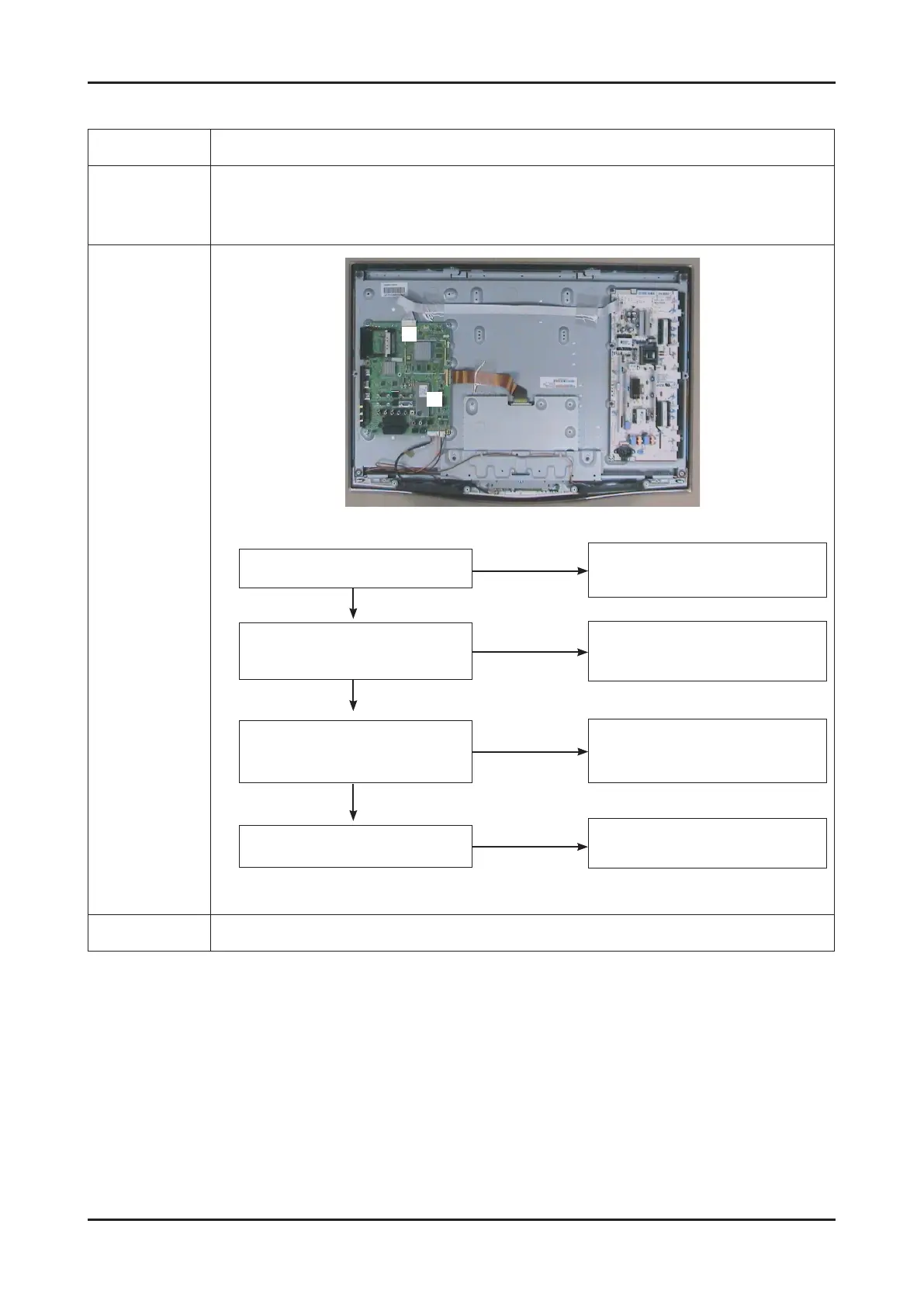

4-1-5. No Picture (Video_CVBS)
Symptom Audio is normal but no picture is displayed on the screen.-
Major
checkpoints
Check the Video Source
Check the IC6002, IC6001(SDP84), IC7001
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected.
-
-
-
Diagnostics
1
2
No
Check a connection harness.
No
Power Indicator is off.
Lamp on, no picture.
Yes
Does the signal appear at
C6852,C6853,C6854?
No
Please, Contact Tech support.
Check a LVDS cable?
Replace lcd panel?
Yes
Check a A/V cable and video signal.
Yes
1
2
Does the digital data appear at the
output of LVDS (TP7025~TP7038 ,
TP7040~TP7053)?
No
Check a IC7001
Change a main PCB ass’y
Caution Make sure to disconnect the power before working on the IP board.
To Next Page
