2-2. MJC : Motion Judder Cancellation (FRC)
Difference of FRC Board
FRC-S (SAMSUNG FRC IC : SDP73), FRC-M (MICRONAS FRC IC : FRC9459M)
If you want substitute each other, must change all lower three items.
FRC-S FRC-M
1. Main MICOM S/W Program T-PONPEUMD-xxxx T-PONFMPEUMD-xxxx
2. PCB BN41-00918A BN41-00944A
3. LVDS Cable BN39-00977B
BN39-00956B
BN39-00957A
BN39-00986A
BN39-00987A
BN39-00985A

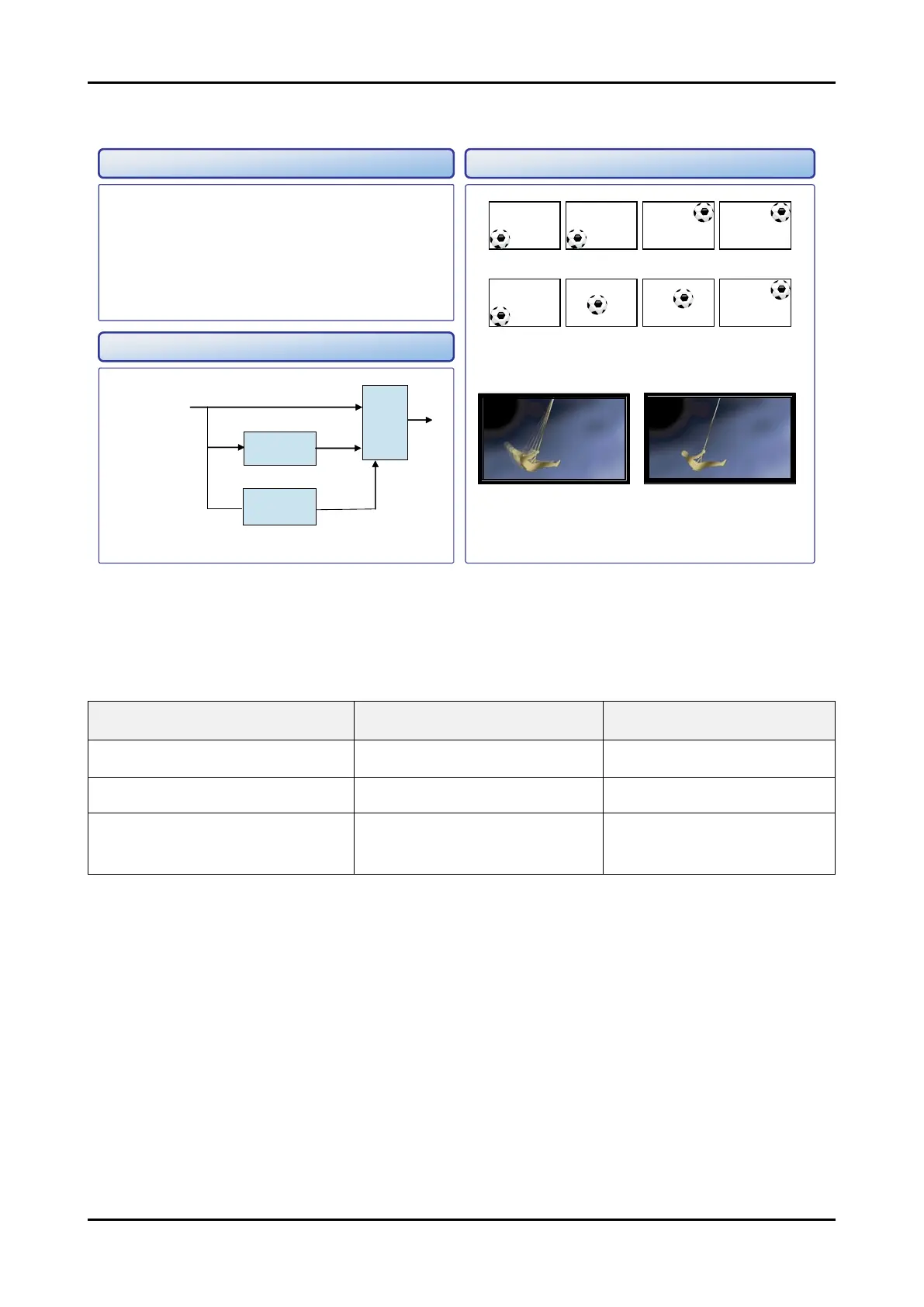

<Motion Judder>
<Motion Judder Cancellation>
• Motion Judder cancellation for HD film image.
• Adaptive Recursive Search (ARS)
- Implementation IPC/MJC at same time
- Search Range
Horizontal : ± ±
72 Pixel, Vertical :
12 Line
OFF ON
Technology Example
Block Diagram
DTV Signal
Film
Detection
ME
(ARS)
IPC
MJC
<Motion Judder>
<Motion Judder Cancellation>
.
