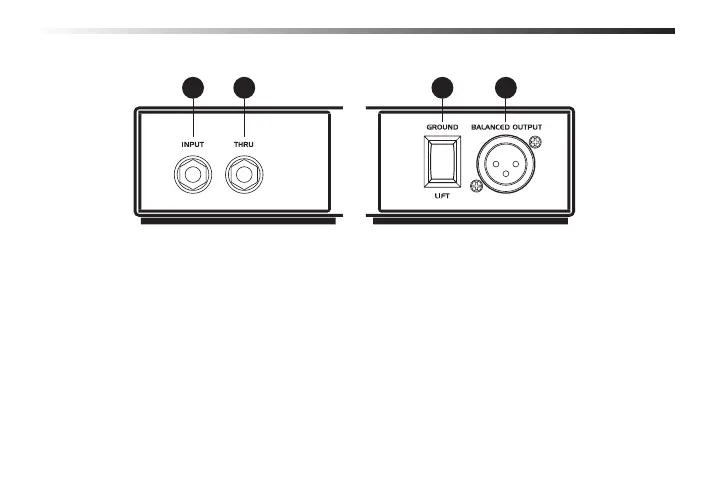

Callouts

1 2

3 4

1. INPUT – 1/4” hi-Z input jack for connecting for instruments or line level signals.

2. THRU – 1/4” output for passing the input signal through to a stage ampliﬁer or monitor system.

3. GROUND LIFT – When the switch is engaged, the input ground (pin-1) is disconnected.

4. BALANCED OUTPUT – Male XLR low-Z connector.
