**** MM-B3 Parts List ****
AH38-10001A WIRE-LEAD;1007#22,1500MM
AH42-20001Q ANT LOOP;-,KS980214-01,18.5uH,CONNECTOR
AH59-01086A DECK-CASSETTE;CMAL5Z217A,MM-B3,-,-,DC12V
AH81-00579E A/S PART-SPEAKER SYSTEM ASS’Y;MM-B3 (EXP
AH81-00569G A/S PART-SPEAKER L ASS’Y;MM-B3,PS B3H,
AH81-00570G A/S PART-SPEAKER R ASS’Y;MM-B3,PS B3H,
AH59-00043F REMOCON-ASSY;-,-,-,22KEY,MQ-N4,-
AH81-00610K A/S PART-TRANS POWER;0326-46600-71,230V,
AH81-00616W A/S PART-AC CORD;MM-L2,0349-30005-94,KKJ
AH81-00905M A/S PART-CD PACK ASS’Y;0001-0MMB5-04,GIH
AH81-00551P A/S PART- CDP ASS’Y;0001-0MML4-06,CD-COM
ZD301 0403-000344 DIODE-ZENER;UZ3.9B,3.9V,3.7-4.1V,500mW,D
Q302 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92,
Q101 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23,
Q301 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
WIC201 0904-001524 IC-DSP;5L9290,-,QFP,48P,472MIL,16.934
WIC301 1003-000179 IC-MOTOR DRIVER;KA9258D,SOP,28P,-,SINGLE
WIC101 1204-001799 IC-ASP;KB9226,LQFP,48P,393MIL,PLASTIC
R804 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R803 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R802 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R801 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JW10 2001-000456 R-CARBON;2.2ohm,5%,1/4W,AA,TP,2.4x6.4mm
R301 2001-001096 R-CARBON(S);2.2ohm,5%,1/2W,AA,TP,2.4x6.4
J30 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J29 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J28 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J27 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J31 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J32 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J33 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J34 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J19 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J20 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J21 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J22 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J26 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J25 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J24 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J23 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J5 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J4 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J3 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J2 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J6 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J7 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J8 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J9 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J17 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J1 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J10 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J11 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J12 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J16 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J15 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J14 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J13 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R507R 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R507L 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R271 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R213 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R212 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R211 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R210 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R209 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R110 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R116 2007-000093 R-CHIP;20Kohm,5%,1/16W,DA,TP,1608
R200 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R129 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R123 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R139 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
R126 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
R104 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
R101 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
R102 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
R103 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
R114 2007-000100 R-CHIP;68Kohm,5%,1/16W,DA,TP,1608
R128A 2007-000101 R-CHIP;82Kohm,5%,1/16W,DA,TP,1608
R127 2007-000101 R-CHIP;82Kohm,5%,1/16W,DA,TP,1608
R120 2007-000101 R-CHIP;82Kohm,5%,1/16W,DA,TP,1608
R119 2007-000101 R-CHIP;82Kohm,5%,1/16W,DA,TP,1608
R506R 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R506L 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R125 2007-000103 R-CHIP;120Kohm,5%,1/16W,DA,TP,1608
R124 2007-000103 R-CHIP;120Kohm,5%,1/16W,DA,TP,1608
R118 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
R202 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
R128 2007-000129 R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R113 2007-000132 R-CHIP;180Kohm,5%,1/16W,DA,TP,1608
R133 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R132 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R207 2007-000309 R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R121 2007-000455 R-CHIP;18Kohm,1%,1/16W,DA,TP,1608
R115 2007-001179 R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608
R112 2007-001196 R-CHIP;820Kohm,5%,1/16W,DA,TP,1608
R107 2007-001216 R-CHIP;82OHM,5%,1/10W,DA,TP,2012
R108 2007-001216 R-CHIP;82OHM,5%,1/10W,DA,TP,2012
C503R 2203-000048 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608
C503L 2203-000048 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608
C209 2203-000048 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608
C117 2203-000048 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608
C102 2203-000048 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608
C121 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608
C211 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C205 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C204 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C132A 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C115 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C129 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C130 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C131 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C218 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C304 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C305 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C505 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C216 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C103 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C134 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C207 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C213 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C113 2203-000280 C-CERAMIC,CHIP;0.01NF,0.5PF,50V,C0G,TP,1
C126 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C139 2203-000592 C-CERAMIC,CHIP;0.22NF,5%,50V,C0G,TP,1608
C104 2203-000667 C-CERAMIC,CHIP;27nF,10%,16V,X7R,TP,1608,
C201 2203-000681 C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C202 2203-000681 C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C118 2203-000800 C-CERAMIC,CHIP;33nF,10%,25V,X7R,TP,1608
C116 2203-000800 C-CERAMIC,CHIP;33nF,10%,25V,X7R,TP,1608
C208 2203-000851 C-CERAMIC,CHIP;0.039NF,5%,50V,C0G,TP,160
C127A 2203-000851 C-CERAMIC,CHIP;0.039NF,5%,50V,C0G,TP,160
C126A 2203-000851 C-CERAMIC,CHIP;0.039NF,5%,50V,C0G,TP,160
C125 2203-000851 C-CERAMIC,CHIP;0.039NF,5%,50V,C0G,TP,160
C114 2203-001103 C-CERAMIC,CHIP;6.8nF,10%,50V,X7R,TP,1608
C111 2203-001103 C-CERAMIC,CHIP;6.8nF,10%,50V,X7R,TP,1608
C245 2203-001140 C-CERAMIC,CHIP;68nF,10%,16V,X7R,TP,1608,
C109 2203-001140 C-CERAMIC,CHIP;68nF,10%,16V,X7R,TP,1608,
C110 2203-001402 C-CERAMIC,CHIP;220nF,+80-20%,16V,Y5V,TP,
C112 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C203 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C127 2203-005194 C-CERAMIC,CHIP;220pF,10%,50V,X7R,TP,1608
C123 2401-000459 C-AL;10uF,20%,35V,GP,TP,5.5x7mm,5mm
C301 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5
C108A 2401-001511 C-AL;47uF,20%,16V,GP,6*7,5MM,TP
C108 2401-001511 C-AL;47uF,20%,16V,GP,6*7,5MM,TP
C215 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C217 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C219 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C303 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C307 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C212 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C101 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C107 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C132 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C133 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C206 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C501R 2401-001917 C-AL;1uF,20%,50V,GP,TP,4x7mm,5mm
C501L 2401-001917 C-AL;1uF,20%,50V,GP,TP,4x7mm,5mm
C114A 2401-001952 C-AL;4.7uF,20%,50V,GP,TP,5x7mm,5mm
L300 2701-000111 INDUCTOR-AXIAL;100uH,10%,2.5x3.4mm
X201 2802-000210 RESONATOR-CERAMIC;16.93MHz,0.5%,BK,10.0x
3409-001078 SWITCH-LEAF;16Vdc,500mA,10gf,SPST
P-CDP AH81-00568K A/S PART-PCB-CD MAIN BOARD;0320-MML44-00
CW105 AH81-00568L A/S PART-CONNECTOR-HEADER;0321-10137-GO,
CW106 AH81-00568M A/S PART-CONNECTOR-HEADER;0321-08012-80,
CW101 AH81-00568N A/S PART-CONNECTOR-HEADER;0321-16021-EO,
AH81-00568P A/S PART-CONNECTOR-CABLE;0321-16085-EO,-
AH81-00568R A/S PART-CD MECHA;0115-6MML4-00,-,P31TG6
AH81-00635J A/S PART-SOH-AA;MM-L2/L4,AJ75-00601F,-,-
Location no. Code no. Description & Specifiation Remarks
Location no. Code no. Description & Specifiation Remarks
Samsung Electronics 3-1

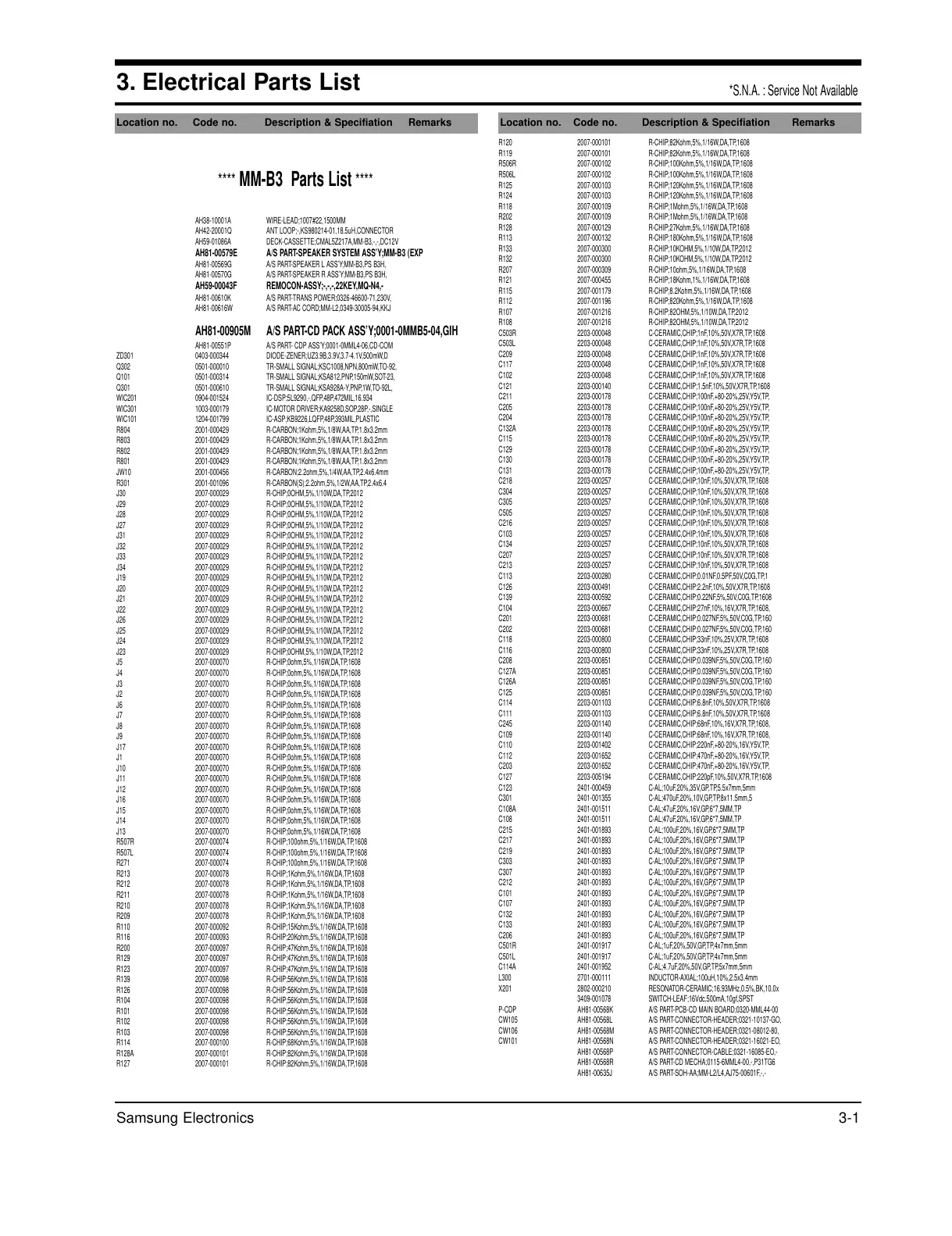

3. Electrical Parts List
*S.N.A. : Service Not Available
