Samsung Electronics 5-1
5. PCB Diagram

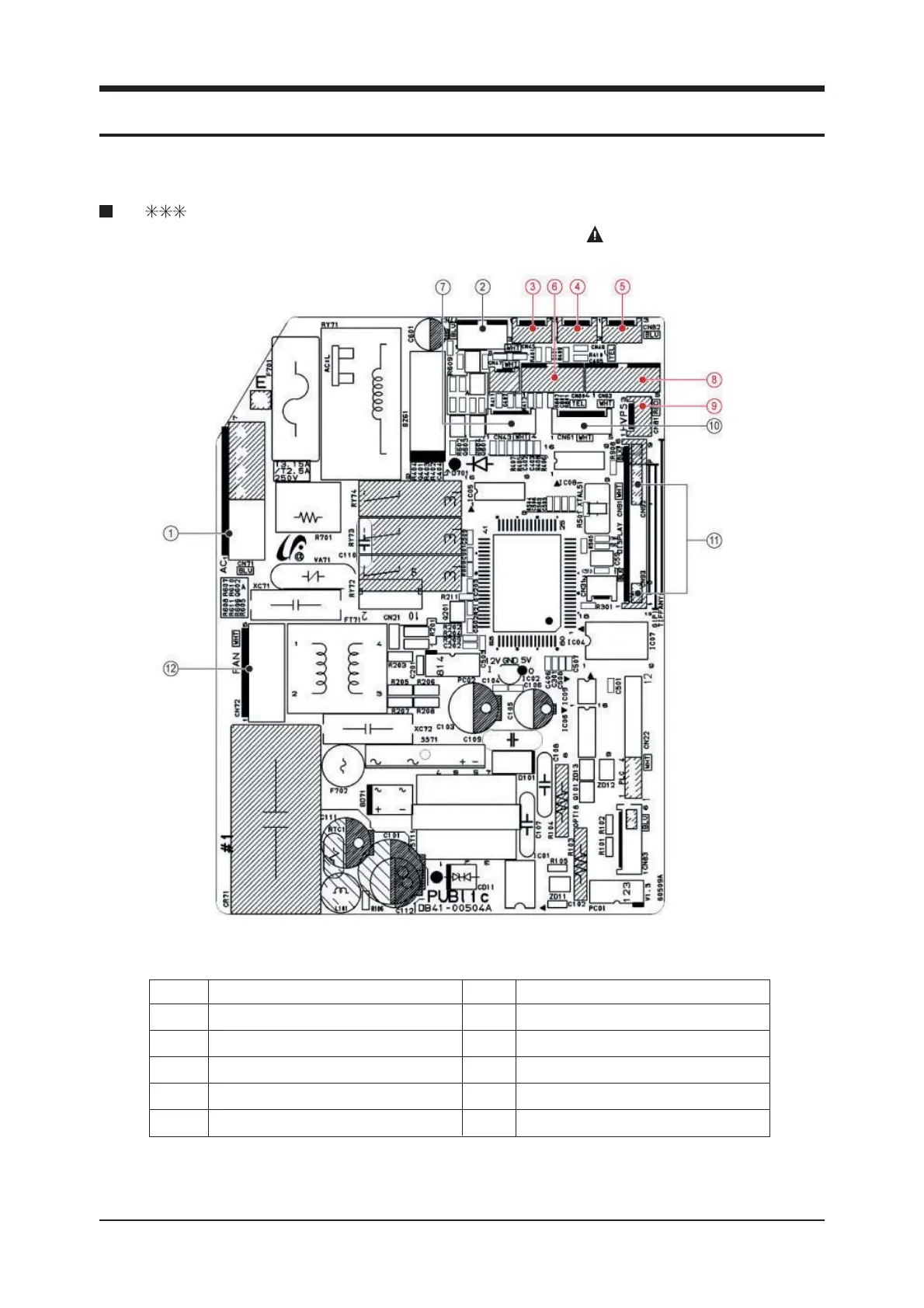

5-1. INDOOR PCB Diagram
MH FNEA (MAIN PCB)
The red number connecter is not used.
1 Power
2 Motor RPM Feedback
3 Remocon Module
4 Humidity Sensor
5 Anions
6 MPI
7 Temperature Sensor
8 Auto Grill
9 HVPS(High voltage Generator)
10 BLADE-H Step Motor
11 Display
12 Indoor Fan Motor
