3-2 Samsung Electronics
3-1 Outdoor Unit

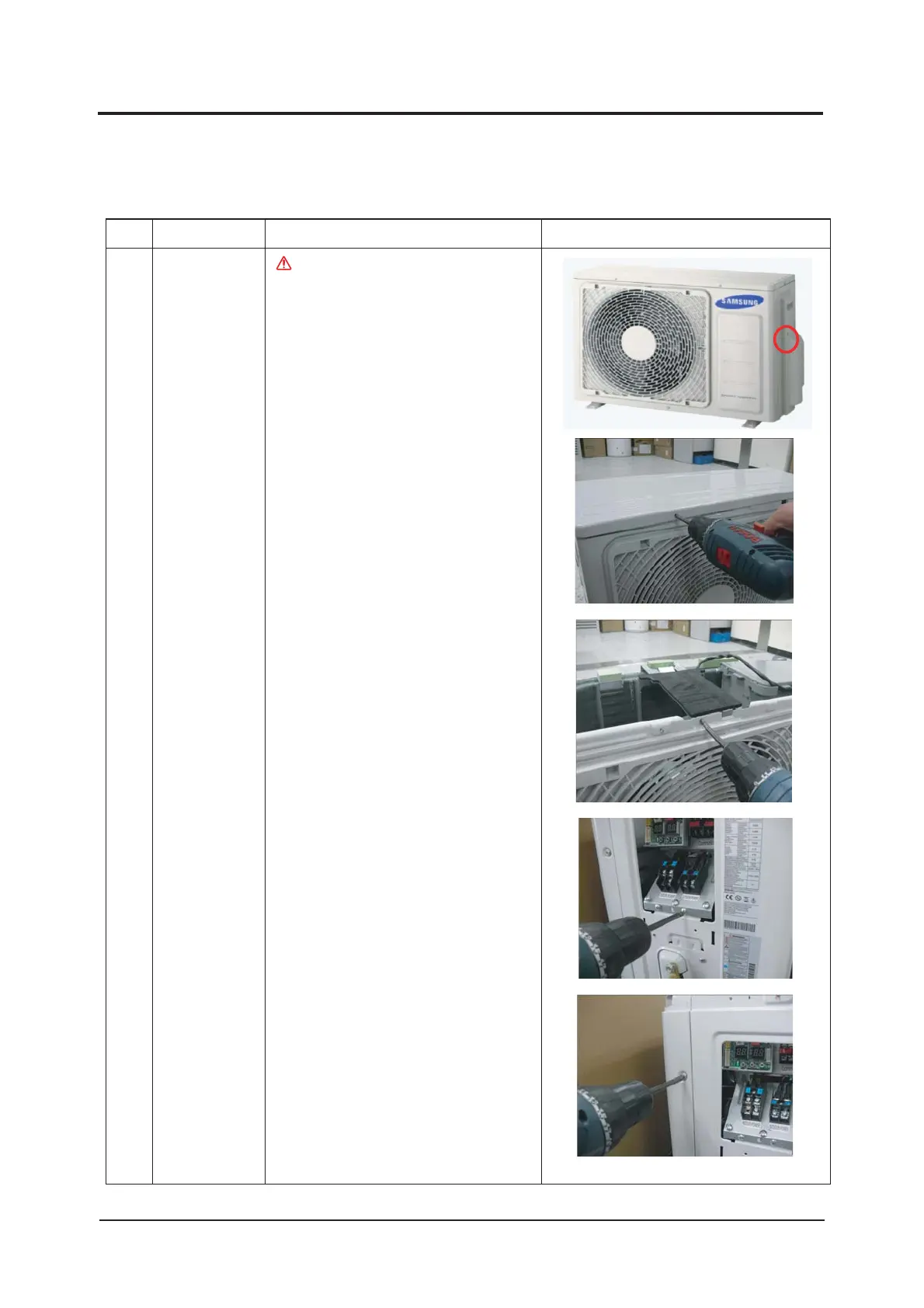

No Parts Procedure Remark
1 Common Work
&
Control Out
1) Loosen 1 fixing screw(CCW)of the
Cover-Side. (Use +Screw Driver.)
2) Loosen each 6 screws(CCW)on cabi
top.
(Use +Screw Driver.)
3) Loosen each 7 screws(CCW)on cabi
front.
4) Loosen 2 screw(CCW)fixed to assemble
Plate Control Out with Cabinet-Side RH.
(Use +Screw Driver.)
5) Loosen 2 fixing screws(CCW)on
Cabinet-Side RH.
(Use +Screw Driver.)
Take care of the electrical shock by contact on the charging parts before the discharge after power off. (If takes approximately
2 minutes to discharge.)
3-1-1 RJ040F2HXEA(B)/RJ050F2HXEA(B)/AJ04 0FCJ2EH/AJ050FCJ2EH
(Use +Screw Driver.)
You must turn off the Power before
disassembly.
To Next Page
