3-8 Samsung Electronics

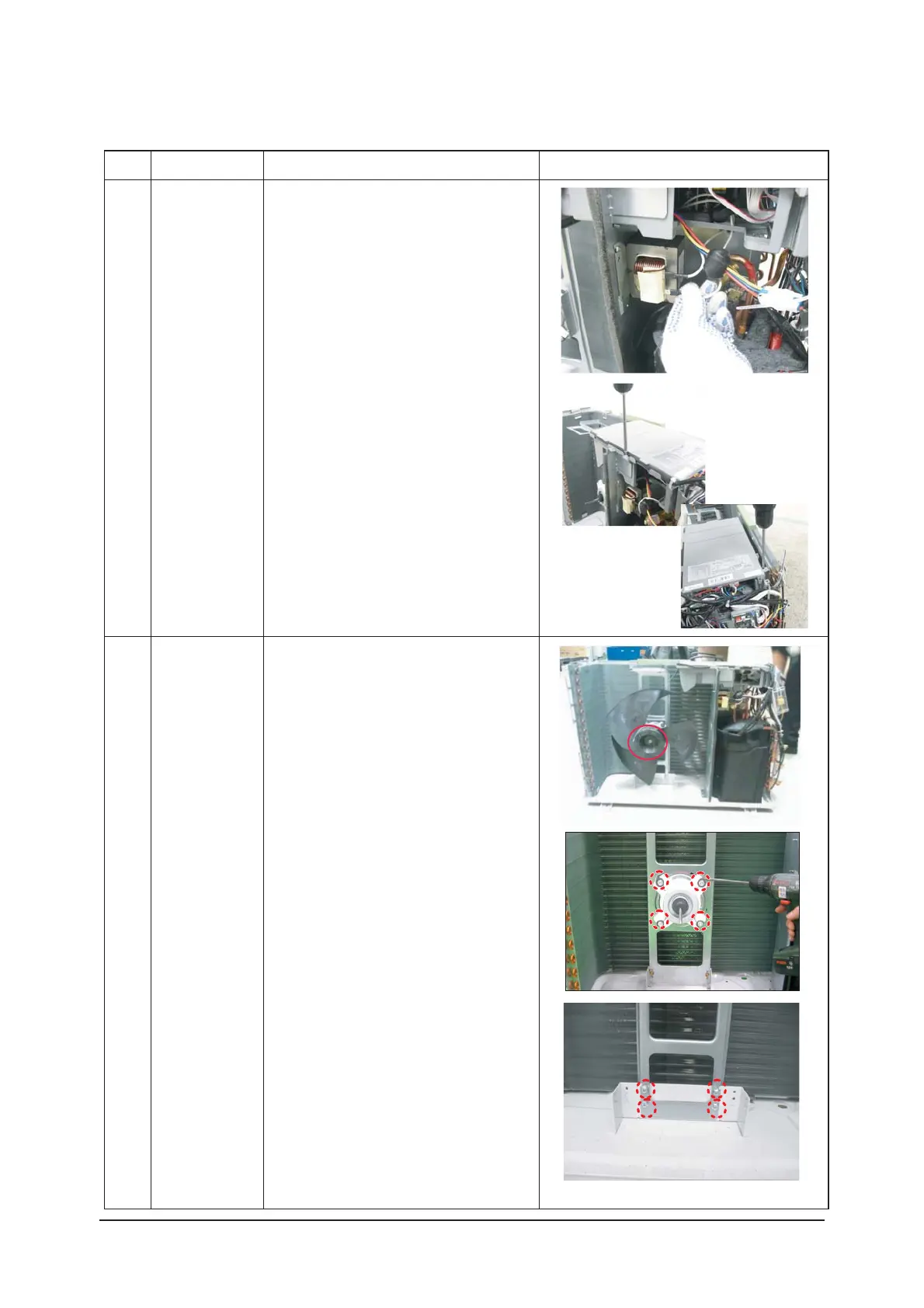

No Parts Procedure Remark
4) Detach 2 Connect Wires from Reactor.
5) Loosen 2 screw(CCW)fixed to assemble
Ass'y Control Out with Partition.
(Use +Screw Driver.)
3
Fan
&
Motor
1) Release the refrigerant at first.
2) Loosen the fixing nut and detach the Fan.
(Use +Screw Driver.)
3) Loosen 4 fixing bolts and detach the
Motor. (Use +Screw Driver.)
4) Loosen 4 fixing bolts and detach the
Bracket Motor. (Use +Screw Driver.)
