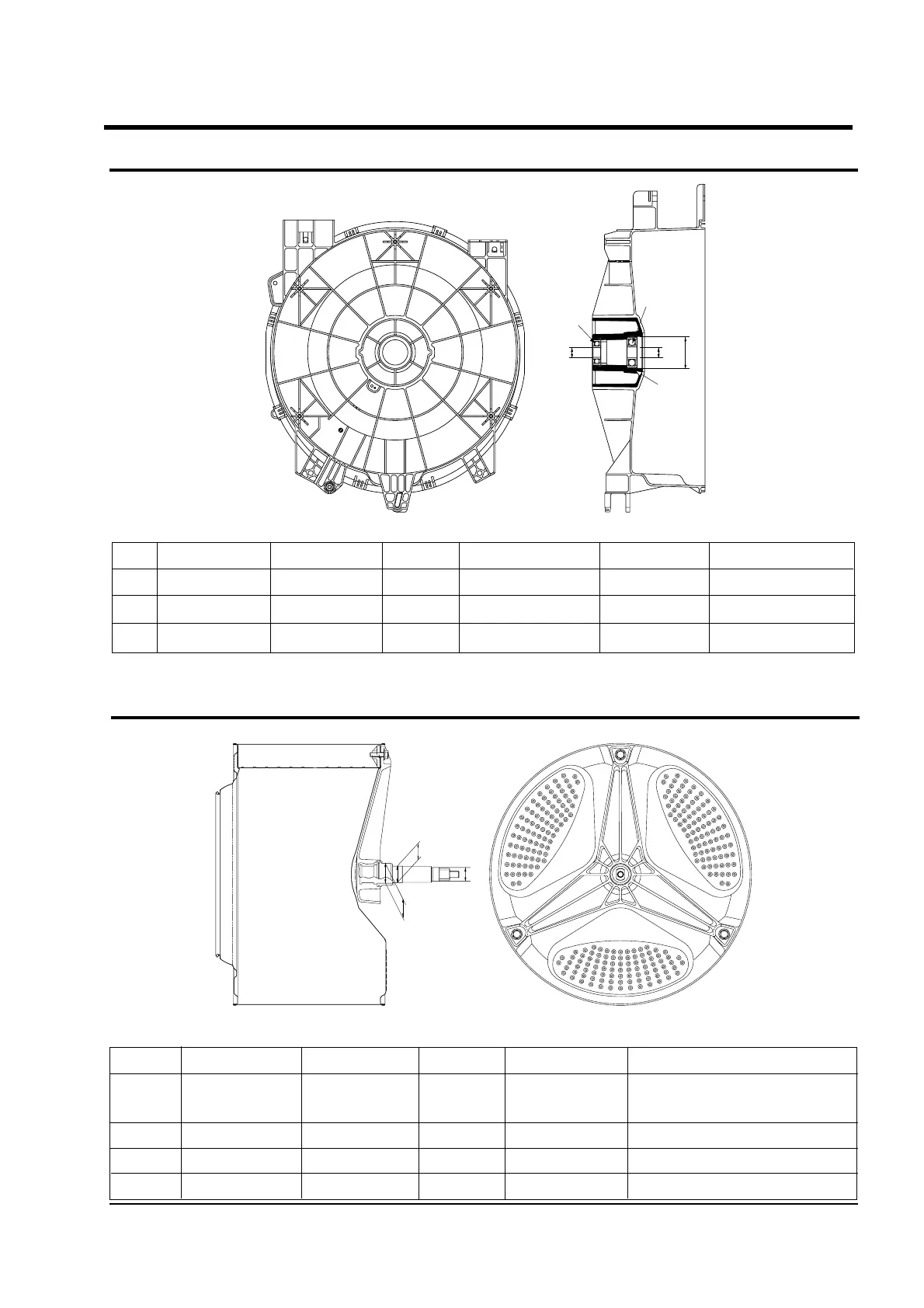

7-5 ASSY- DRUM
7-4 ASSY-TUB BACK
A
C
OIL-SEAL
INNER-BEARING
OUT-BEARING
B
A
C
B
TYPE INNER-BEARING(A) OUT-BEARING(B) OIL-SEAL(C) Assy-Housing Bearing(D) Assy-Tub Back REMARK
I ø 30 ø 25 ø 43.9 DC97-00419A DC97-00214A P1405J
II ø 30 ø 25 ø 43.9 DC97-00125A DC97-00214B P1005J/P1205J
III ø 20 ø 17 ø 24.3 DC97-00215D DC97-00214K P805J
(unit : mm)
(unit : mm)
TYPE (A) (B) (C) CODE-NO. REMARK
I ø 30 ø 25 ø 44.7 DC97-01463A
Lifter type
P1005J/P1205J/P1405J
II ø 30 ø 25 ø 44.7 DC91-12281A P1205J/P1005J
III ø 30 ø 25 ø 44.7 DC97-00785B P1405J
IV ø 20 ø 17 ø 25 DC97-00785A P805J
