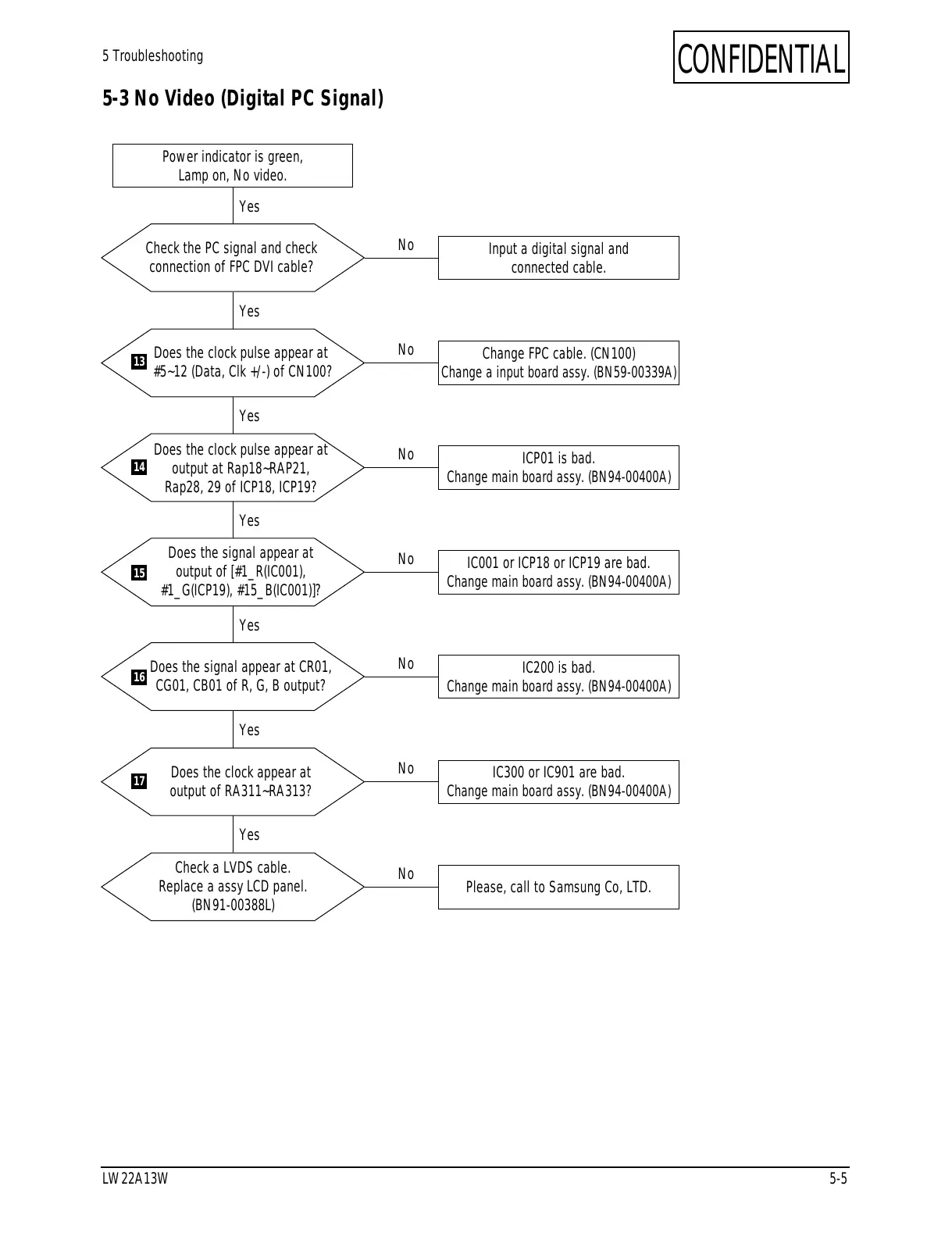

5-3 No Video (Digital PC Signal)
Check the PC signal and check
connection of FPC DVI cable?
Input a digital signal and
connected cable.
Power indicator is green,
Lamp on, No video.
Yes
Yes
No
Does the clock pulse appear at
#5~12 (Data, Clk +/-) of CN100?
Change FPC cable. (CN100)
Change a input board assy. (BN59-00339A)
Yes
No
Does the clock pulse appear at
output at Rap18~RAP21,
Rap28, 29 of ICP18, ICP19?
ICP01 is bad.
Change main board assy. (BN94-00400A)
Yes
No
Does the signal appear at
output of [#1_R(IC001),
#1_G(ICP19), #15_B(IC001)]?
IC001 or ICP18 or ICP19 are bad.
Change main board assy. (BN94-00400A)
Yes
No
Does the signal appear at CR01,
CG01, CB01 of R, G, B output?
IC200 is bad.
Change main board assy. (BN94-00400A)
Yes
No
Does the clock appear at
output of RA311~RA313?
IC300 or IC901 are bad.
Change main board assy. (BN94-00400A)
Yes
No
Check a LVDS cable.
Replace a assy LCD panel.
(BN91-00388L)
Please, call to Samsung Co, LTD.
