2 Product Specifications
2-2 LW22A13W
2-2 Pin Assignments
2-2-1 DVI-I (Analog & Digital)
Ref) DVI-D : Digital only
D-SUB : Analog only
Pin No.
Signal Assignment
Pin No.
Signal Assignment
Pin No.
Signal Assignment
1
2
3
4
5
6
7
8
9
10
RX2-
RX2+
GND
NC
NC
DDC Clock (SCL)
DDC Data (SDA)
Analog Vertical Sync.
RX1-
RX1+
11
12
13
14
15
16
17
18
19
20
GND
NC
NC
DDC Input Power(+5V)
Self laster
Output Signal Connection
RX0-
RX0+
GND
NC
21
22
23
24
C1
C2
C3
C4
NC
GND
RXC-
RXC+
Analog Red
Analog Green
Analog Blue
Analog Horizontal Sync.
12345678
9 10111213141516
17 18 19 20 21 22 23 24
C1 C2
C4
C3

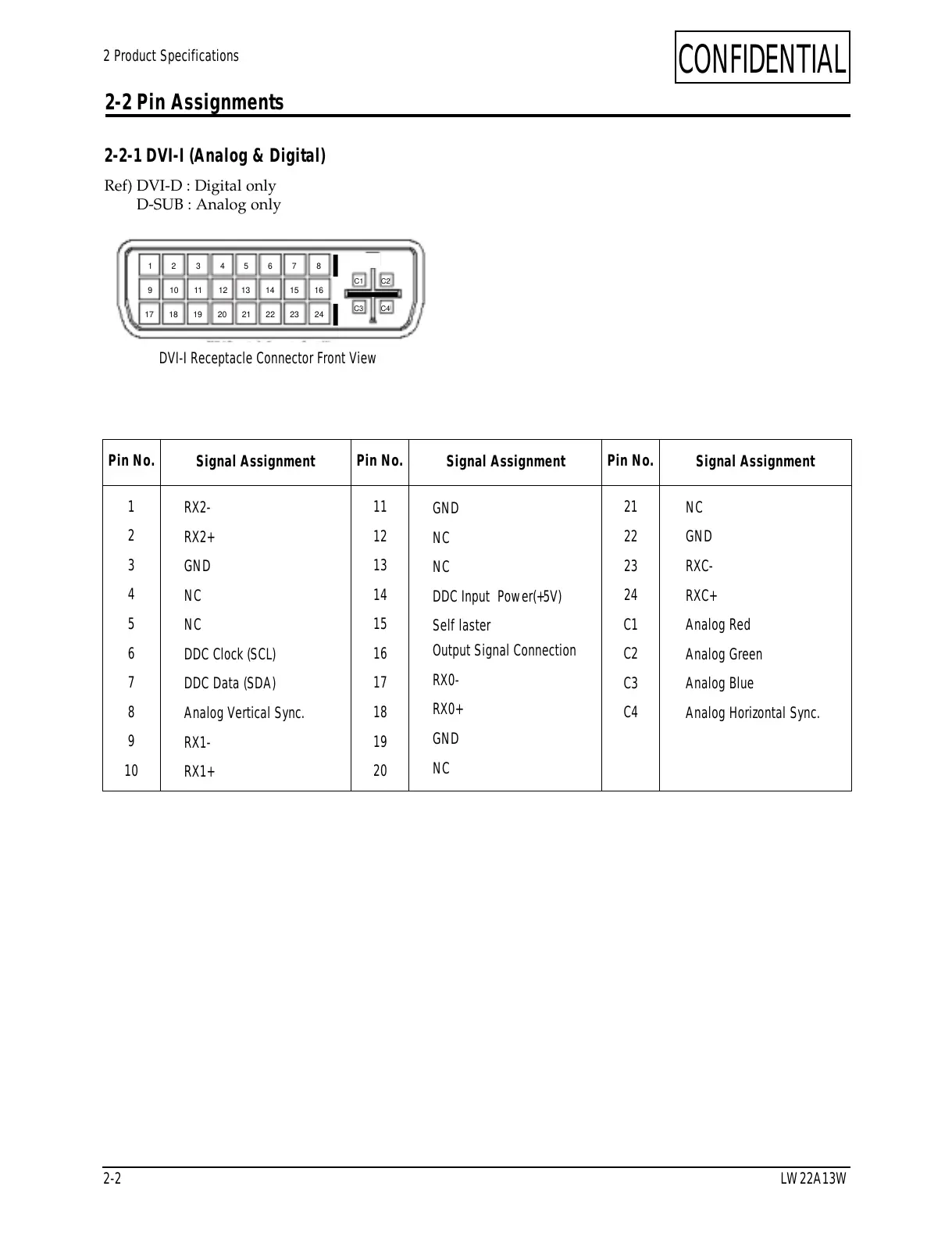

DVI-I Receptacle Connector Front View
