English 19

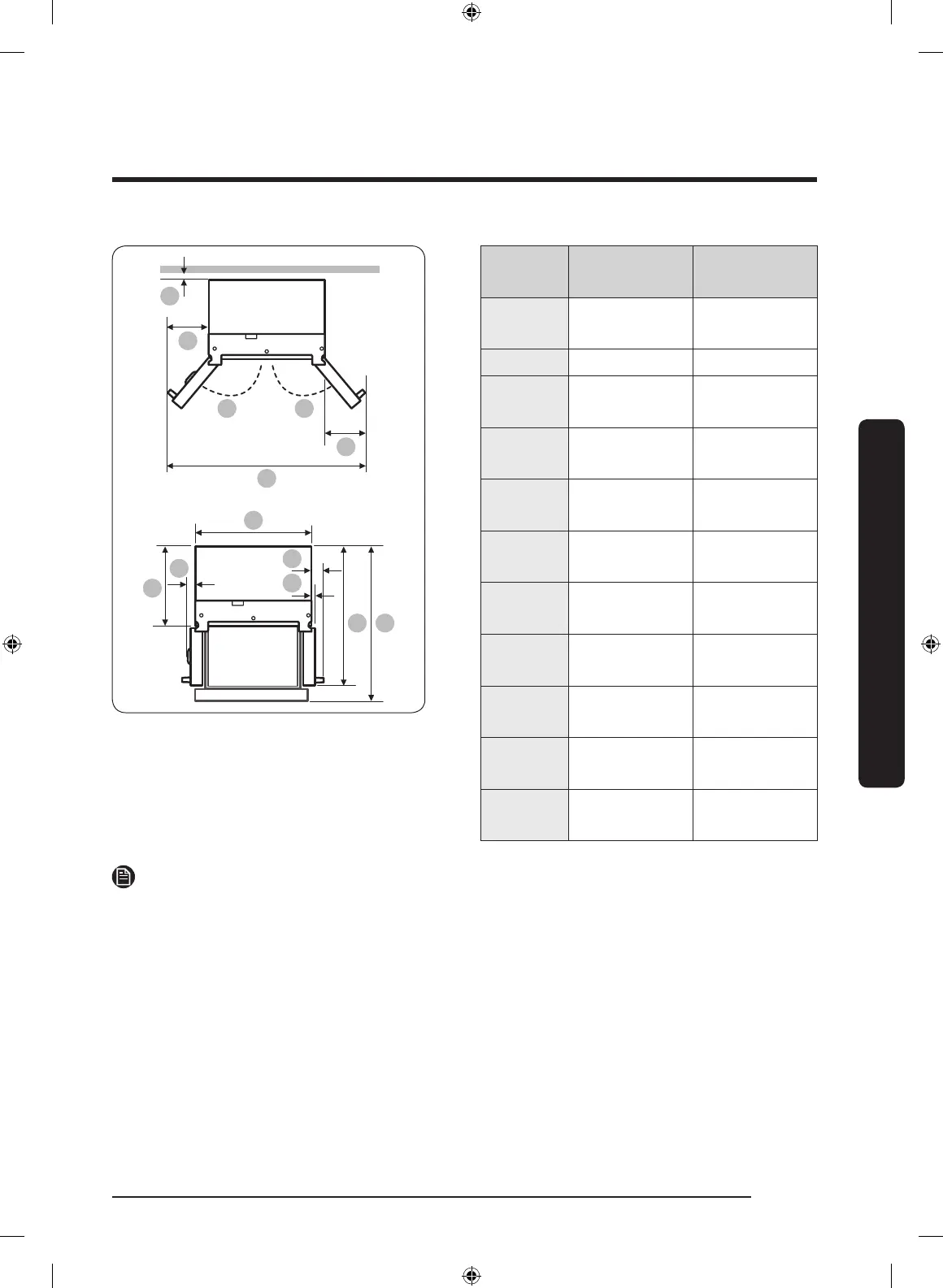

Installation
01
04
04
03
05
1110
06
02 02
08
07
09
Model
RF23M857***
RF23M858***
RF23M859***
01
2"
(50 mm)
2"
(50 mm)
02 135° 135°
03
62”
(1575 mm)
64”
(1624 mm)
04
13
1
/4"
(333.5 mm)
14
1
/8"
(358 mm)
05
35
3
/4"
(908 mm)
35
3
/4"
(908 mm)
06
24"
(610 mm)
24"
(610 mm)
07
2
1
/2"
(64 mm)
2
1
/2"
(64 mm)
08 -
4
1
/8"
(104 mm)
09
1
3
/4"
(45.4 mm)
1
3
/4"
(45.4 mm)
10
43
1
/8"
(1095.5 mm)
43
1
/8"
(1095.5 mm)
11
45"
(1143 mm)
45"
(1143 mm)
NOTE
The measurements in the table above may differ slightly from the actual measurements,
depending on the measuring and rounding method.
