10_ Setting up
Setting up your French Door Refrigerator

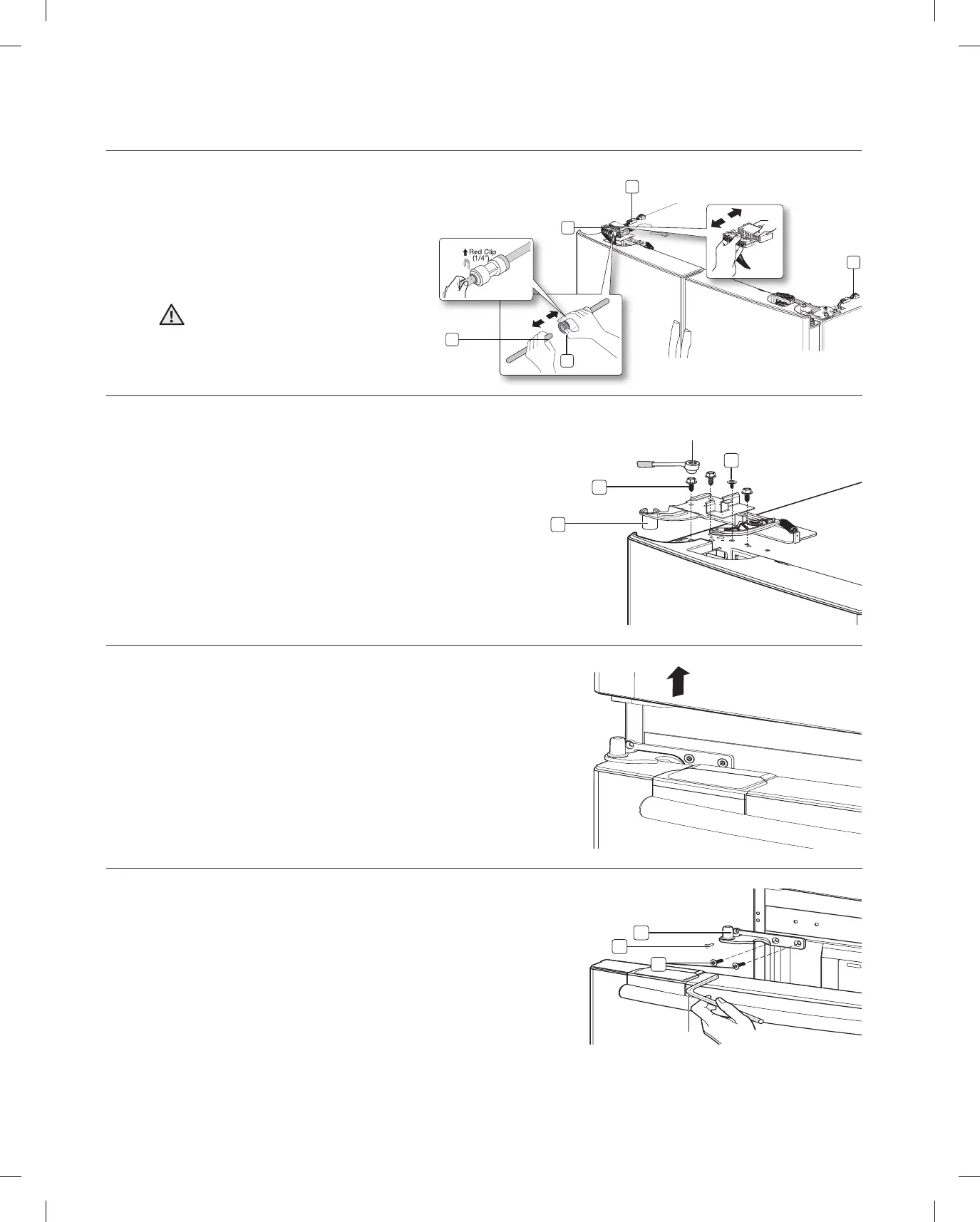

2. Disconnect 2 connectors ( 3 ) at each
side of the top cap and one connector
( 4 ) on the left side door. Remove the
water line ( 5 ) while pressing the dark
gray color part ( 6 ) of the water line
coupler.
3. Remove the 3 hex head bolts ( 7 ) attached to the
upper left and right door hinges with a socket wrench
(7/16”). Remove the ground screw ( 8 ) attached to
the upper left and right door hinges with a philips
screwdriver(+).
Remove the upper left and right door hinges ( 9 ).
4. Lift the door straight up to remove.
5. Remove the screw ( 10 ) attached to the lower left
and right door hinges with a philips screwdriver(+).
Remove the 2 hex head bolts ( 11 ) attached to the
lower left and right door hinges with an allen wrench
(3/16”).
Remove the lower left and right door hinges ( 12 ).
Socket wrench
9
7
8
5
6
4
3
3
12
10
11
Allen wrench
If a red clip is on the coupler, it must
be removed before removing the
tube.
CAUTION
