5. Position the top table ( 2 ) in place. Insert and tighten
the 3 screws into the top table with a philips screw
driver(+). With the doors open, reinsert the cap top
table ( 1 ) and close the doors.
REATTACHING THE REFRIGERATOR DOORS
1
2
3
3
4
5
dispenser door tube
The dispenser door tube ( 5 ) must be fully inserted to the marked
line to prevent water leakage from the dispenser.
CAUTION

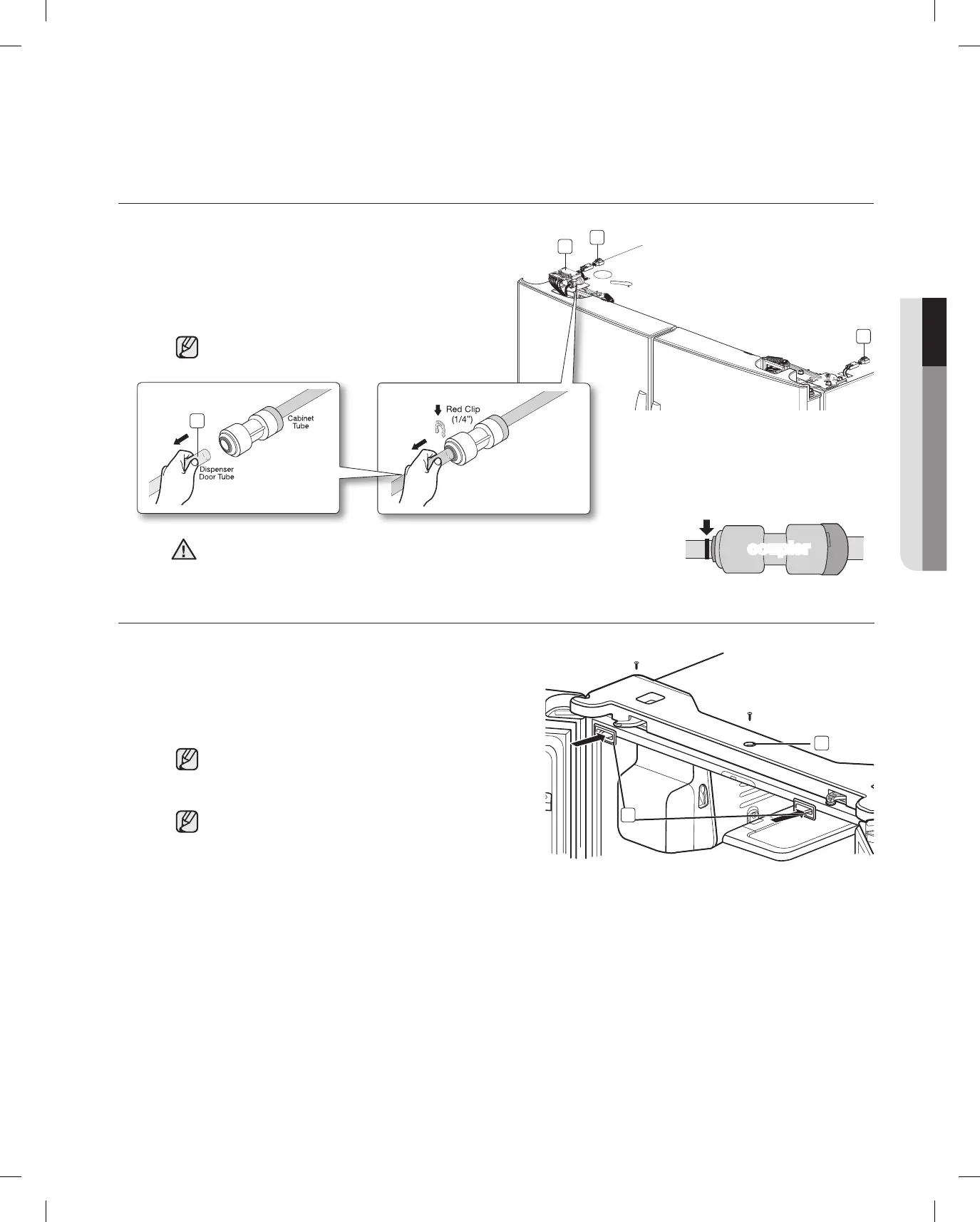

4. Connect the dispenser door tube ( 5 ) and then
insert a clip on the coupler with pulling tube.
Connect the connector ( 4 ) on the left side door
and two connectors ( 3 ) at each side of the top
cap.
The clip is enveloped inside of the top cap.
When reattaching the top table, make sure that
the wires are not pressed or damaged by the
hinge cover.
After assembling, close the doors and check
to see whether the doors have gaps between
gaskets or are tilted. If you see a gap or tilt
please refer to “Adjusting the doors” on page 15.
