Samsung RW33EBSS - Floor Preparation and Ambient Temperature

55mm min.
110
55mm min.
55mm min.
686mm
995.5mm

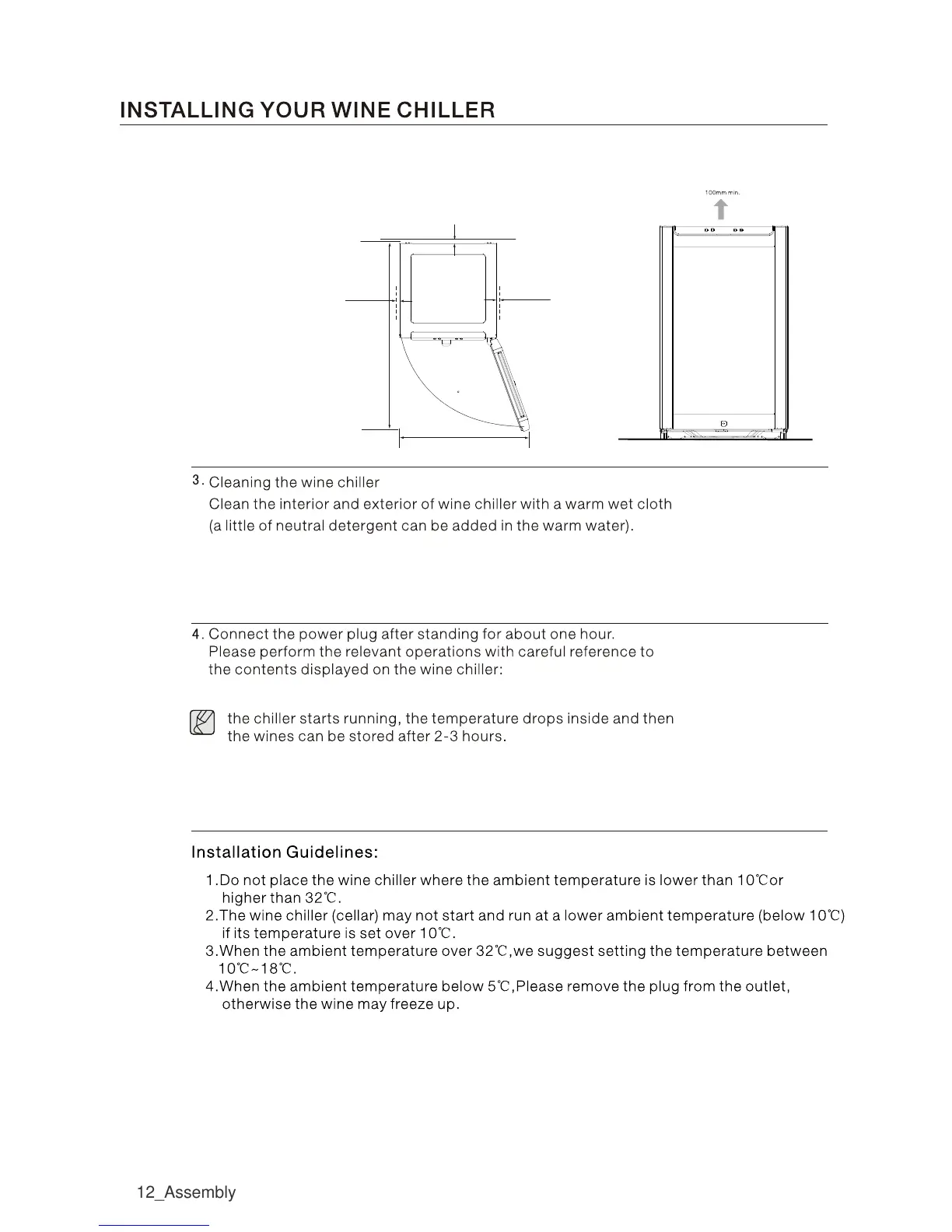

2. Enough space shall be reserved for wine chiller.
The minimum distance between the rear wall or side wall of wine
chiller and the wall shall not be less than 55mm. The height above the top
shall not be less than 100mm.
12_Assembly
