Before Installation
E E
Before Installation
Installation Example
Description of Installation HOLEs
- Make sure the installation location can support over 5 times (approx.5.5
kg)the total weight of the ANTI VANDAL DOME CAMERA (SCC-C9302P).
- Be careful not to let the cable be jammed in inappropriate places or to let
the insulation covering of the cable peel off during installation.
This may result in malfunction or a fire hazard.
- Items may fall and may cause hazards while installing the
product.Therefore ensure that no-one is beneath the installation location.
Move valuables to a safe place before installation.
- Able to install on ceilings.
- Directly install on a PIPE coming down from the ceiling.
- Directly install on walls.
- Directly install on a PIPE coming out from a wall.
- Install on walls, corners in buildings, columns and other locations using the
WALL MOUNT ADAPTOR (SADT -102WM), CORNER MOUNT ADAPTOR
(SADT-110CM)and POLE MOUNT ADAPTOR (SADT-100PM).
(The above ADAPTOR types are sold separately.)
a. Wall Mount Adaptor (SAD-102WM)
b. Corner Mount Adaptor (SADT-110CM)
c. Pole Mount Adaptor (SADT-100PM)
A : Use when directly installing on the ceiling or a wall.
- Waterproofed only when the SCREW -MACHINE (M5 X L6...)is closed
up when not in use.
B : Use when directly installing on the JUNCTION BOX
- SCC-C9302P can be assembled into a 4 1/8" DIAMETER ROUND
TYPE JUNCTION BOX.
SCC-C9302F is assembled outside of the 4 1/8" DIAMETER ROUND
TYPE EXTENSION BOX,and then must be covered with the GASKET
and COVER.
(JUNCTION BOX,GASKET and COVER are sold separately.)
C : Use when installing the WALL MOUNT ADAPTOR (SADT - 102WM)
- Waterproofed only when the SCREW -MACHINE (M5 X L6...)is closed
up when not in use.

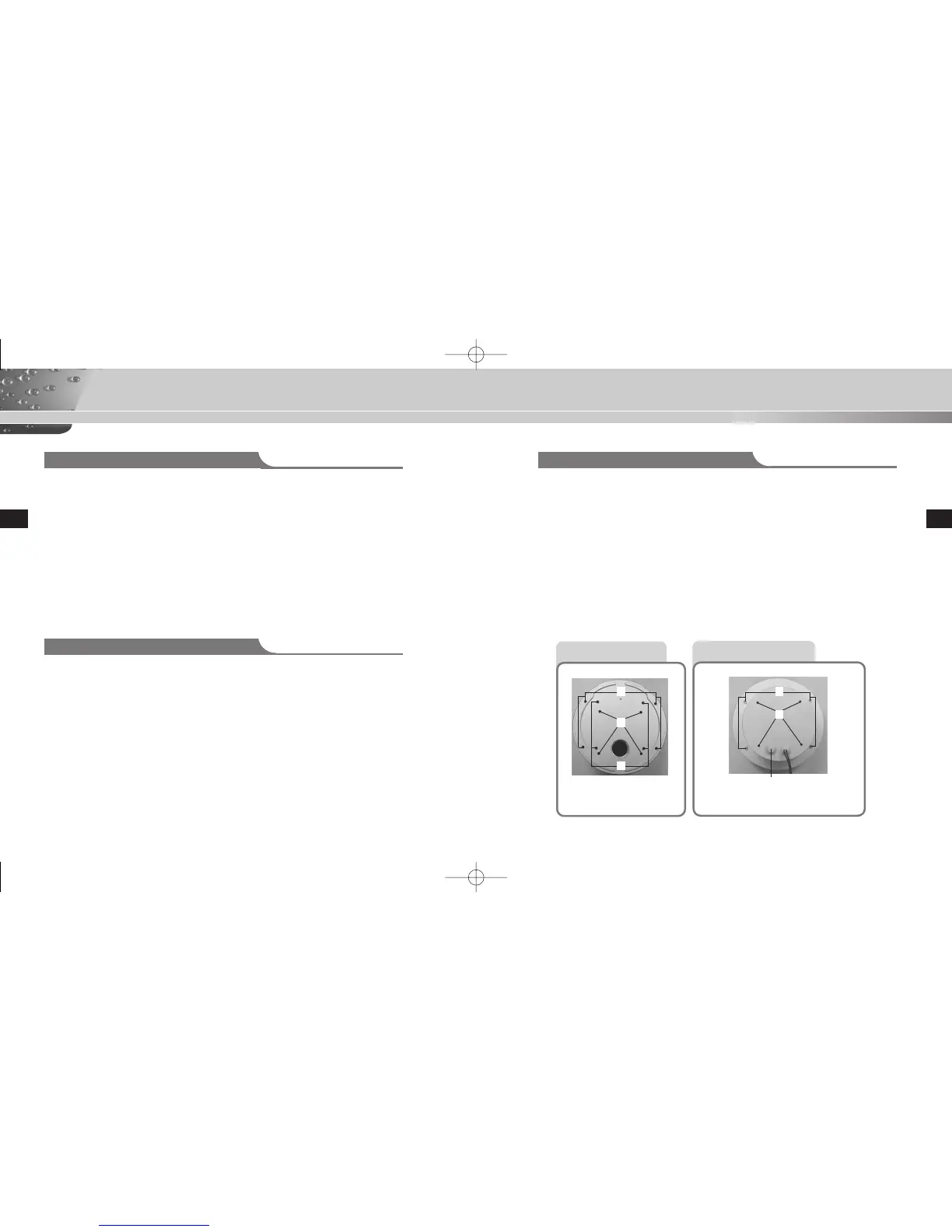

SCC-C9302P bottom
SCC-C9302F bottom
To additionally connect the ALARM CABLE,remove the rubber
stopper,pass the cable through the hole and connect.
- The rubber stopper attached to the ALARM CABLE must be
properly set onto the CASE to make it waterproof.
A A
C
B
B
