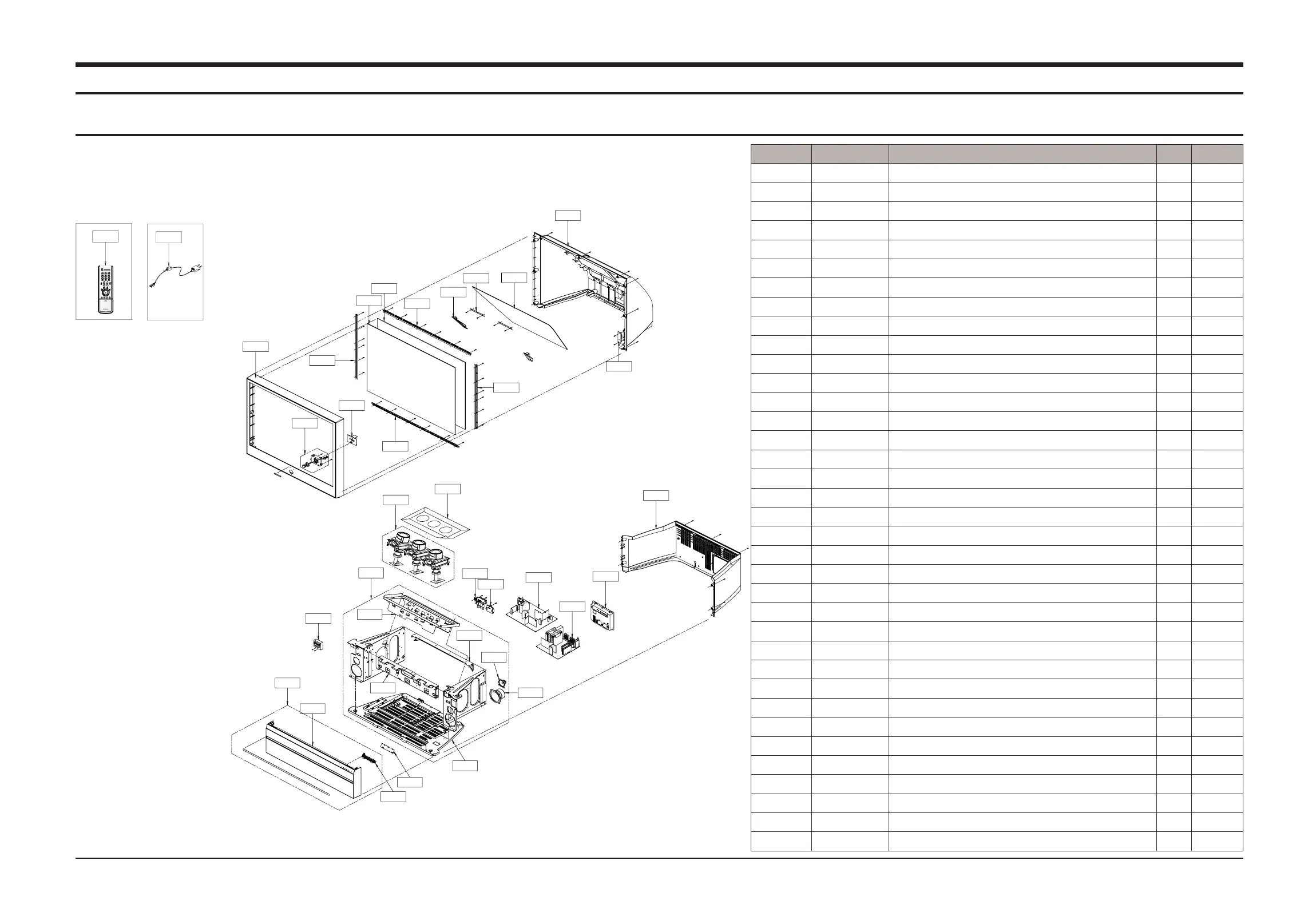

3. Exploded View & Parts List
3-1 SP43R2HEX/UMG
Exploded View & Parts List
Samsung Electronics 3-1
T0003
T0103
T0002
T0068
T0115
M0112
T0158
T0022
T0245
T0531
T0910
T0082
T0082
T0118
T0105
T0097
T0130
T0015
T0056
T0384
T0254
T0023
T0054
T0053
T0254
T0929
T0068
T0108
M0045
T0091
T0056
T0074
T0268
M0014
T0600
T0601
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
Loc.No Code No Description;Specification Q’ty S.N.A
M0014 BP94-00673A ASSY PCB MAIN;SP43T8HEX/HAC,J59A 1
M0045 AA64-02734B CABINET BACK-TOP;43T7,HIPS,HB,GR503 1
M0112 BP63-00578A COVER-FRONT;43R1,HIPS,HB,GR503 1 S.N.A
T0002 BP96-01260A ASSY COVER P-FRONT BOTTOM;43R2,ASIA(J59A 1 S.N.A
T0003 BP96-00895F ASSY COVER P-FRONT;43R1,ASIA(J59A),HIPS, 1
T0015 AA64-02735B CABINET-BACK,BOT;43T7,HIPS,HB,GR503 1
T0022 BP64-00551A KNOB CONTROL;43R2,ABS,HB 1 S.N.A
T0023 BP64-00312A KNOB POWER-ASSY;43T9,ABS,HB,GRY 1 S.N.A
T0053 AA67-00115F SCREEN FRESNEL;SCREEN FRESNEL,910*692,T2 1
T0054 AA67-00195F SCREEN LENTI;SCREEN-LENTI,908*690,T=0.76 1
T0056 BP61-00110A BRACKET-SCREEN,RL;43T7,SECC,T1.0,SCREEN 1 S.N.A
T0056 BP61-00110A BRACKET-SCREEN,RL;43T7,SECC,T1.0,SCREEN 1 S.N.A
T0068 BP61-00008A BRACKET-MIRROR,ASSY;42W5,SECC,T1.0,AA61- 2 S.N.A
T0068 BP63-00587A COVER-FRONT BOTTOM;43R2,HIPS,HB 1 S.N.A
T0074 BP59-00053B REMOCON;CHAMP,TM77,49,SVM-3012,EX,SAMSUN 1
T0082 3001-001107 SPEAKER;20W,8OHM,95DB,1300HZ 2
T0082 3001-001353 SPEAKER;25W,8OHM,90DB+/-3DB,60HZ+/-12HZ 2
T0091 BP94-01435A ASSY PCB MISC-A/V SIDE;SP43T9HRX/XTT,J57 1
T0097 BP94-01792A ASSY PCB MISC-PWR DEF;SP43T8HEX/HAC,J59A 1
T0103 BP59-00045A MODULE-FOCUS PACK ASS'Y;SVP-43W6HE,F301- 1
T0105 BP94-01484A ASSY PCB MISC-DY JACK;SVP-43H3HT,P61A 1
T0108 AA67-00205B MIRROR-BACK;43T7,SSM,795*569*554*(78) 1
T0115 AA61-00475B BRACKET-CRT,MAIN;54",SECC,T1.6,-,-,-,- 1
T0118 AA26-00101A TRANS FBT-H/V DISTRIBUTOR;FWZ50A001E/FFA 1
T0130 BP96-00387K ASSY COVER P-TERMINAL ANT;J59A,HIPS,VO,B 1 S.N.A
T0158 BP96-01257G ASSY COVER P-MAIN;42R2,CHAMP 1 S.N.A
T0245 BP94-01152A ASSY PCB MISC-KEY CONTROL;SP43R2HEX/UMG, 1 S.N.A
T0254 BP61-00109A BRACKET-SCREEN,TB;43T7,SECC,T1.0,SCREEN 1 S.N.A
T0254 BP61-00109A BRACKET-SCREEN,TB;43T7,SECC,T1.0,SCREEN 1 S.N.A
T0268 AA39-10006X CBF-POWER CORD;-,KKP419C,KLCE-2F,2.286MT 1
T0384 BP94-01399A ASSY PCB MISC-PWR CONTROL;43R2,J59A 1 S.N.A
T0531 BP63-00577A COVER-BOTTOM;43R1,HIPS,VO,GR503 1 S.N.A
T0600 AA60-00072D SPACER-COVER,DUST;PJTV,SPONGE,BLK,T3.0 1 S.N.A
T0601 BP91-01861B ASSY PRT;MIDDLE,J59A 1 S.N.A
T0910 BP61-01125A BRACKET-REAR TOP;43R1,SECC,T1.2 1 S.N.A
T0929 BP61-00300A HOLDER-MIRROR R ASSY;43T8,HIPS,HB,BLK 1 S.N.A
