22
SPEED DOME CAMERA ACCESSORIES
23
SPEED DOME CAMERA ACCESSORIES
Safety
Cable
Alignment
Direction
Guides
Alignment
Direction
Guides
Protocol(SW2)
ID(SW1)
Alignment
Directions
STB-370PC
STB-370PC

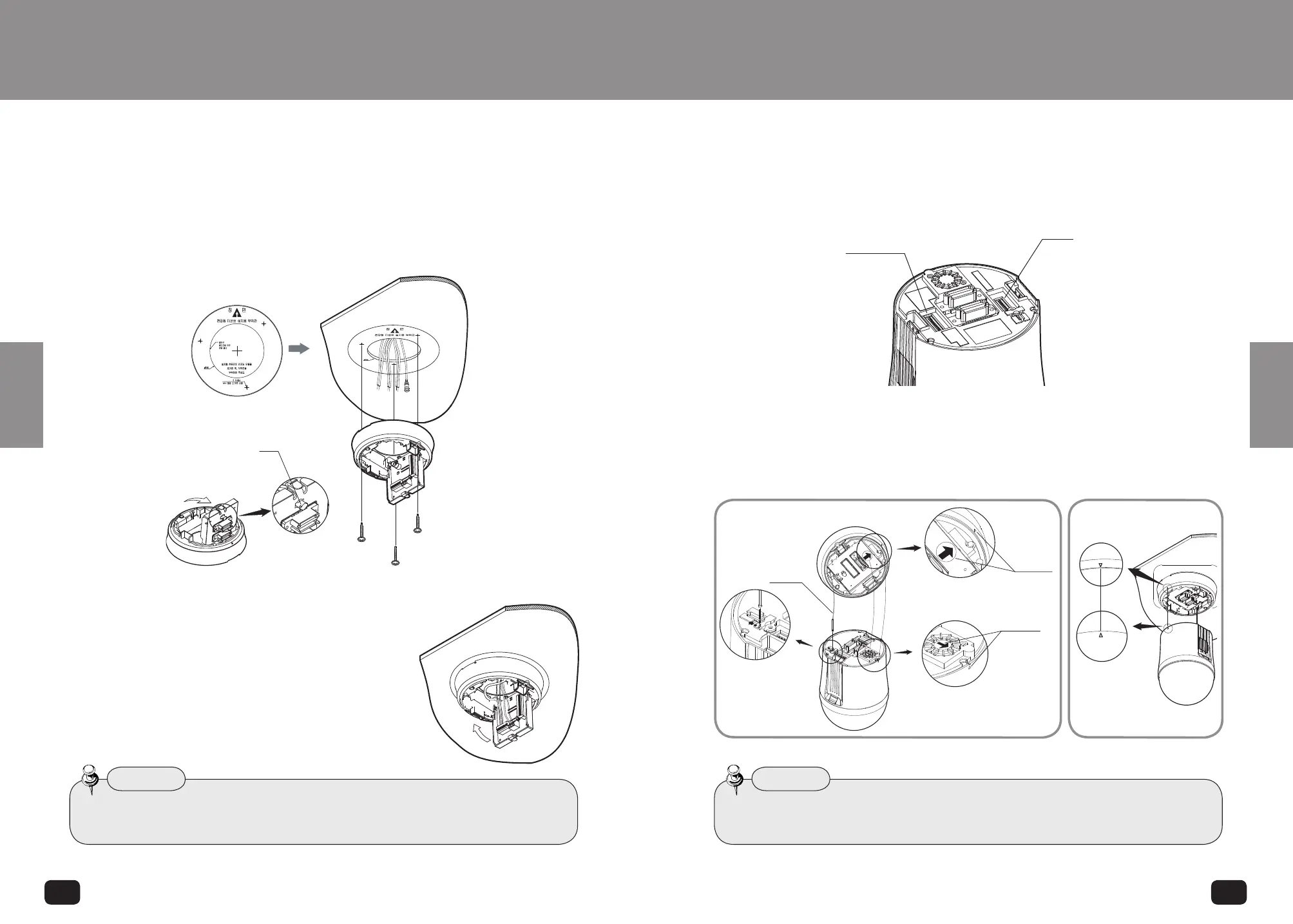

1. Attaching Template and Installing STB-370PC
Attach the enclosed template to the ceiling, then drill a hole in the ceiling according to the
diameter marked on the template. Drop the camera cables down from the ceiling through
the hole. Next, install the Install Base STB-370PC to the ceiling as shown in the picture.
Before installing the exposed bracket, open the hinged door at the bottom of the bracket as
shown in the picture. Hold the knob on the hinged door to open.
3. Setting Up Camera DIP Switches
DIP switches for communication and ID protocols are located on the bottom of the
camera. For the switch settings, refer to the appendix of this manual.
5. Connecting Camera Safety Cable and Attaching Camera
Carefully attach the camera to the mount following the alignment guide marks as shown
in the picture. First hook the camera's safety cable on the mount, and then attach the
camera. The safety cable is coiled inside the install base. As shown in the leftward picture,
pull out the safety cable from the install base and then hook it to the mount.
2. Wiring Terminal Cables
Connect the cables to the terminal block on the
hinged door. For the location of the wiring pins,
please refer to the “Camera Wiring Diagram” on
Page 12. Once the wiring is successful, close the
hinged door.
•Do notconnect thecamera toa poweroutlet until the installation is complete.Supplying
power in the middle of the installation may cause fire or damage the product.
Notes
•Makesuretofirsthookthecamera'ssafetycabletothemountbeforeproceeding.Otherwise
youmaybeexposedtoseriousinjurycausedbyafallencamera.
Notes
✽
To attach the camera to the mount, refer to the alignment guide marks as shown in the picture.
Knob
Template
On-Ceiling Mount Type Installation On-Ceiling Mount Type Installation
