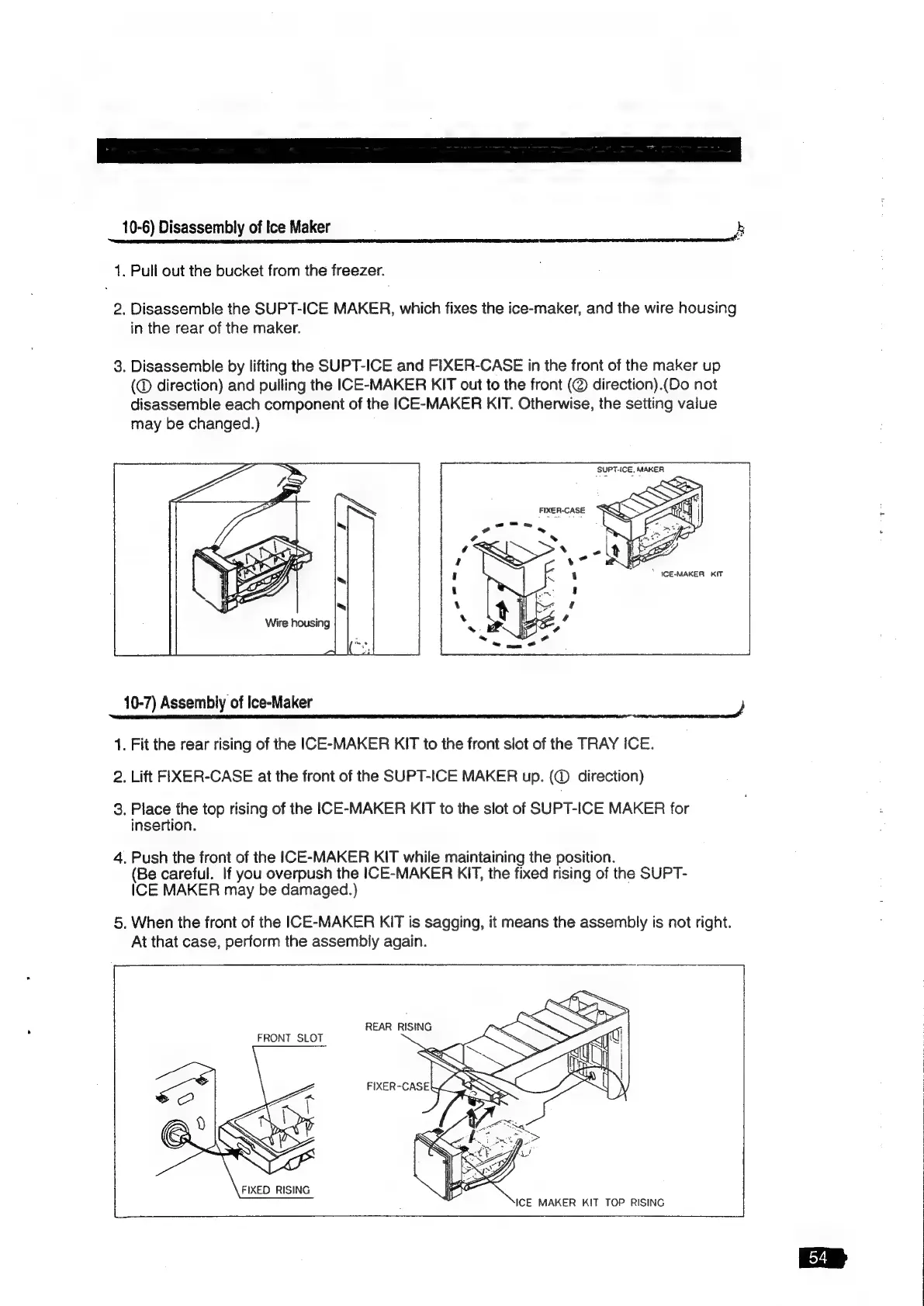

10-6)
Disassembly
of
Ice
Maker
k
1.
Pull
out
the
bucket
from
the
freezer.
2.
Disassemble
the
SUPT-ICE
MAKER,
which
fixes
the
ice-maker,
and
the
wire
housing
in
the
rear
of
the
maker.
3.
Disassemble
by
lifting
the
SUPT-ICE
and
FIXER-CASE
in
the
front
of
the
maker
up
(®
direction)
and
pulling
the
ICE-MAKER
KIT
out
to
the
front
(@
direction).(Do
not
disassemble
each
component
of
the
ICE-MAKER
KIT.
Otherwise,
the
setting
value
may
be
changed.)
SUPT-ICE,
MAKER
Wire
housing
10-7)
Assembly
of
Ice-Maker
1.
Fit
the
rear
rising
of
the
ICE-MAKER
KIT
to
the
front
slot
of
the
TRAY
ICE.
2.
Lift
FIXER-CASE
at
the
front
of
the
SUPT-ICE
MAKER
up.
(@
direction)
3.
Place
the
top
rising
of
the
ICE-MAKER
KIT
to
the
slot
of
SUPT-ICE
MAKER
for
insertion.
4.
Push
the
front
of
the
ICE-MAKER
KIT
while
maintaining
the
position.
(Be
careful.
If
you
overpush
the
ICE-MAKER
KIT,
the
fixed
rising
of
the
SUPT-
ICE
MAKER
may
be
damaged.)
5.
When
the
front
of
the
ICE-MAKER
KIT
is
sagging,
it
means
the
assembly
is
not
right.
At
that
case,
perform
the
assembly
again.
FRONT
SLOT
FIXED
RISING
ICE
MAKER
KIT
TOP
RISING
