A - LCD Display
B - Wall Bracket
C - Wall

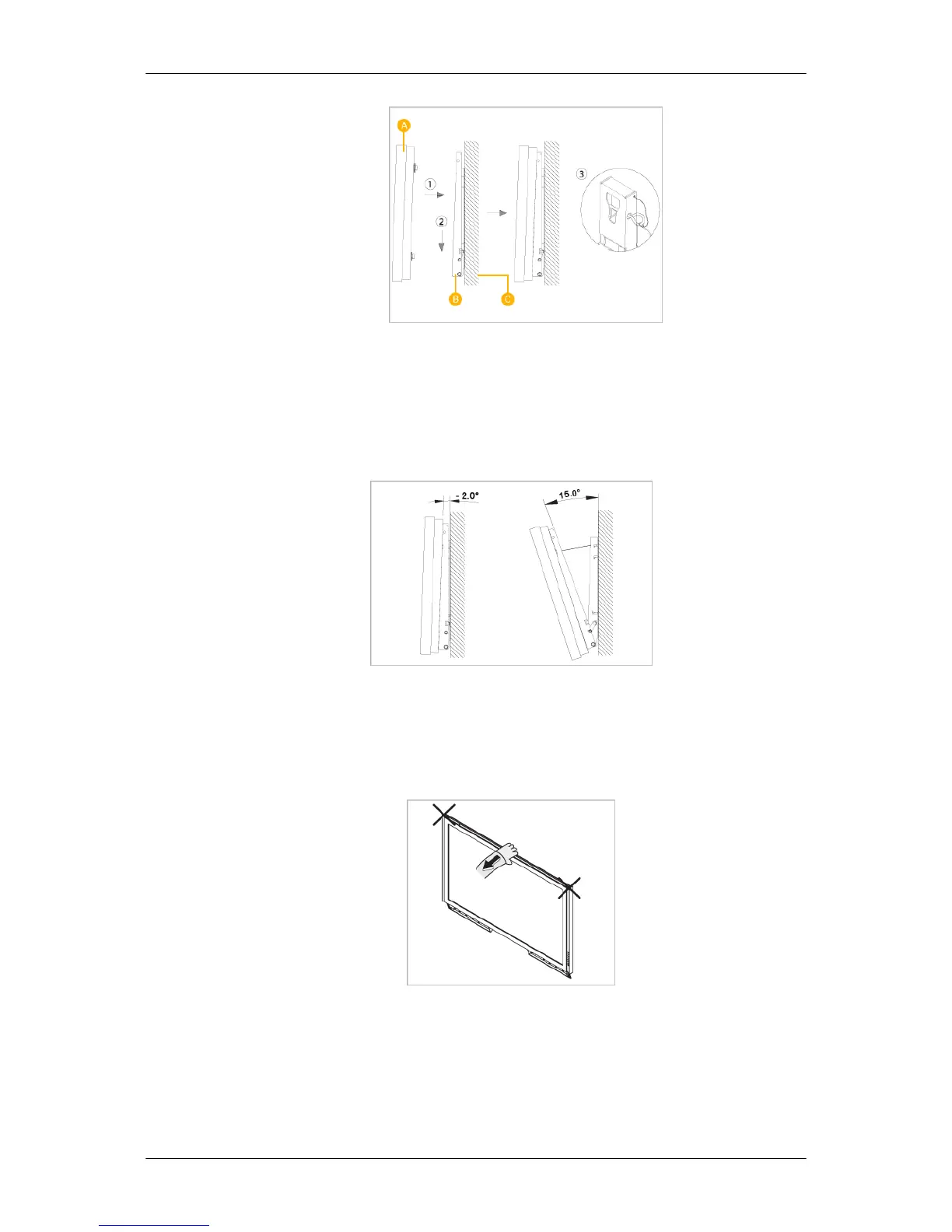

Wall Bracket Angle Adjustment
Adjust the bracket angle to -2° before installing it on the wall.
1. Fix the product to the wall bracket.
2. Hold the product at the top in the center and pull it forward (direction of the arrow) to adjust the
angle.
3. You can adjust the bracket angle between -2° and 15°.
Make sure to use the top center, and not the leftor the right side of the product to adjust the angle.
