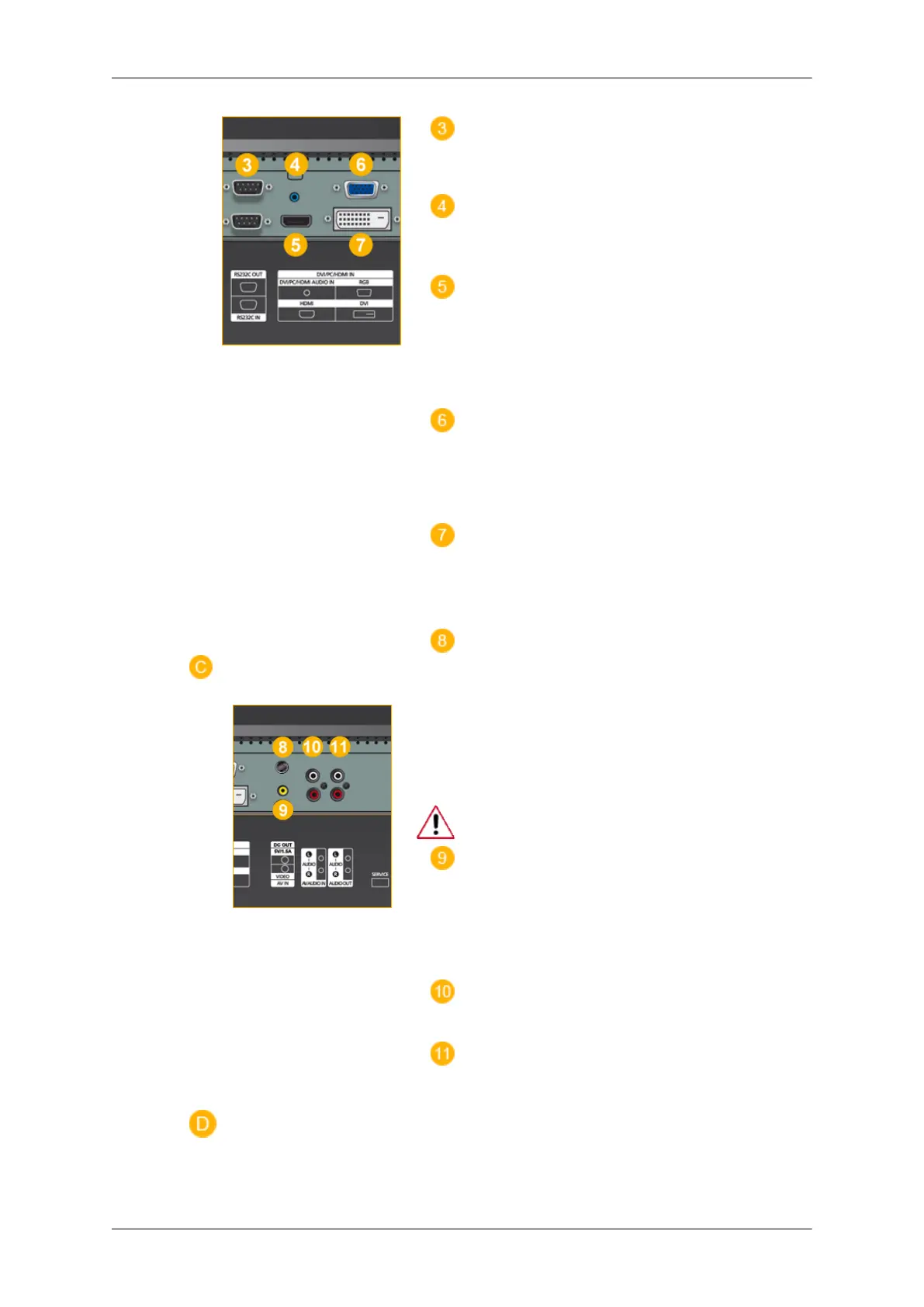

RS232C OUT/IN (RS232C Serial PORT)
MDC(Multiple Display Control) Program Port
DVI / PC / HDMI IN [DVI/PC/HDMI AU-
DIO IN] (PC/DVI/HDMI Audio Connection
Terminal (Input))
DVI / PC / HDMI IN [HDMI]
Connect the HDMI terminal at the back of
your LCD Display to the HDMI terminal of
your digital output device using a HDMI ca-
ble.
DVI / PC / HDMI IN [RGB](PC Video
Connection Terminal)
Using a D-Sub Cable (15 pin D-Sub) - PC
mode (Analog PC)
DVI / PC / HDMI IN [DVI] (PC Video Con-
nection Terminal)
Using a DVI Cable (DVI-D to DVI-D) - DVI
mode (Digital PC)
DC OUT [5V/1.5A]
AV IN [VIDEO] (VIDEO Connection Ter-
minal)
Connect the [ VIDEO ] terminal of your mon-
itor to the video output terminal of the exter-
nal device using a VIDEO cable.
AV AUDIO IN [L-AUDIO-R](LCD Display
Audio Connection Terminal (Input))
AV AUDIO OUT [L-AUDIO-R] (LCD Dis-
play Audio Connection Terminal (Output))
Introduction
Otherwise, this may result in damage to the product.
Make sure to use connecting DC-OUT terminal
to the authorized TV-Tuner Box[SBB-DT*].
Connect this to the power connector of a TV
tuner box or network box.
To Next Page
