Replacement components:
Contact Samtec if replacement components are needed.
• 70 GHz, BE70A Components: Block: BE70B Series / Cable: BE70C Series
• 50 GHz, BE40A Components: Block: BE40B Series / Cable: BE40C Series

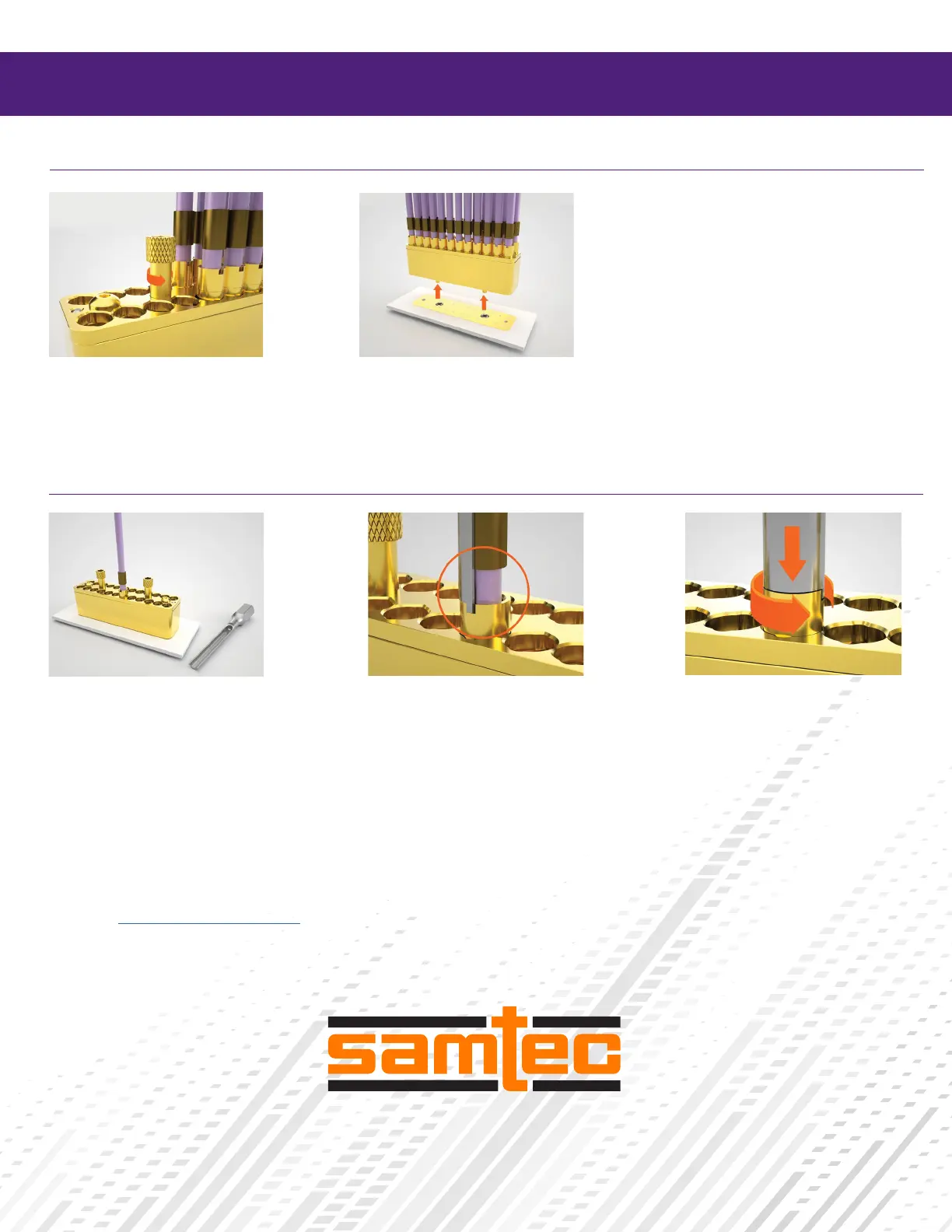

REMOVAL
REMOVING FULL ASSEMBLY
Loosen Thumbscrews
Lift Off PCB
1. Loosen the thumbscrews,
alternating between
each thumbscrew
2. Carefully lift the assembly
off the PCB
REMOVING INDIVIDUAL CABLES
To Remove
Insert Tool Push Down - Rotate 90
o
samtec.com/BullsEye
March 2022
Contact RFGroup@samtec.com for assistance.
There are a variety of series within Samtec's BullsEye
®
product family. While the installation/removal
process for these are similar, each have unique specications that need to be observed.
• You will need the supplied tool
• Tool P/N: CAT-EX-SCC-03
1. Insert tool into notch
2. Push down to compress the
internal spring then rotate 90
o
3. Release the insertion tool
