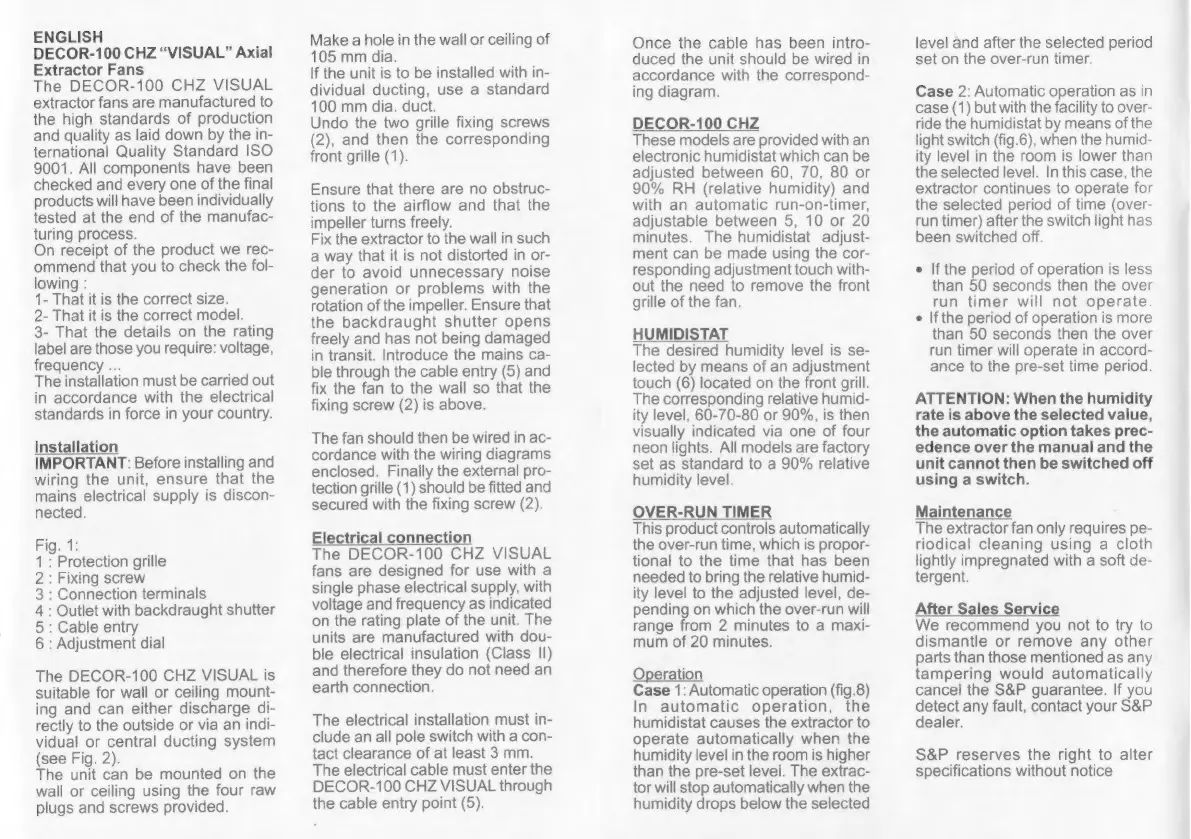

ENGLISH
DECOR-100
CHZ
“VISUAL”
Axial
Extractor
Fans
The
DECOR-100
CHZ
VISUAL
extractor
fans
are
manufactured
to
the
high
standards
of
production
and
quality
as
laid
down
by
the
in-
ternational
Quality
Standard
ISO
9001.
All
components
have been
checked
and
every
one
of
the
final
products
will
have
been
individually
tested
at
the
end
of
the
manufac-
turing
process.
On
receipt
of
the
product
we
rec-
ommend
that
you
to
check
the
fol-
lowing
:
1-
That
it
is
the
correct
size.
2-
That
it
is
the
correct
model.
3-
That
the
details
on
the
rating
label
are
those
you
require:
voltage,
frequency
...
The
installation
must
be
carried
out
in
accordance
with
the
electrical
standards
in
force
in
your
country.
Installation
IMPORTANT:
Before
installing
and
wiring
the
unit,
ensure
that
the
mains
electrical
supply
is
discon-
nected.
Fig
:
Protection
grille
:
Fixing
screw
:
Connection
terminals
:
Outlet
with
backdraught
shutter
:
Cable
entry
:
Adjustment
dial
The
DECOR-100
CHZ
VISUAL
is
suitable
for
wall
or
ceiling
mount-
ing
and
can
either
discharge
di-
rectly
to
the
outside
or
via
an
indi-
vidual
or
central
ducting
system
(see
Fig.
2).
The
unit
can
be
mounted
on
the
wall
or
ceiling
using
the
four
raw
plugs
and
screws
provided.
DURON
Make
a
hole
in
the
wall
or
ceiling
of
105
mm
dia.
If
the
unit
is
to
be
installed
with
in-
dividual
ducting,
use
a
standard
100
mm
dia.
duct.
Undo
the
two
grille
fixing
screws
(2),
and
then
the
corresponding
front
grille
(1).
Ensure
that
there
are
no
obstruc-
tions
to
the
airflow
and
that
the
impeller
turns
freely.
Fix
the
extractor
to
the
wall
in
such
a
way
that
it
is
not
distorted
in
or-
der
to
avoid
unnecessary
noise
generation
or
problems
with
the
rotation
of
the
impeller.
Ensure
that
the
backdraught
shutter
opens
freely
and
has
not
being
damaged
in
transit.
Introduce
the
mains
ca-
ble
through
the
cable
entry
(5)
and
fix
the
fan
to
the
wall
so
that
the
fixing
screw
(2)
is
above.
The
fan
should
then
be
wired
in
ac-
cordance
with
the
wiring
diagrams
enclosed.
Finally
the
external
pro-
tection
grille
(1)
should
be
fitted
and
secured
with
the
fixing
screw
(2).
Electrical
connection
The
DECOR-100
CHZ
VISUAL
fans
are
designed
for
use
with
a
single
phase
electrical
supply,
with
voltage
and
frequency
as
indicated
on
the
rating
plate
of
the
unit.
The
units
are
manufactured
with
dou-
ble
electrical
insulation
(Class
II)
and
therefore
they
do
not
need
an
earth
connection.
The
electrical
installation
must
in-
clude
an
all
pole
switch
with
a
con-
tact
clearance
of
at
least
3
mm.
The
electrical
cable
must
enter
the
DECOR-100
CHZ
VISUAL
through
the
cable
entry
point
(5).
Once
the
cable
has
been
intro-
duced
the
unit
should
be
wired
in
accordance
with
the
correspond-
ing
diagram.
DECOR-100
CHZ
These
models
are
provided
with
an
electronic
humidistat
which
can
be
adjusted
between
60,
70,
80
or
90%
RH
(relative
humidity)
and
with
an
automatic
run-on-timer,
adjustable
between
5,
10
or
20
minutes.
The
humidistat
adjust-
ment
can
be
made
using
the
cor-
responding
adjustment
touch
with-
out
the
need
to
remove
the
front
grille
of
the
fan.
HUMIDISTAT
The
desired
humidity
level
is
se-
lected
by
means
of
an
adjustment
touch
(6)
located
on
the
front
grill.
The
corresponding
relative
humid-
ity
level,
60-70-80
or
90%,
is
then
visually
indicated
via
one
of
four
neon
lights.
All
models
are
factory
set
as
standard
to
a
90%
relative
humidity
level.
OVER-RUN
TIMER
This
product
controls
automatically
the
over-run
time,
which
is
propor-
tional
to
the
time
that
has
been
needed
to
bring
the
relative
humid-
ity
level
to
the
adjusted
level,
de-
pending
on
which
the
over-run
will
range
from
2
minutes
to
a
maxi-
mum
of
20
minutes.
Operation
Case
1:
Automatic
operation
(fig.8)
In
automatic
operation,
the
humidistat
causes
the
extractor
to
operate
automatically
when
the
humidity
level
in
the
room
is
higher
than
the
pre-set
level.
The
extrac-
tor
will
stop
automatically
when
the
humidity
drops
below
the
selected
level
and
after
the
selected
period
set
on the
over-run
timer.
Case
2:
Automatic
operation
as
in
case
(1)
but
with
the
facility
to
over-
ride
the
humidistat
by
means
of
the
light
switch
(fig.6),
when
the
humid-
ity
level
in
the
room
is
lower
than
the
selected
level.
In
this
case,
the
extractor
continues
to
operate
for
the
selected
period
of
time
(over-
run
timer)
after
the
switch
light
has
been
switched
off.
e
If
the
period
of
operation
is
less
than
50
seconds
then
the
over
run
timer
will
not
operate.
e
If
the
period
of
operation
is
more
than
50
seconds
then
the
over
run
timer
will
operate
in
accord-
ance
to
the
pre-set
time
period.
ATTENTION:
When
the
humidity
rate
is
above
the
selected
value,
the
automatic
option
takes
prec-
edence
over
the
manual
and
the
unit
cannot
then
be
switched
off
using
a
switch.
Maintenance
The
extractor
fan
only
requires
pe-
riodical
cleaning
using
a
cloth
lightly
impregnated
with
a
soft
de-
tergent.
After
Sales
Service
We
recommend
you
not
to
try
to
dismantle
or
remove
any
other
parts
than
those
mentioned
as
any
tampering
would
automatically
cancel
the
S&P
guarantee.
If
you
detect
any
fault,
contact
your
S&P
dealer.
S&P
reserves
the
right
to
alter
specifications
without
notice
