7

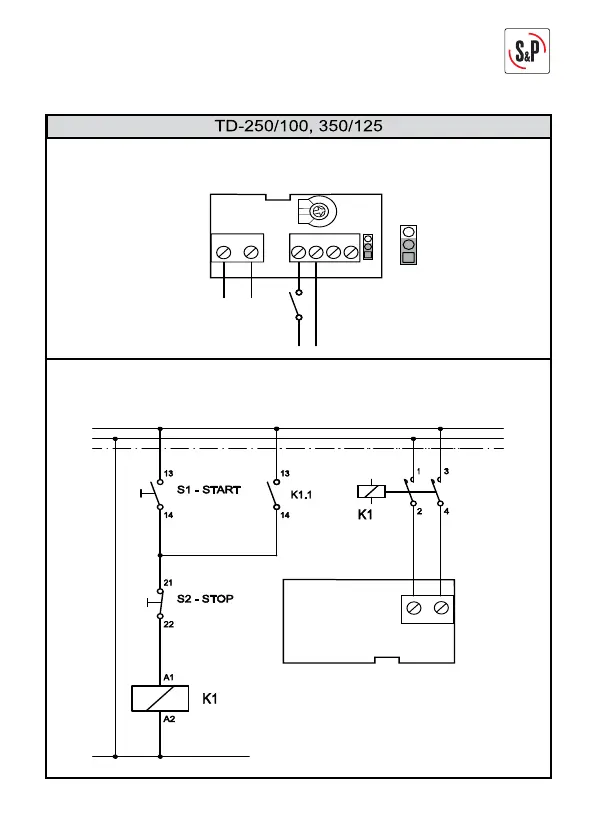

DIAGRAMA PARA CICLOS DE PARO/MARCHA A TRAVES DEL SUMINISTRO
DIAGRAM FOR ON/OFF CYCLES VIA SUPPLY
DIAGRAMME POUR CYCLES MARCHE/ARRET PAR L’ALIMENTATION
DIAGRAMA PARA CICLOS DE PARO/MARCHA CON EL CONTROL - RECOMENDADO
DIAGRAM FOR ON/OFF CYCLES VIA CONTROL - RECOMMENDED
DIAGRAMME POUR CYCLES MARCHE/ARRET AVEC LE CONTROLE - RECOMMANDE
N
L
1
2
3
J3
230V
~
N
L
230V
~
N
L
NL
1
2
3
J3
IN
GND
+10 +24
K1=220-240V Min.9A (Cat.AC3) /
K1=220-240V Min.80A (INRUSH)
