520-222-000 1/04 Rev C Model S30 Metallic Design Level 1 Page 26

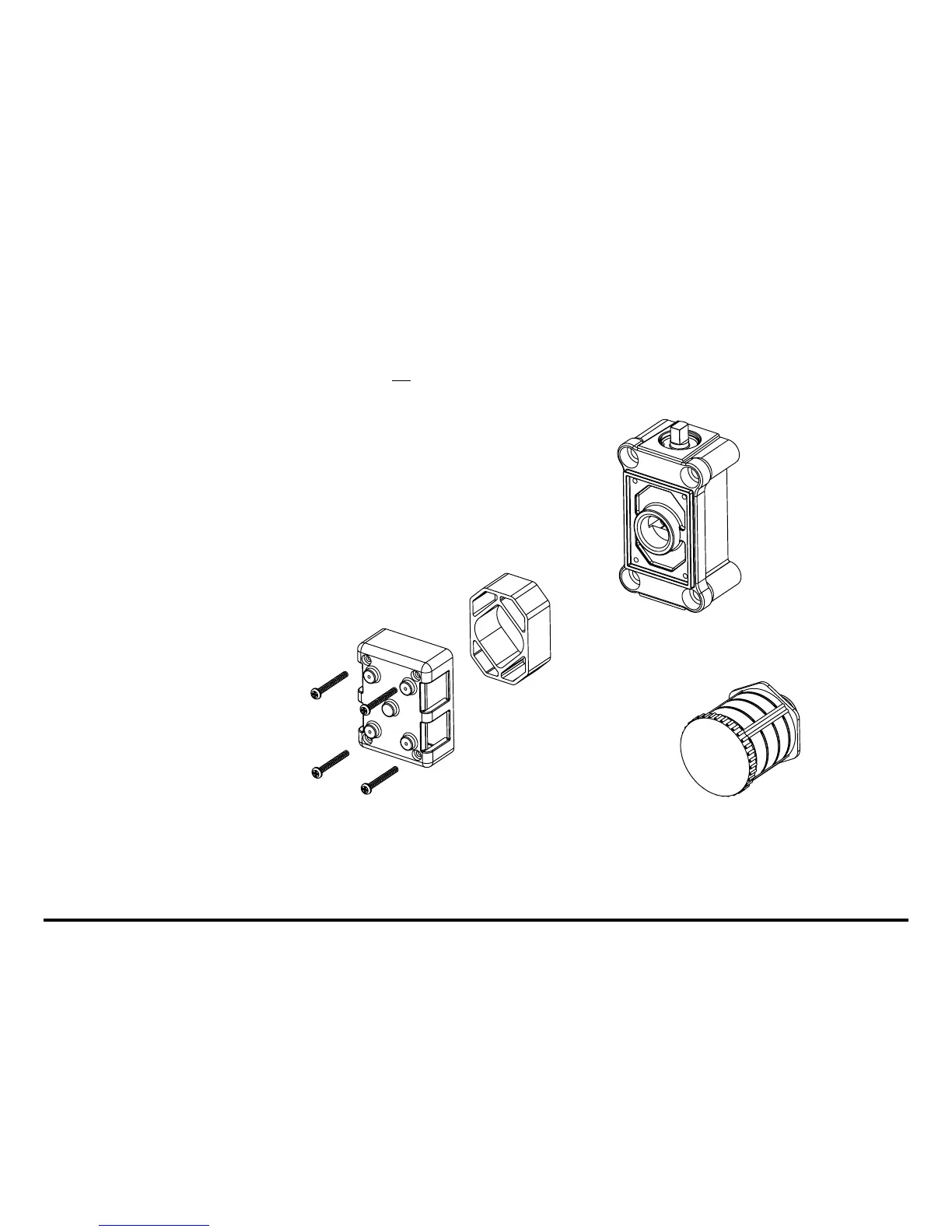

**Optional Muffler Configurations, Drawing
**Configuration A
530-028-550 Encapsulated Muffler uses (1)
165-096-551 Cap and (4) 710-015-115 Self
Tapping Screws (Non-metallic valves), or (4)
706-026-330 Machine Screws (Aluminum
valves) to hold it in place.
**Configuration B
530-010-000 Mesh Muffler screws
directly into the Air Valve Body. This
muffler is equipped with a metal element.
**Configuration C
530-027-000 Sound Dampening Muffler
screws directly into the Air Valve body.
This muffler is equipped with a porous
plastic element.
Configuration A
Configuration B and C
**Note the pump is built with a metal muffler for static electric dissipation, to
meet ATEX requirements. The options shown on this page are not ATEX
compliant.
