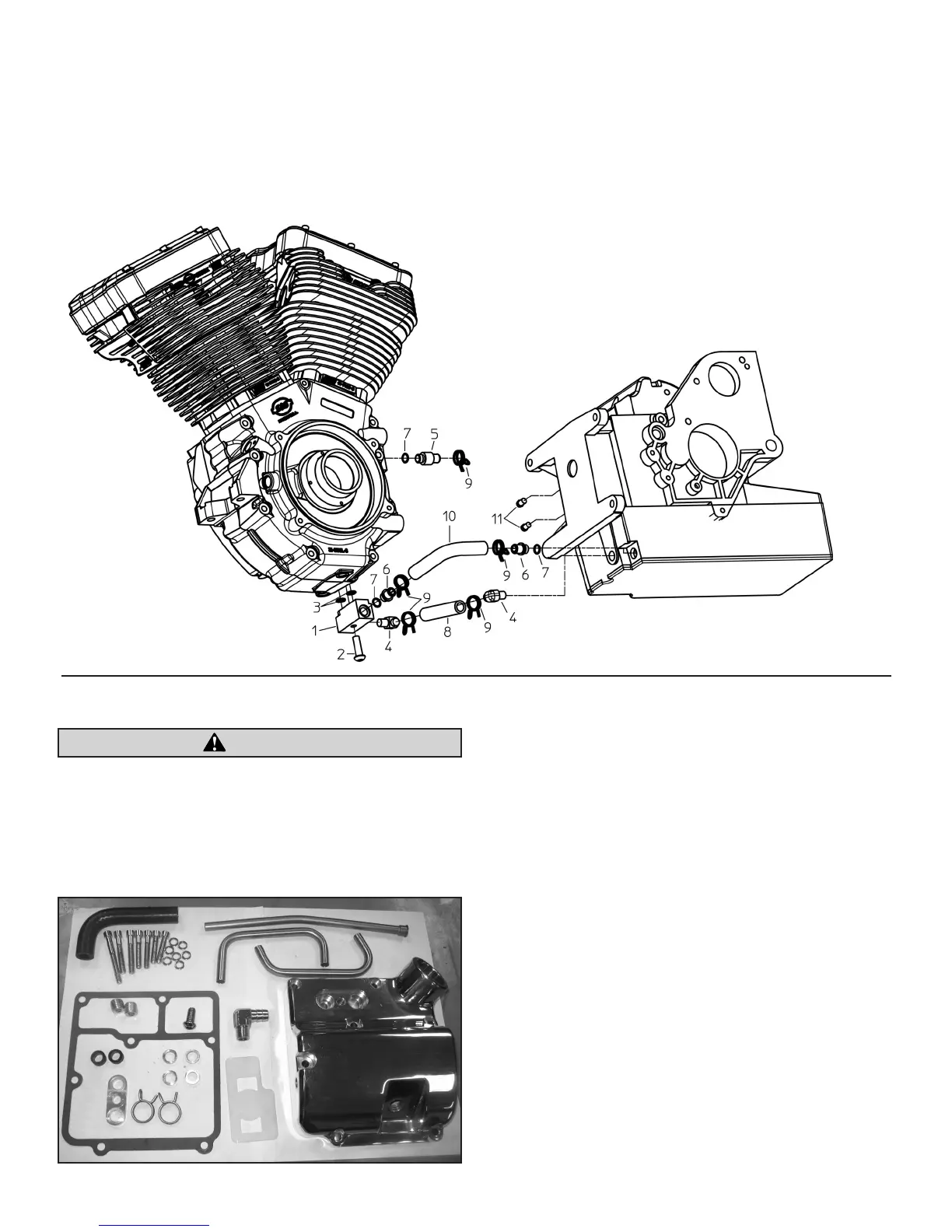

S&S Cycle T111 - Oil Line Installation for Dyna Models

9
1- Block, Oil line .........................................................106-1168
2- BHSHCS,
5
⁄16-18 x 1
3
⁄4 (10 pack) .................................106-1169
3- O-ring
(10 pack).........................................................50-8066
4- Fitting, Pipe, 90 degree
(2 pack)...........................106-1170
5- Fitting,
7
⁄16 (2 pack)............................................................106-1171
3
⁄8 (2 pack) ............................................................106-1172
S&S
®
Replacement Parts for Harley-Davidson
®
FL Models
6- Fitting,
1
⁄2 (2 pack)....................................................106-1173
7
- O-ring
(10 pack).
......................................................106-1183
8- Hose, oil feed ...........................................................50-8157
9- Clamp,
D
ouble Wire Spring
(10 pack) .
.............................50-8156
Hose, Spring (10 pack) ........................................106-1174
10- Hose, Oil Line, 90 degree bend ..............................50-8292
1
1- Plug, pipe
(10 pack).
................................................106-1175
B- For 1999-’05 Harley-Davidson
®
Dyna
®
models
Oil line installation is crucial to engine life. If you are not sure
that you can properly perform this operation, please contact
the S&S Tech Department for a referral to a shop in your area.
NOTE: Installation instructions are based on an engine and
transmission already in the chassis.
1- Remove the stock oil supply and return fittings from
the transmission.
2- Install two supplied
3
⁄8 NPT pipe plugs (S&S PN 50-8330)
in the oil fitting location.
NOTE: Apply thread sealant to all tapered pipe threads.
3- Drain the oil from the oil pan—see the proper
factory service manual for instructions—and then
remove the oil pan from the motorcycle.
4- Place the supplied template (53-0080) over the oil
pan baffle and use a scribe to mark the location of
the
1
⁄2” hole as shown in Picture 8. Use a drill press to
machine the
1
⁄2” hole as marked in Picture 8a. Use a
small file or deburring tool to make sure no chips or
pieces are left on the
1
⁄2” hole and then clean the oil
pan and baffle with a solvent before reinstalling
the pan with a new gasket on the motorcycle.
CAUTION
Dyna
®
Oil Line Istall Kit (PN 31-0424)
