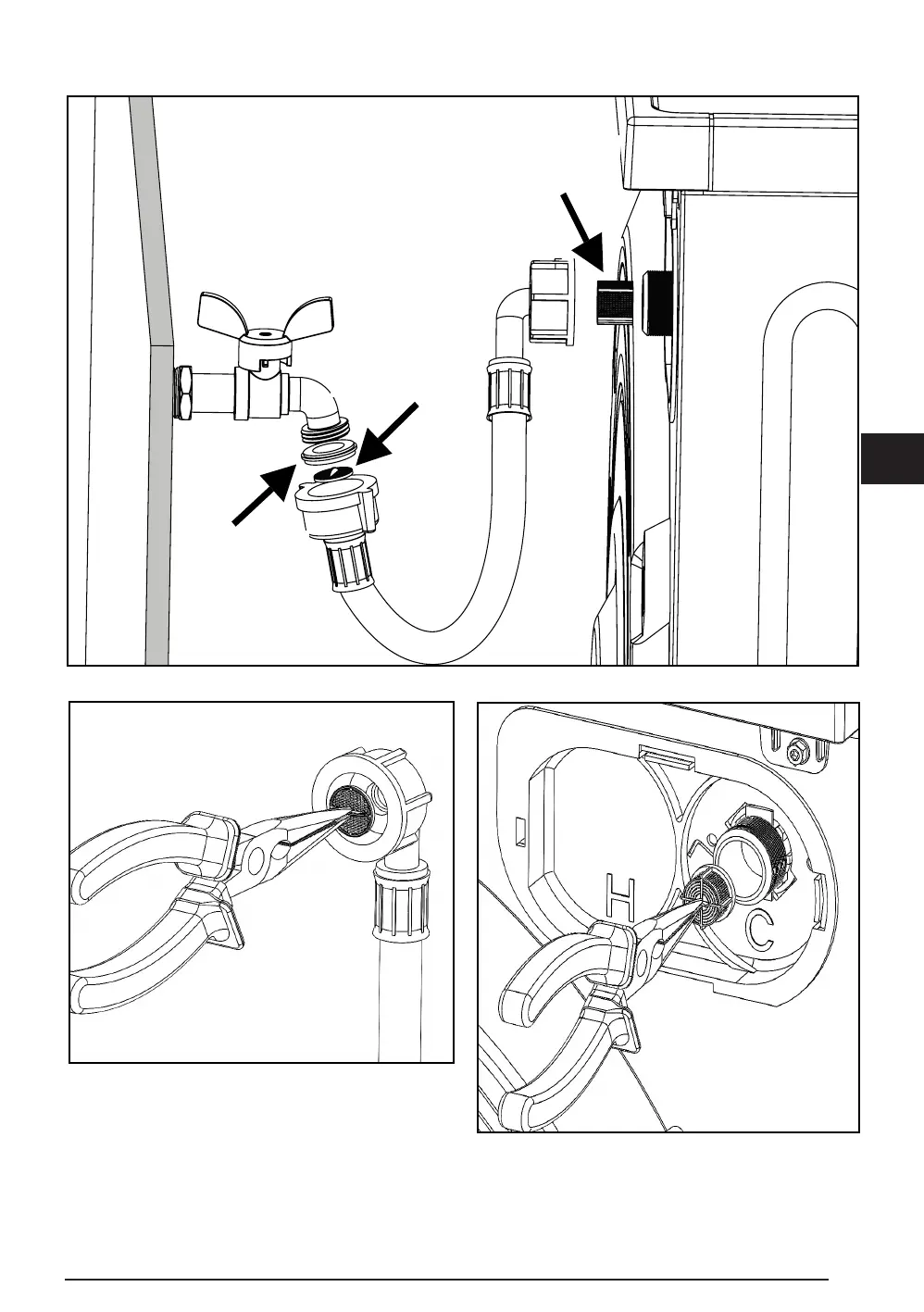

Figure 21
Filtro tubo
carico
Filtro tubo
elettrovalvola
Guarnizione
Extraction water inlet hose  lter* Extraction water valve  lter
*Before extracting the  lter from the wateinlet
hose, remove the gasket indicated in  gure 21.
Electro-valve
 lter
Water inlet
hose  lter
Rubber
gasket
