7. 8. 9. 10.
11. 12. 13.
15.
14.
16.
17.

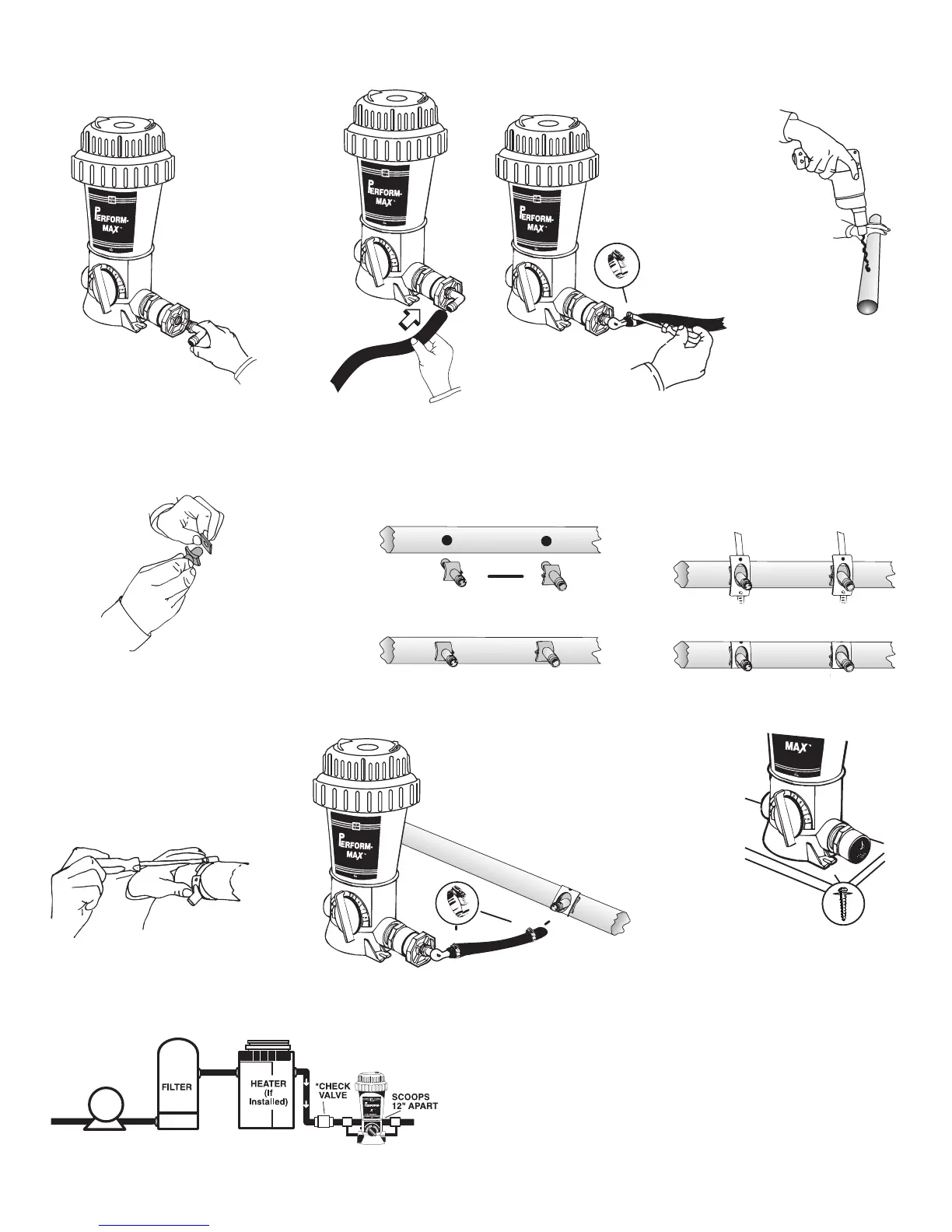

For best results use Phillips
pan head screws through the
mounting holes at the
Perform-Max base to secure
the Perform-Max into a
treated wood base.
Isolating the Perform-Max by installing a corrosion resistant
check valve is recommended to protect the equipment and
prevent discoloration of pool surface.
Attach a gasket to
each scoop.
Place scoops
inside holes
so the inlet
scoop faces
the water
flow and the
outlet scoop
faces away
from the
water flow.
Tighten scoop clamps with
a screwdriver.
When pipe is
totally dry,
drill two 19/32"
or 5/8" holes
12" apart on the
return line. Be
careful not to go
through other
side of pipe.
Arrows on scoops must face each other.
Screw elbow into reducer
bushings on both sides.
Cut tubing
to size for
each
Perform-
Max
connection
and attach
one to
each elbow
with
clamps.
Tighten clamps
with a screwdriver.
Attach scoop clamps
over the scoops and
around the pipe.
Attach each hose to a
venturi scoop male
nipple with a small
clamp and tighten with
screwdriver.
9
P
O
O
L
S
A
N
I
T
I
Z
E
R
1
3
4
5
6
7
9
B
R
O
M
I
N
E
P
O
O
L
S
2
T
R
I
C
H
L
O
R
MIN
MAX
8
L
A
R
G
E
R
S
P
A
S
S
M
A
L
L
E
R
P
O
O
L
S
L
A
R
G
E
R
P
O
O
L
S
M
A
