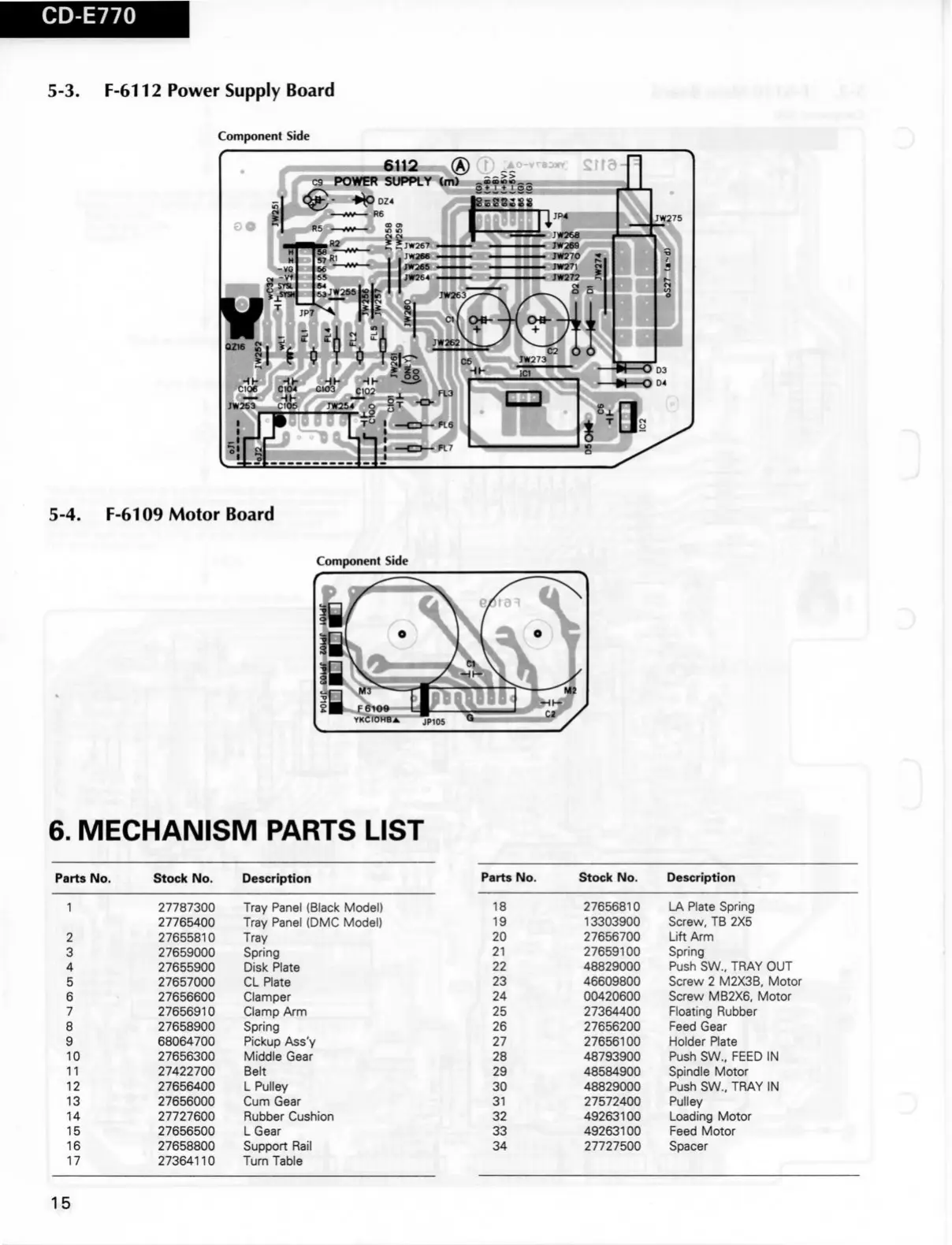

Sansui CD-E770 - Page 16

CD-E770
5-3. F-6112 Power Supply Board
Component Side
D
5-4. F-6109 Motor Board
Parts No. Stock No. Description
1
27787300 Tray Panel (Black Model)
27765400 Tray Panel (DMC Model)
2 27655810 Tray
3 27659000 Spring
4 27655900 Disk Plate
5 27657000 CL Plate
6 27656600 Clannper
7 27656910 Clamp Arnn
8 27658900 Spring
9 68064700 Pickup Ass'y
10 27656300 Middle Gaar
11 27422700 Belt
12 27656400 L Pulley
13 27656000 Cum Gaar
14 27727600 Rubber Cushion
15 27656500 L Gear
16 27658800 Support Rail
17 27364110 Turn Tabla
Parts No. Stock No. Description
18 27656810 LA Plate Spring
19 13303900 Screw, TB2X5
20 27656700 Lift Arm
21 27659100 Spring
22 48829000 Push SW., TRAY OUT
23 46609800 Screw 2 M2X3B, Motor
24 00420600 Screw MB2X6, Motor
25 27364400 Floating Rubber
26 27656200 Feed Gear
27 27656100 Holder Plate
28 48793900 Push SW„ FEED IN
29 48584900 Spindle Motor
30 48829000 Push SW., TRAY IN
31 27572400 Pulley
32 49263100 Loading Motor
33 49263100 Feed Motor
34 27727500 Spacer
