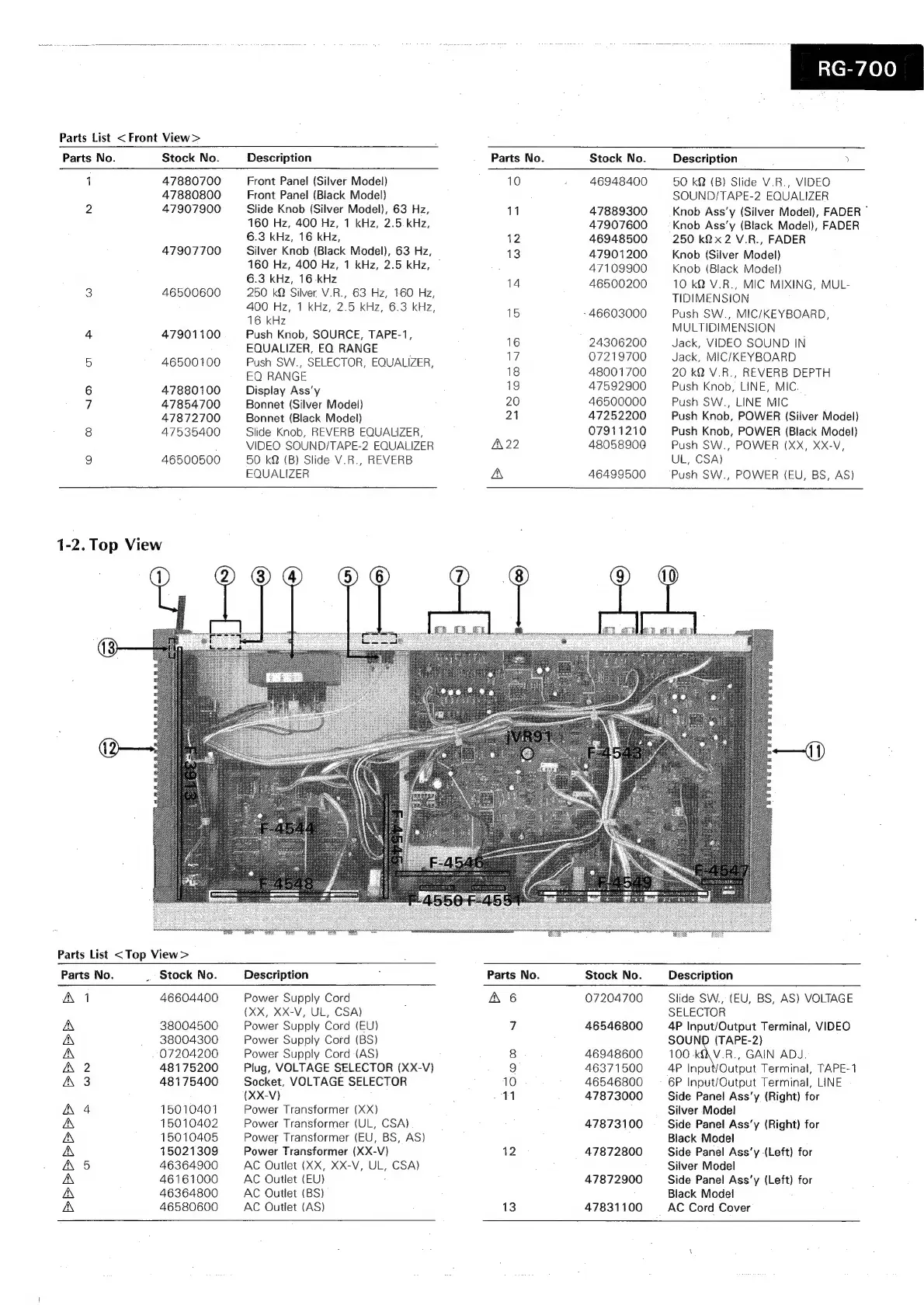

Sansui RG-700 - Page 3

Parts List <Front View>
Parts No. Stock No. Description Parts No. Stock No. Description : )
1 47880700 Front Panel (Silver Model) 10 46948400 50 kQ (B) Slide V.R., VIDEO
47880800 Front Panel (Black Model) SOUND/TAPE-2 EQUALIZER
2 47907900 Slide Knob (Silver Model), 63 Hz, 11 47889300 Knob Ass’y (Silver Modei), FADER °
160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 47907600 _—_ Knob Ass’y (Black Model}, FADER
6.3 kHz, 16 kHz, 12 46948500 250 k2x2 V.R., FADER
47907700 Silver Knob (Black Model), 63 Hz, 13 47901200 Knob (Silver Model)
ae ee 1 kHz, 2.5 kHz, 47109900 Knob (Black Model)
.3 kHz, z 14 46500200 10kQV.R., MI :
3 46500600 250 kQ Silver V.R., 63 Hz, 160 Hz, TIDIMENSION Meee
fone T kHz, 2.5 kHz, 6.3 kHz, 15 -46603000 Push SW., MIC/KEYBOARD,
MULTIDIMENSION
PI a ‘
+ ergo O0 See pos Bly 16 24306200 Jack, VIDEO SOUND IN
5 46500100 Push SW., SELECTOR, EQUALIZER, 7 07219700 Jack, MIC/KEYBOARD
EO RANGE 18 48001700 20 kQV.R., REVERB DEPTH
6 47880100 Display Ass'y 19 47592900 Push Knob, LINE, MIC.
7 47854700 Bonnet (Silver Model) 20 46500000 = Push SW., LINE MIC
47872700 Bonnet (Black Model) 21 47252200 Push Knob, POWER (Silver Model}
8 47535400 Slide Knob, REVERB EQUALIZER, 07911210 — Push Knob, POWER (Black Model)
VIDEO SOUND/TAPE-2 EQUALIZER A\22 48058906 Push SW., POWER (XX, XX-V,
9 46500500 ~—-50 k@ (B) Slide V.R., REVERB UL, CSA)
EQUALIZER A 46499500 =~Push SW., POWER (EU, BS, AS)
1-2. Top View
)
Parts List <Top View>
Parts No. _ Stock No. Description Parts No. Stock No. Description
A 1 46604400 Power Supply Cord A 6 07204700 Slide SW., (EU, BS, AS} VOLTAGE
(XX, XX-V, UL, CSA) SELECTOR
A 38004500 Power Supply Cord (EU) 7 46546800 4P Input/Output Terminal, VIDEO
A 38004300 Power Supply Cord (BS) SOUND (TAPE-2)
A 07204200 Power Supply Cord (AS) 8 46948600 100 AVR. GAIN ADJ.
A 2 48175200 Plug, VOLTAGE SELECTOR (XX-V} 9 46371500 4P Input/Output Terminal, TAPE-1
A 3 48175400 Socket, VOLTAGE SELECTOR 10 46546800 6P Input/Output Terminal, LINE
(XX-V) ald 47873000 Side Panel Ass’y (Right) for
A 4 15010401 Power Transformer (XX) Silver Model
A 15010402 Power Transformer (UL, CSA) 47873100 Side Panel Ass’y (Right) for
A 15010405 Power Transformer (EU, BS, AS) Black Model
A 15021309 Power Transformer (XX-V) 12 47872800 Side Panel Ass‘y -(Left) for
A 5 46364900 AC Outlet (XX, XX-V, UL, CSA) Silver Model
A 46161000 AC Outlet (EU) : 47872900 Side Panel Ass’y (Left) for
A 46364800 — AC Outlet (BS) Black Model
A 46580600 AC Outlet (AS) 13 47831100 AC Cord Cover
