MANUAL TRANSMISSION 7A-13

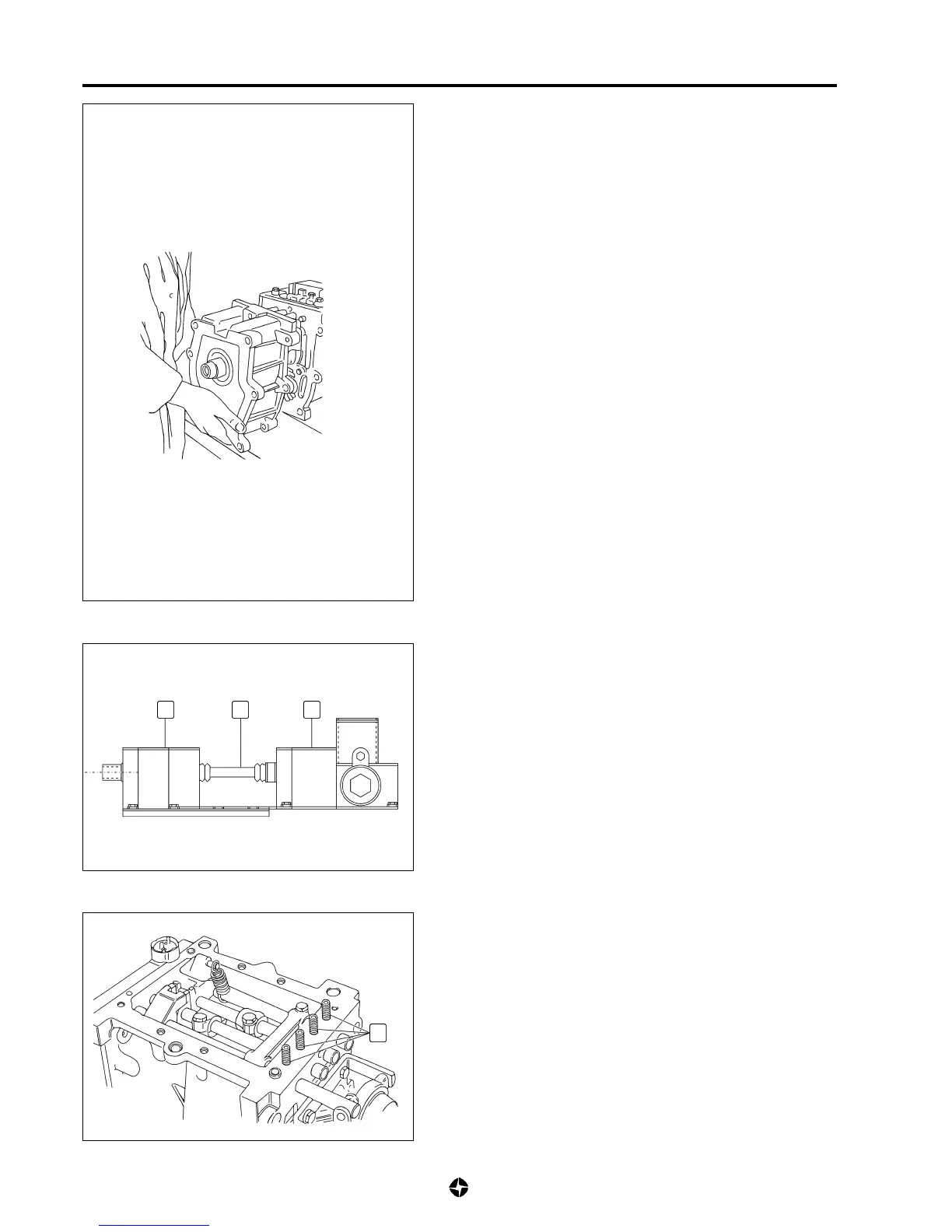

REPAIR OF THE GEAR BOX
1) Remove gear box and transfer box assembly from the vehicle
(see 7A-8).
2) Separate the gear box and transfer box (see 7A-12).
Removal the selector shafts, heads and gear
selector forks.
4) Remove springs (4) which press on the centralising balls of
the selector shafts. Use the tool ref.194635 to extract the
balls.
4
Removal gear box top cover
2) Remove outlet screw with its washers and separate the
breather pipe.
3) Remove axis (1), lever housing, (2) and cover (3) from gear
box upper.
Dismantling
5th gear housing removal
1) Unscrew the 5th gear fixing screw and remove the housing.
3 1 2
