7A-16 MANUAL TRANSMISSION

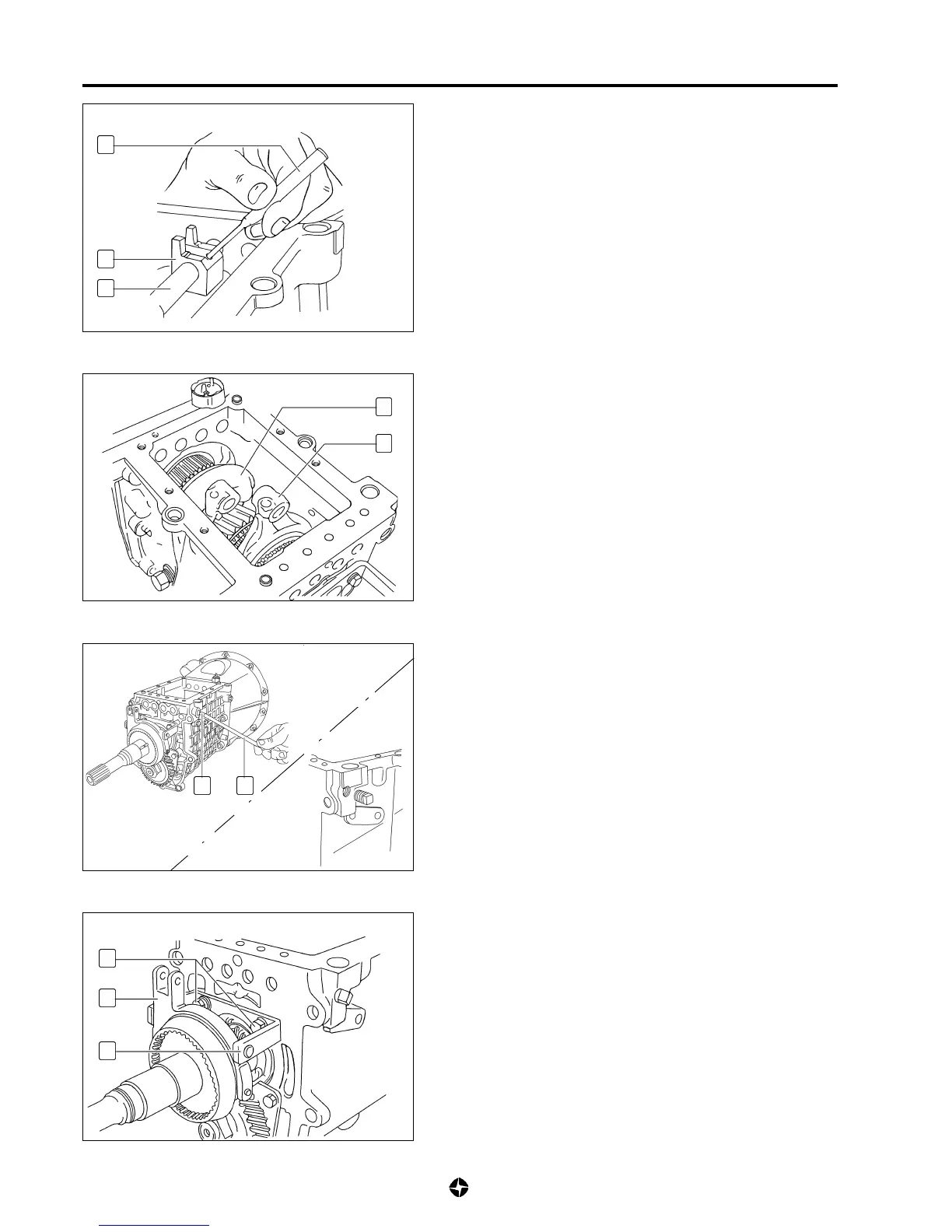

16) Use the punch (A) to tap the elastic bolt which fixes the 1st
and 2nd selector head (16) to its selector shaft until it is
free.
17) Take out the selector shaft (17), the selector head and the
reverse gear crosspiece.
A
16
17
18) Remove the selector forks for 3rd and 4th gears (18) and 1st
and 2nd gears (19).
18
19
19) Remove the plug so as to access the selector shaft bolts
through the passage.
20) Using tool (D) ref.194635, remove the selector shaft bolts
(20)
D
21) Remove the fixing elements (21) which link the support (22)
to the box casing.
22) Remove the selector fork assembly (23) and the support
(22).
21
22
23
20
