Sanus CALW01 - Installation Methods; Install Clips; Install Light - Flush Mount; Install Light - Angle Mount

6901-002139 <01>
5
[02]
[02]
[02]
[01]
[02]
[01]
Magnets
[01]
[02]

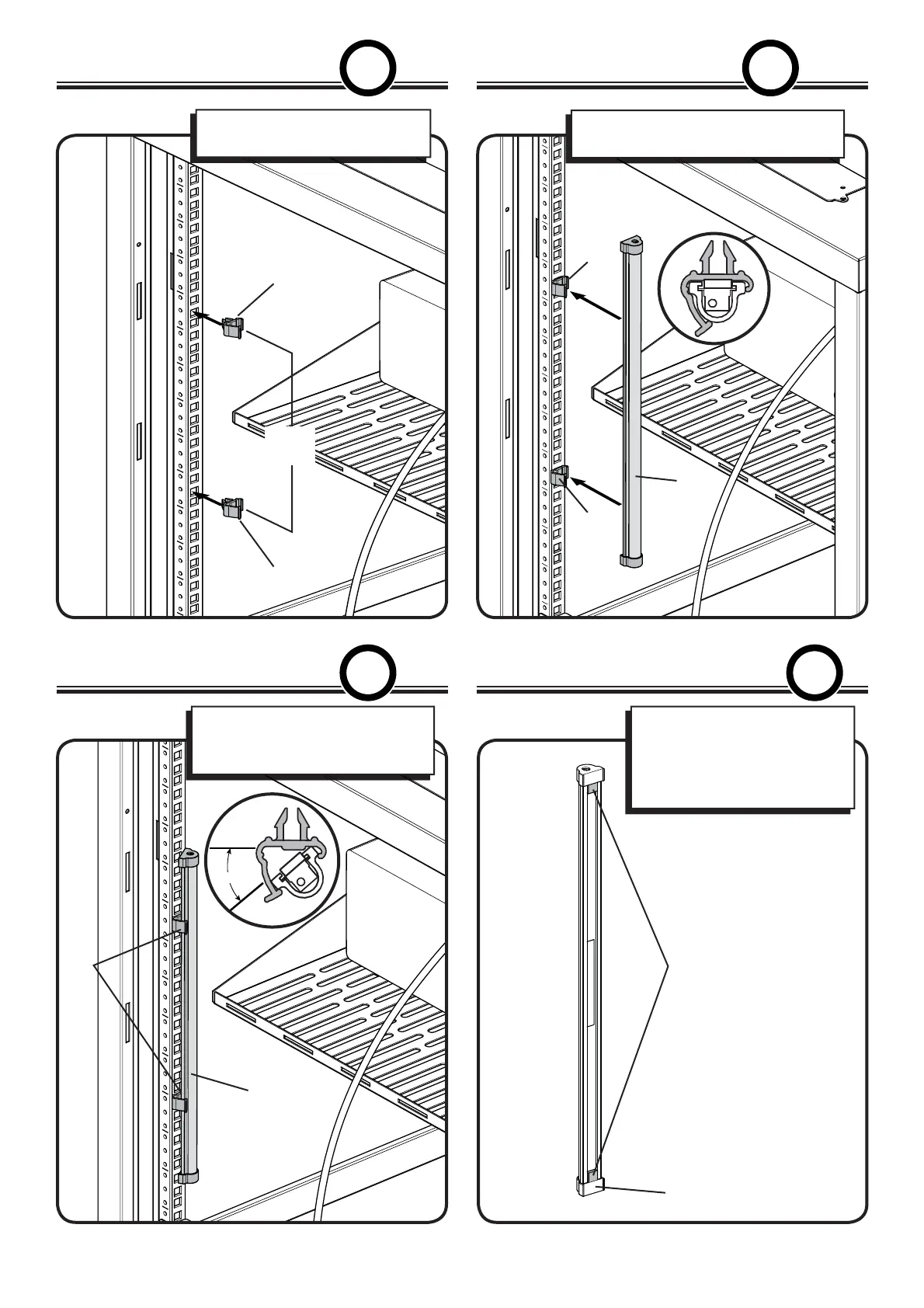

2 Install Light - Flush
1 Install Clips
2 Install Light - Angle 2 Install Light - Magnet
Mount clips [02] to rack rails
approximately 4U apart.
Snap light  xture [01] into clips [02].
Angle the light  xture [01] in
the clips [02] to provide better
lighting if required.
The base of the light [01]
contains two magnets. Use
these to mount the light to
any of the steel surfaces of the
rack.
45˚
OPT
OPT
OPT
OPT
≈4U
