SANY SCC3000US - Load Charts of Boom Hook for HC Operating Condition

SCC3000US Crawler Crane―Operation Manual
Section 4-Load Charts
- 10/16 -

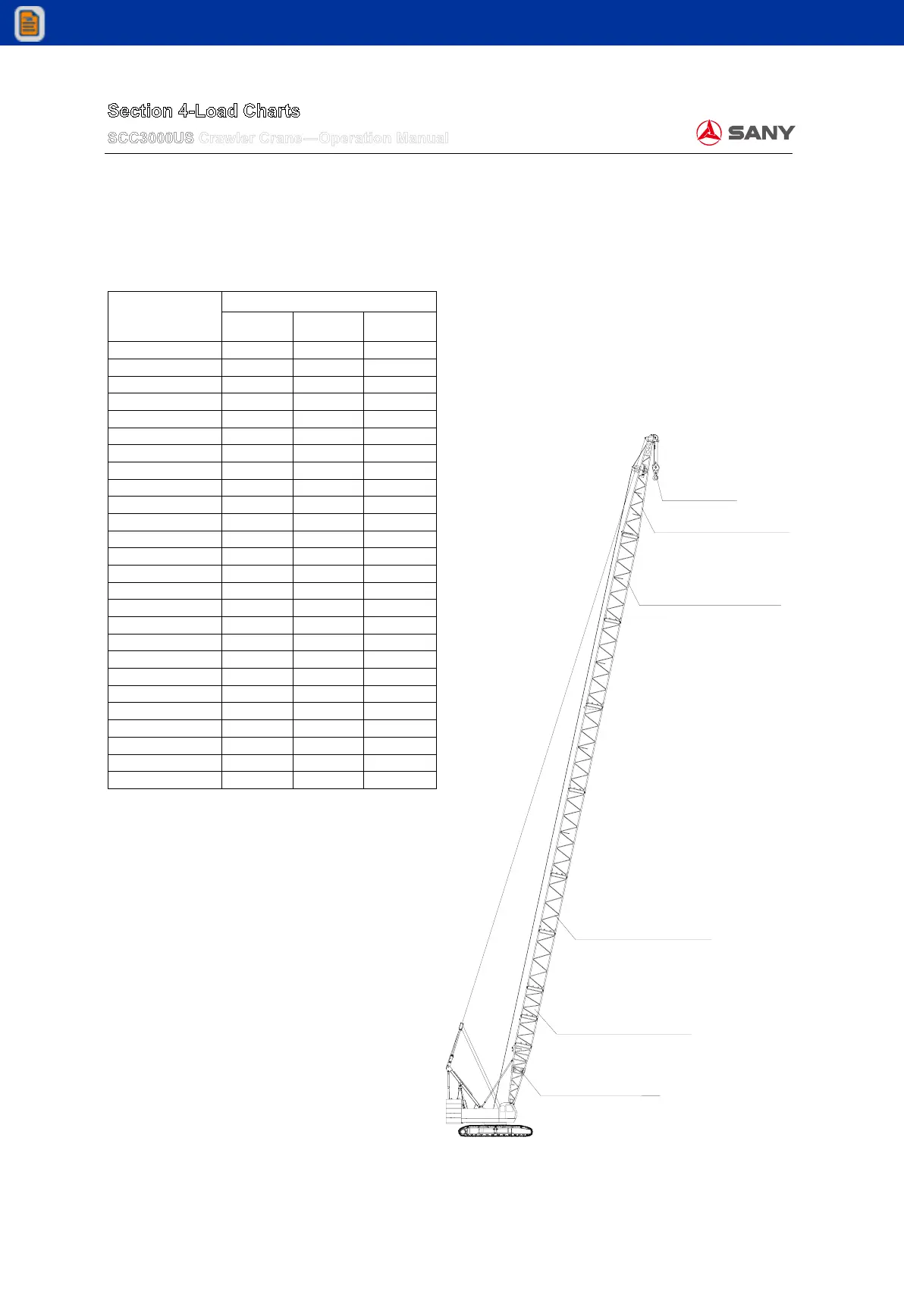

4.2 Load Charts of Boom Hook for HC Operating Condition
Boom Combination of HC Operating Condition
Boom Length
(m)(ft)
Boom Insert(m)(ft)
3
m(9′10″)
6
m(19′ 8″)
12
m(39′4″)
16.5 (54′2″) - - -
19.5 (63′12″) 1 - -
22.5 (73′10″) - 1 -
25.5 (83′8″) 1 1 -
28.5 (93′6″) - - 1
31.5 (103′4″) 1 - 1
34.5 (113′2″) - 1 1
37.5 (123′) 1 1 1
40.5 (132′10″) - - 2
43.5 (142′9″) 1 - 2
46.5 (152′7″) - 1 2
49.5 (162′5″) 1 1 2
52.5 (172′3″) - - 3
55.5 (182′1″) 1 - 3
58.5 (191′11″) - 1 3
61.5 (201′9″) 1 1 3
64.5 (211′7″) - - 4
67.5 (221′5″) 1 - 4
70.5 (231′4″) - 1 4
73.5 (241′2″) 1 1 4
76.5 (251′) - - 5
79.5 (260′10″) 1 - 5
82.5 (270′8″) - 1 5
85.5 (280′6″) 1 1 5
88.5 (290′4″) - 2 5
91.5 (300′2″) 1 2 5
HC Operating Condition
Load Charts of Boom Hook For SCC2500C HC Operating Condition
Boom Combination of HC Operating
Condition
Boom Length Boom Insert
（m）
3 m
(9 10")
6 m
(19 8")
12 m
(39 4")
16.5 (54 2") -
- -
19.5 (63 12") 1 - -
22.5 (73 10") - 1 -
25.5 (83 8") 1 1 -
28.5 (93 6") - - 1
31.5 (103 4") 1 - 1
34.5 (113 2") - 1 1
37.5 (123 ) 1 1 1
40.5 (132 10") - - 2
43.5 (142 9") 1 - 2
46.5 (152 7") - 1 2
49.5 (162 5") 1 1 2
52.5 (172 3") - - 3
55.5 (182 1") 1 - 3
58.5 (191 11") - 1 3
61.5 (201 9") 1 1 3
64.5 (211 7") - - 4
67.5 (221 5") 1 - 4
70.5 (231 4") - 1 4
73.5 (241 2") 1 1 4
76.5 (251 ) - - 5
79.5 (260 10") 1 - 5
82.5 (270 8") - 1 5
85.5 (280 6") 1 1 5
88.5 (290 4") - 2 5
91.5 (300 2") 1 2 5
HC Operating Condition
Boom Hook
12m(39'4'' )Boom insert
(5 sections)
Boom tip 8.5m
(27'10")
6m (19'8'')Boom insert
(2 sections)
3m (9'10'')Boom insert
(1 sections)
Boom base 8m
(26'3'')
