SANY SCC3000US - Load Charts of Extension Jib Hook for HC Operating Condition

- 11 / 16 -
SCC3000US Crawler Crane ― Operation Manual
Section 4-Load Charts

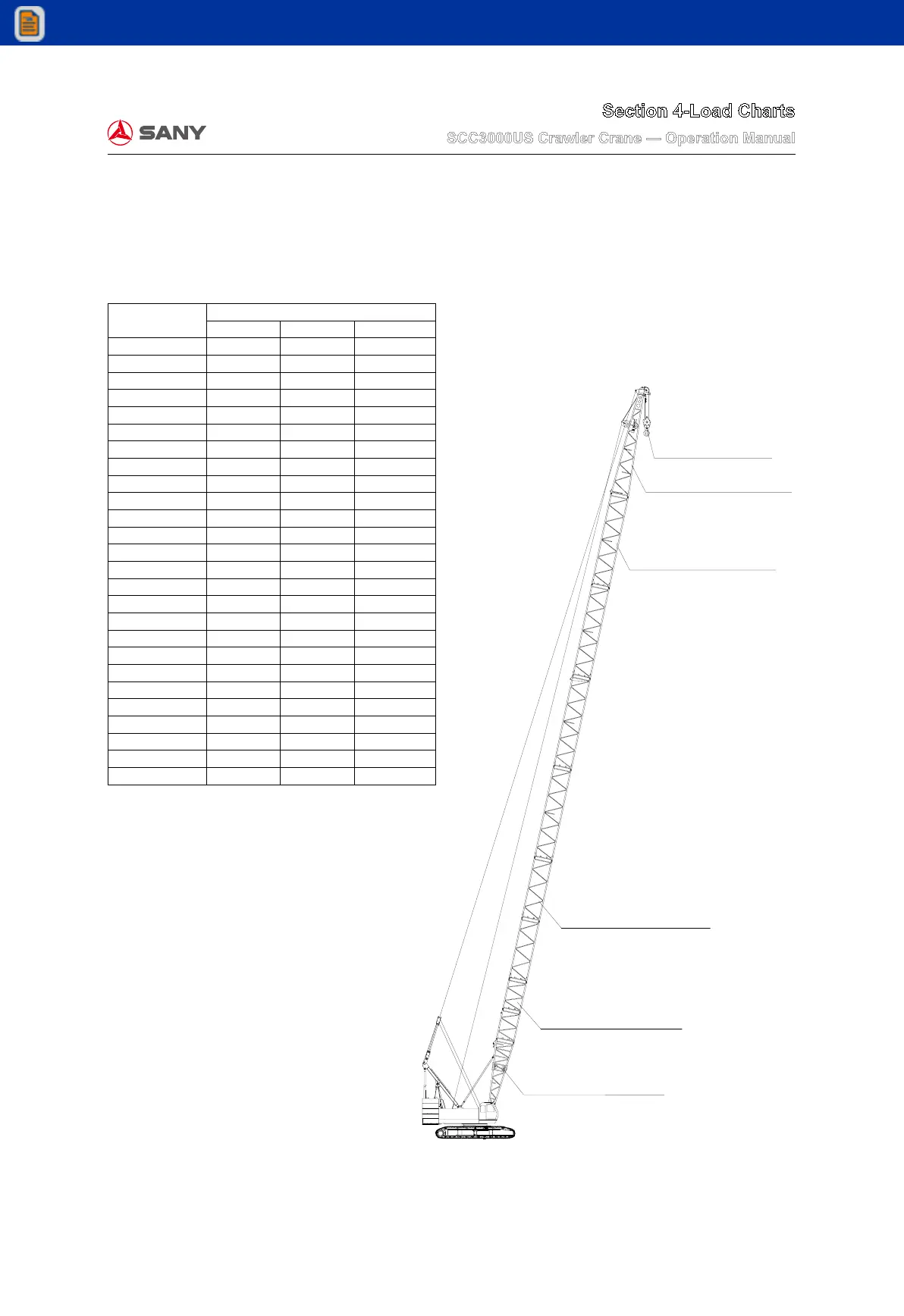

4.3 Load Charts of Extension jib Hook for HC Operating Condition
Boom Combination of HC Operating Condition
Boom Length
(m)(ft)
Boom Insert(m)(ft)
3 m(9′10″) 6 m(19′8″) 12 m(39′4″)
16.5 (54′2″) - - -
19.5 (63′12″) 1 - -
22.5 (73′10″) - 1 -
25.5 (83′8″) 1 1 -
28.5 (93′6″) - - 1
31.5 (103′4″) 1 - 1
34.5 (113′2″) - 1 1
37.5 (123′) 1 1 1
40.5 (132′10″) - - 2
43.5 (142′9″) 1 - 2
46.5 (152′7″) - 1 2
49.5 (162′5″) 1 1 2
52.5 (172′3″) - - 3
55.5 (182′1″) 1 - 3
58.5 (191′11″) - 1 3
61.5 (201′9″) 1 1 3
64.5 (211′7″) - - 4
67.5 (221′5″) 1 - 4
70.5 (231′4″) - 1 4
73.5 (241′2″) 1 1 4
76.5 (251′) - - 5
79.5 (260′10″) 1 - 5
82.5 (270′8″) - 1 5
85.5 (280′6″) 1 1 5
88.5 (290′4″) - 2 5
91.5 (300′2″) 1 2 5
Load Charts of Extension jib Hook For SCC2500C HC Operating Condition
Boom Combination of HC Operating
Condition
Boom Length Boom Insert
（m）
3 m
(9 10")
6 m
(19 8")
12 m
(39 4")
16.5 (54 2") -
- -
19.5 (63 12") 1 - -
22.5 (73 10") - 1 -
25.5 (83 8") 1 1 -
28.5 (93 6") - - 1
31.5 (103 4") 1 - 1
34.5 (113 2") - 1 1
37.5 (123 ) 1 1 1
40.5 (132 10") - - 2
43.5 (142 9") 1 - 2
46.5 (152 7") - 1 2
49.5 (162 5") 1 1 2
52.5 (172 3") - - 3
55.5 (182 1") 1 - 3
58.5 (191 11") - 1 3
61.5 (201 9") 1 1 3
64.5 (211 7") - - 4
67.5 (221 5") 1 - 4
70.5 (231 4") - 1 4
73.5 (241 2") 1 1 4
76.5 (251 ) - - 5
79.5 (260 10") 1 - 5
82.5 (270 8") - 1 5
85.5 (280 6") 1 1 5
88.5 (290 4") - 2 5
91.5 (300 2") 1 2 5
Extension Jib Hook
Boom tip 8.5m
Boom insert 12m (39'4'')
(5 sections)
(27'10")
Boom insert6m (19'8'')
Boom insert 3m (9'10'')
Boom base 8m (26'3'')
HC Operating Condition
(2 sections)
(1 sections)
HC Operating Condition
