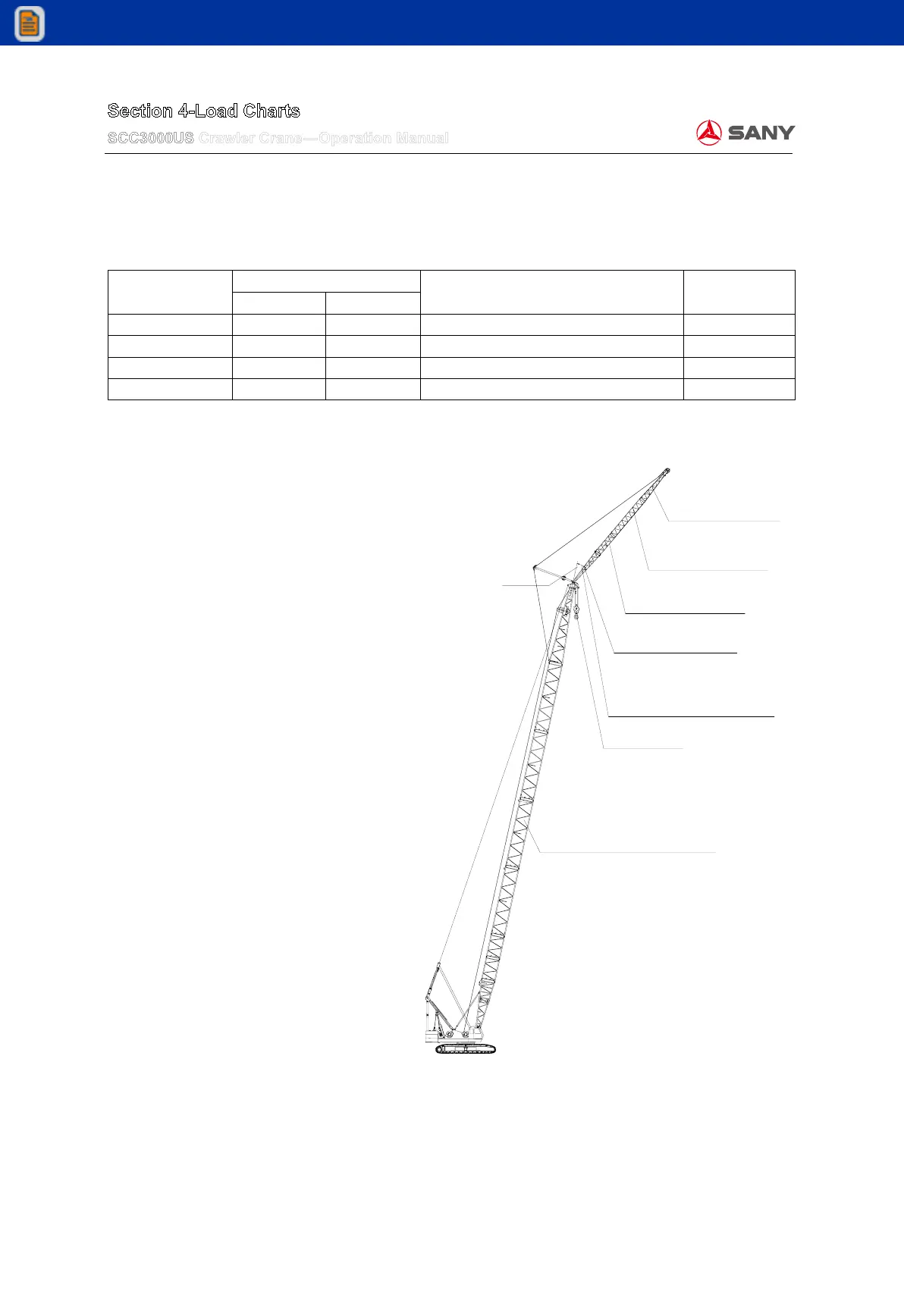

SCC3000US Crawler Crane―Operation Manual
Section 4-Load Charts
- 12/16 -
4.4 Load Charts of Boom Hook for FJ Operating Condition
Combination of Fixed Jib
Jib Length(m)(ft)
Jib Insert(m)(ft)
Boom Length(m)(ft) Jib Offset Angle
3 m(9′10″) 6 m(19′8″)
13(42′8 ) 1 - 28.5
～
76.5(93′6″
～
251′) 10°
，
30°
19(62′4″) 1 1 28.5
～
76.5(93′6″
～
251′) 10°
，
30°
25(82′) 1 2 28.5
～
76.5(93′6″
～
251′) 10°
，
30°
31(101′ 8″) 1 3 28.5
～
76.5(93′6″
～
251′) 10°
，
30°
Load Charts of Boom Hook for FJ Operating condition
Combination of Fixed Jib
Jib Insert
Jib Length
（m）
3 m
(9'10")
6 m
(19'8")
Boom Length
(m)
Jib Offset Angle
13
(42'8")
1 -
28.5～76.5
(93'6"～251')
10°，30°
19
(62'4")
1 1
28.5～76.5
(93'6"～251')
10°，30°
25
(82')
1 2
28.5～76.5
(93'6"～251')
10°，30°
31
(101'8")
1 3
28.5～76.5
(93'6"～251')
10°，30°
Jib tip(5m)(16'5")
6m(19'8") Jib insert
3m(9'10") Jib insert
Jib base(5m)(16'5")
Jib offset angle(10°,30°)
Boom Hook
Main boom(28.5m-76.5m)
(93'6"-251'm)
FJ工况
30°
(3 sections)
(1 sections)
FJ Operating Condition
