SCC3000US Crawler Crane ― Operation Manual
Section 4-Load Charts
4) Scope of Application: values or rated loads listed in the load charts are all applicable for the whole
360°slewing range.
5) Rated Load for Traveling Crane: values of rated loads listed in the load charts are calculated in
condition that the crane is not traveling, and these values should be decreased accordingly when
the crane is traveling. For traveling steadily at low speed, 90% of the rated load is allowed to attach
in H operating condition for straight-line traveling, or 70% of the rated load is allowed to attach in H
operating condition for turning, or 50% of the rated load is allowed to attach in FJ operating condition
and LJ operating condition for straight-line traveling.
Notices requiring special care for traveling with load:
a) It is suggested to move the load in an area as small as possible and make the load close to the ground enough
(with maximum distance of 500mm (1′7.7″) to the ground);
b) Only the low gear can be used if possible, and take proper measures to prevent the load swinging. For
specications on traveling, please refer to the “Traveling Operation” in Chapter
Ⅱ
of this manual.
Chapter Load ChartsⅢ SCC500E Operating Manual
5). Rated Load for Traveling Crane: values of rated loads listed in the load charts are calculated
in condition that the crane is not traveling, and these values should be decreased accordingly
when the crane is traveling. For traveling steadily at low speed, 90% of the rated load is
allowed to attach in H operating condition for straight-line traveling, or 70% of the rated load
is allowed to attach in H operating condition for turning, or 50% of the rated load is allowed
to attach in FJ operating condition and LJ operating condition for straight-line traveling.
Notices requiring special care for traveling with load:
a) It is suggested to move the load in an area as small as possible and make the load close
to the ground enough (with maximum distance of 500mm
(1 7.7 ) to the ground);
b) Only the low gear can be used if possible, and take proper measures to prevent the load
swinging. For specifications on traveling, pleas
e refer to the “Traveling Operation” in
Chapter Ⅱ of this manual.
Versions:02 page 4 of 9 3-1

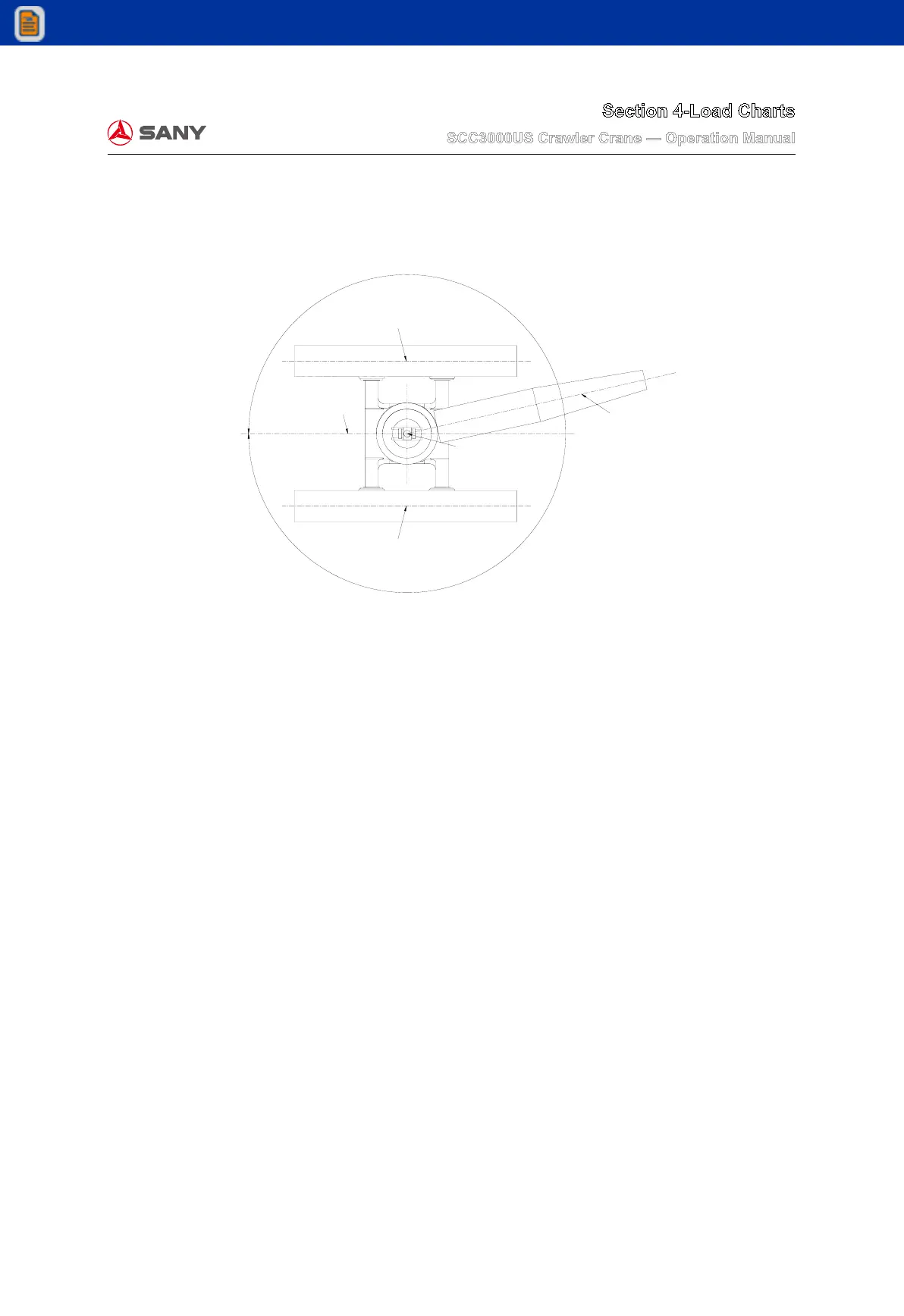

longitudinal
center line of
lower-works
360°
Center line of track
Center line of track
slewing center
Center line
of
operating equipment
