AUDIO OUT
S-VIDEO OUT
COAXIAL
COMPONENT VIEDO OUT
Pr
Y
L
Pb
VIDEO OUT
R
COMPONENT VIDEO INPUT
YP
B
P
R
AUDIO OUT
S-VIDEO OUT
COAXIAL
COMPONENT VIEDO OUT
Pr
Y
L
Pb
VIDEO OUT
R
-E11-
ADDITIONAL CONNECTION EXAMPLES

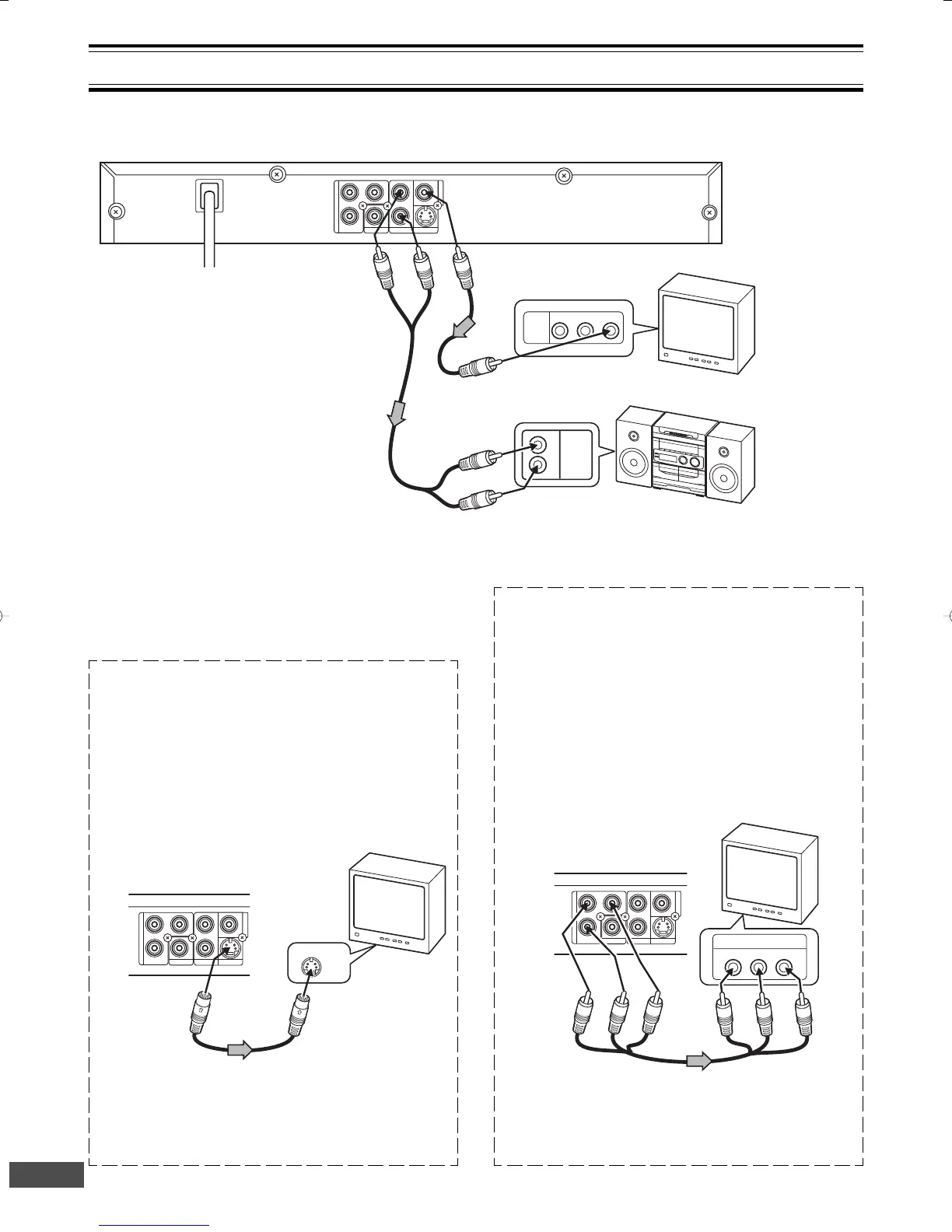

Connecting to an Audio System and TV (Example 3)
Connect the DVD video player to an Audio System and a TV.
Notes:
• Please refer to the instruction manual of
your Audio System and TV.
• When you connect the DVD video player
to other equipment, be sure to turn off the
power and disconnect all of the equipment
from the wall outlet until all the connec-
tions have been made.
• Do not connect the DVD video player to a
VCR directly. The playback picture will be
distorted because DVD video discs are
copy protected.
Using the S-VIDEO OUT jack
Note:
Please follow the steps before turn on the power.
1. If your TV has the S-video input jack, connect the DVD
video player with the S-video cable (not supplied). (The
VIDEO OUT jack connection is not necessary.)
You can enjoy clearer picture playback.
2. You also need to connect the left and right audio cables
(not supplied) to the AUDIO OUT jacks of the DVD video
player and the Audio input jacks of the Audio System.
DVD video player
To S-VIDEO
OUT jack
To S-video input jack
*S-video cable
(not supplied)
*Please consult your local audio/video dealer.
Using the COMPONENT VIDEO OUT jacks
Note:
Please follow the steps before turn on the power.
1. If your TV has the component video input jacks, con-
nect the DVD video player to these jacks. (The VIDEO
OUT or S-VIDEO OUT jack connection is not
necessary.)
You can enjoy high quality picture playback.
2. You also need to connect the left and right audio cables
(not supplied) to the AUDIO OUT jacks of the DVD
video player and the Audio input jacks of the Audio
System.
*Component video cable (not supplied)
DVD video player
To VIDEO OUT jack (Yellow)
To video input (Yellow)
TV with Audio/Video input jacks
Audio System
(White) L
(Red) R
*Video cable (not supplied)
To AC 120V, 60Hz
To AUDIO OUT jacks
(Red) R
(White) L
TV
TV
Green
Blue
Red
Red
Green
Blue
*Audio cable
(not supplied)
*Please consult your local audio/video dealer.
DVD video player
AUDIO
INPUT
R
L
R-AUDIO-L VIDEO
AUDIO
VIDEO
INPUT
1
R
AUDIO OUT
S-VIDEO OUT
COAXIAL
COMPONENT VIEDO OUT
Pr
Y
L
Pb
VIDEO OUT
To audio input jacks
DWM-450-US - English 3/16/05, 3:58 PM12
