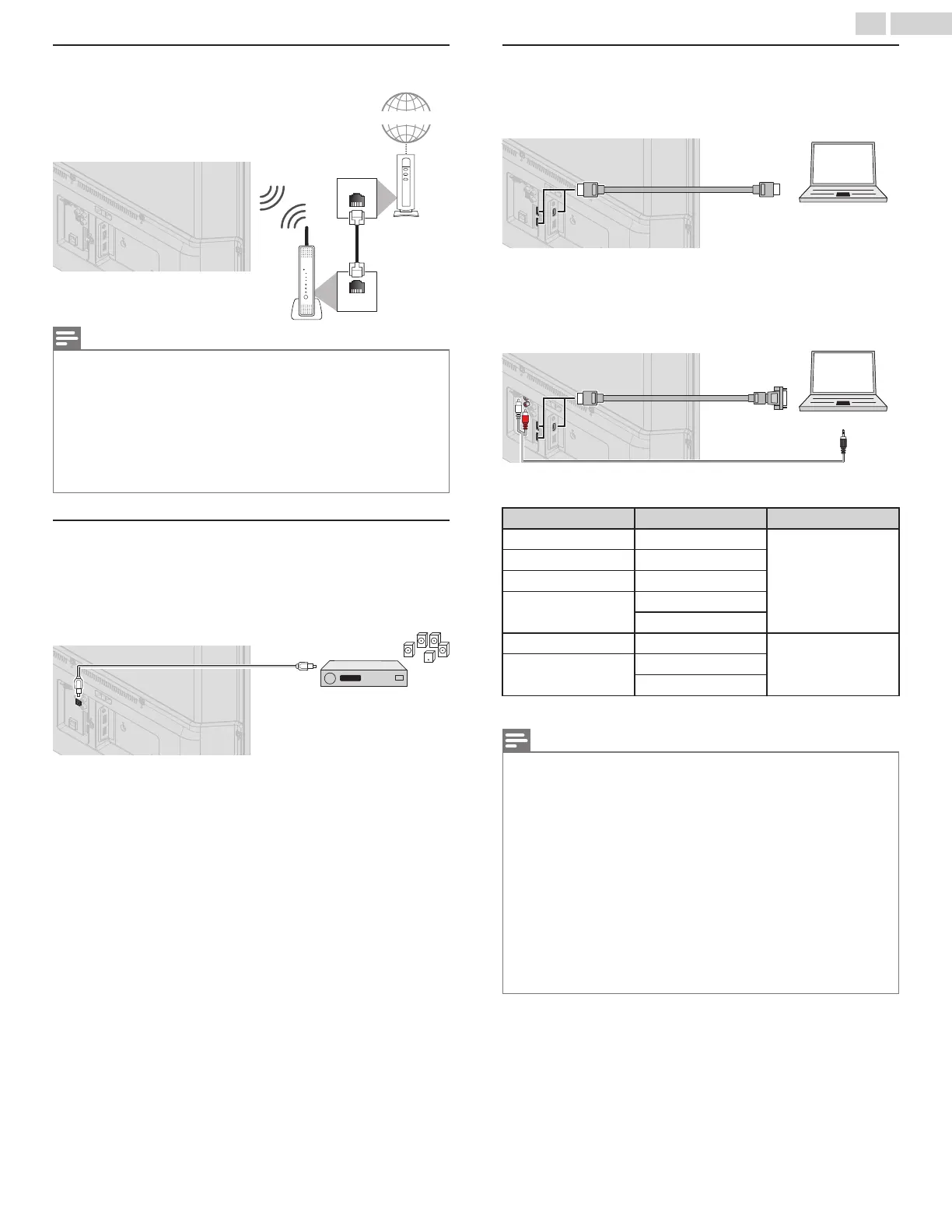

Connecting the TV to the internet using a wireless
LAN
Internet
LAN
WLAN
Ethernet
cable
Network provisioning
equipment
Broadband
router
Note(s)
●
After you make the wireless connection, set up the necessary network settings.
Connect to network L p. 41
●
Use a wireless LAN Access Point (AP) (e.g. broadband wireless router) which
supports
IEEE 802.11 a/b/g/n/ac. (n is recommended for stable operation of the wireless
network.)
●
This unit does not support Ad-hoc mode.
●
Other radio devices or obstacles may cause interference to the wireless
network connection.
Digital audio output connection
If you connect this unit to an external digital audio device, you can
enjoy multi-channel audio like 5.1ch digital broadcasting sound.
Use a
digital audio optical cable to connect the unit to external digital
audio devices.
Digital audio optical
cable
Digital home
theater amplifier
IN
OUT
PC connection
HDMI connection
This unit can be connected to your PC that has an HDMI terminal.
Use an HDMI cable for this digital connection.
HDMI cable
PC
IN
OUT
HDMI-DVI connection
This unit can be connected to your PC that has a DVI terminal.
Use an HDMI-DVI conversion cable for this video digital connection
and it requires stereo mini 3.5mm plug audio cable for analog audio
signal as well.
PC
HDMI-DVI
conversion cable
Stereo mini 3.5 mm plug audio cable
IN
IN
OUT
OUT
The following PC-input video signals can be displayed:
Format Resolution Refresh rate
VGA 640 x 480
60Hz
SVGA 800 x 600
XGA 1,024 x 768
WXGA
1,280 x 768
1,360 x 768
FHD 1,920 x 1,080
24/30/60Hz
UHD
3,840 x 2,160
4,096 x 2,160
Other formats or non-standard signals will not be displayed correctly.
Note(s)
●
Please purchase a HDMI-DVI conversion cable that has a ferrite core.
●
The following operations may reduce noise.
–
Attach a ferrite core to the AC power cord of your PC.
–
Unplug
the
AC power cord and use the built-in battery of your portable / laptop
PC.
●
Some HDMI cables and devices may not be compatible with the TV due to
different HDMI specifications.
●
Use an HDMI cable with the HDMI logo (a certified HDMI cable). High speed
HDMI cable is recommended for the better compatibility.
●
The unit accepts 480i, 480p, 720p, 1080i, 1080p and 2160p video signals only
when using the HDMI connection and HDMI-DVI connection.
●
HDMI-DVI connection requires separate audio connections as well and the
audio signals are output as analog (L/R) audio.
●
DVI does not display 480i image which is not in compliance with EIA/
CEA-861/861B.
18 .English
Continued on next page.
