CONNECTION

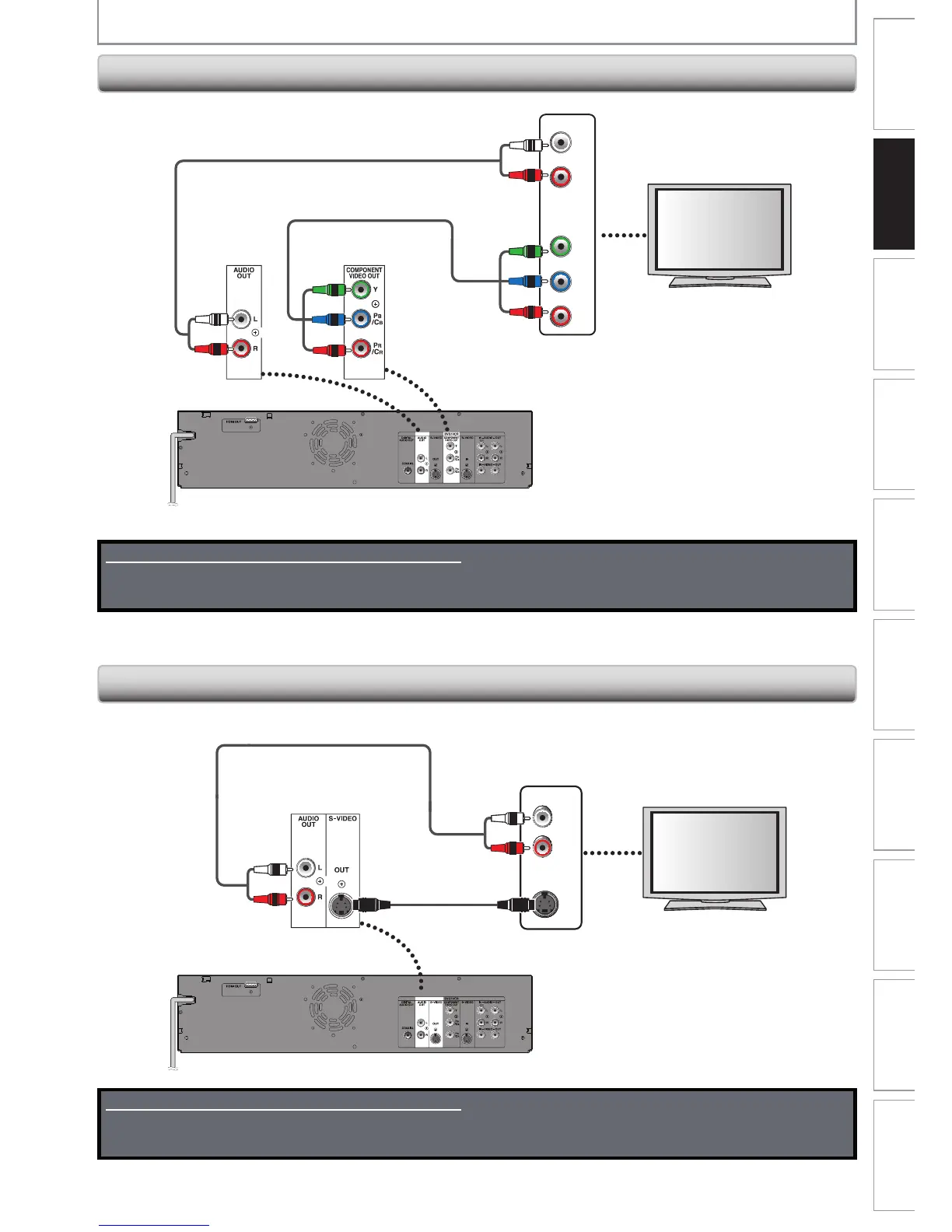

Connecting to a TV with Component Video Input jacks
Connecting to a TV with an S-Video Input Jack
AUDIO IN
L
R
S-VIDEO IN
rear of this unit
RCA audio cable
S-video cable
Y
P
B
/CB
PR
/CR
COMPONENT
VIDEO IN
AUDIO IN
L
R
RCA audio cable
(Green)
(Blue)
(Red)
(Green)
(Blue)
(Red)
RCA component video cable
rear of this unit
Supplied cables used in this connection are as follows:
•
RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
Supplied cables used in this connection are as follows:
•
RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
