CONNECTION

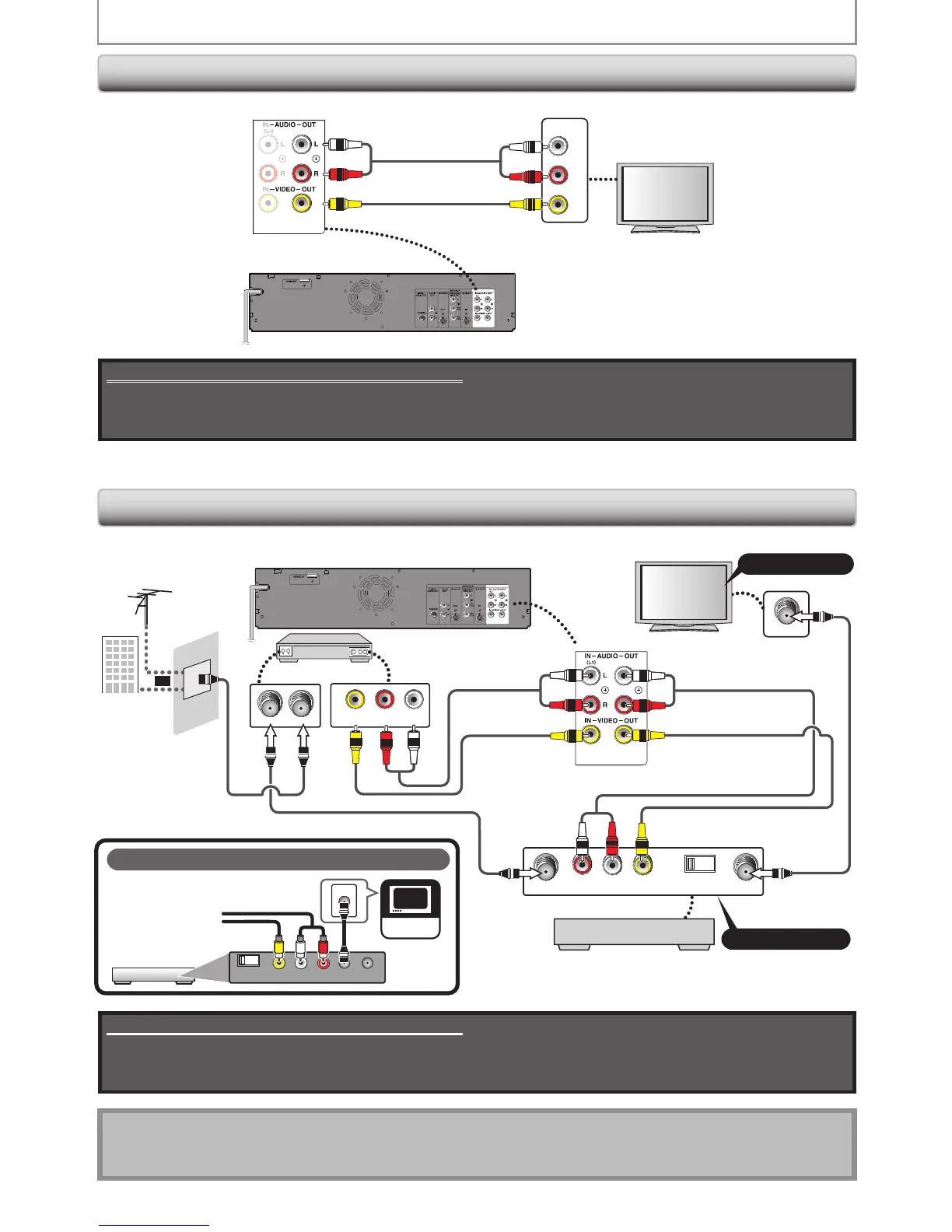

Connecting to a TV with Audio / Video Input Jacks
VIDEO IN
AUDIO IN
L
R
rear of this unit
RCA video cable
RCA audio cable
Supplied cables used in this connection are as follows:
•
RCA audio cable (L/R) x 1
•
RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
Connecting to a TV without Audio / Video Input Jacks
LR
AUDIO OUTVIDEO OUT
ANT. IN
AUDIO IN TO TVANT. IN
LR
CHANNEL
43
VIDEO IN
ANT. INANT.OUT
If your TV only has an Antenna input
(no A/V inputs), you will need a
RF modulator
(NOT INCLUDED)
to connect this player.
RF modulator
AUDIO IN
RL
VIDEO IN
CHANNEL
43
TO TV
TV
ANT. IN
ANT. IN
No Antenna (RF) Output!
Set channel 3 or 4
Set channel 3 or 4
or
rear of this unit
RCA audio cable
RCA audio cable
RCA video cable
RCA video cable
RF modulator
VHF / UHF
antenna
cable TV
company
RF coaxial cable
RF coaxial cable
RF coaxial cable
external tuner
Supplied cables used in this connection are as follows:
•
RCA audio cable (L/R) x 1
•
RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
Note
•
RF modulator is not supplied with this unit. You need to purchase it at your local store.
•
The quality of picture may become poor if this unit is connected to an RF modulator.
