CAN4201
C4042R4040
CAN
CAN
L4101
PARTS LIST
CAUTION : Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.
N.S.P : Not available as service parts.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE
IEC SYMBOL
!
!!
IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY AND
PERFORMANCE CAN BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY
!
!!
, USE ONLY THE
REPLACEMENT PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT
ARE DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE
MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE PRODUCT TO THE CUSTOMER.

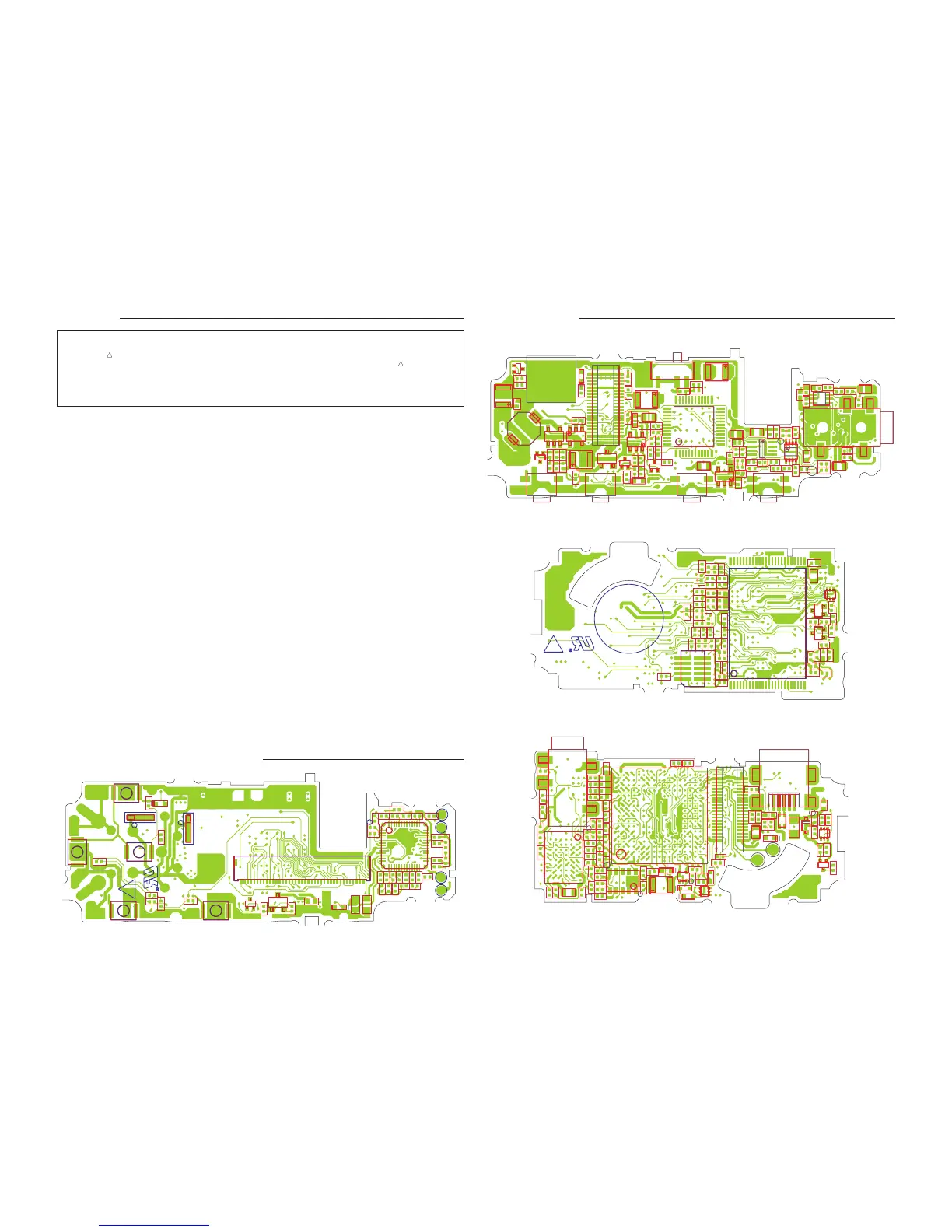

WIRING DIAGRAM
This is a basic wiring diagram.
-
+
MIC_R
GND
MIC_L
GND
1AD4B10D2250BA
HCMK-M1X
ERASE
REC
VOL+
VOL-
REP
FOLDER
ON
OFF
HOLD
C4571
R4517
S4603
C4583
IC461
R4572
R4582
C4509
R4608
C4401
R4485
CAN
R4527
B4401
CN441
C4501
C4485
C4405
C4475
C4406
C4474
C4484
CAN
C4407
R4501
48
40
25
24
20
1
HCMK-M1X
1AD4B10D2250A
JTAG
GND
1
9
10
2
R4049
L4002
Q4281
R4019
R4048
CN402
C4023
C4037
R4047
C4033
C4022
C4281
Q4271
R4046
R4039
R4045
C4021
R4281
C4032
C4031
C4012
C4019
R4271
C4029
C4018
C4015
R4202
C4034
R4038
R4037
R4033
R4069
R4043
R4042
R4021
R4031
R4097
R4082
R4084
R4018
R4086
R4087
R4024
R4085
IC404
R4020
R4088
C4028
R4083
C4271
R4068
C4201
C4030
B4271
B4202
B4281
Q4201
R4272R4282
C4036
C4202
REF.NO. PART NO. DESCRIPTION
WIRING DIAGRAM (LCD) Pattern Side View
This is a basic wiring diagram.
(LCD) Parts Side View
(MAIN) Pattern Side View
(MAIN) Parts Side View
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
614 329 9448 CARTON CASE,INNER
614 329 9455 INSTRUCTION MANUAL
645 059 4878 CABLE,USB
645 065 2226 HEADPHONE,16
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1 614 329 2555 ASSY,DEC,LCD
2 614 329 2623 CABINET,FRONT
3 614 328 3379 BUTTON,VOL
4 614 328 3522 HOLDER,LCD
5 614 328 3669 TERMINAL,BATTERY,(+,-)
6 614 328 3386 BUTTON,PLAY
7 614 329 2647 COVER,USB
8 614 329 2722 KNOB,SLIDE
9 614 328 3560 SPACER,MIC
10 614 329 2616 CABINET
11 614 328 3492 HOLDER,SPEAKER
12 614 329 2746 LID,BATTERY
13 614 329 4818 ASSY,CABINET,REAR
14 614 329 2661 DEC,STAND
15 614 328 3621 SHAFT,CLIP
16 614 328 3638 SPRING,WIRE,CLIP
17 614 328 3454 DEC,REAR
18 614 328 3485 HOLDER,CLIP
FIXING PARTS
REF.NO. PART NO. DESCRIPTION
Y01 411 184 5109 SCR TPG PAN PCS 1.7X8,
REAR-FRONT
ELECTRICAL PARTS
REF.NO. PART NO. DESCRIPTION
51 645 063 7216 LCD
52 645 063 7223 MICROPHONE
53 645 063 1481 SPEAKER,8
LCD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
71 614 329 2548 ASSY PWB,LCD
AM401 614 328 3645 TERMINAL,BATTERY,BATT+
AM402 614 328 3652 TERMINAL,BATTERY,BATT-
CN451 645 063 1436 JACK,PHONE D3.6
S4601 645 040 1978 SWITCH,PUSH 1P-1T
S4604 645 040 1978 SWITCH,PUSH 1P-1T
S4605 645 040 1978 SWITCH,PUSH 1P-1T
S4613 645 032 7421 SWITCH,SLIDE 1P-2T
S4615 645 040 1978 SWITCH,PUSH 1P-1T
MAIN P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
CN411 645 053 8421 SOCKET,USB
CN421 645 053 9053 JACK,PHONE D3.6
Y02 411 030 0500 SCR TPG PAN PCS 1.7X4,SPEAKER
To Next Page
