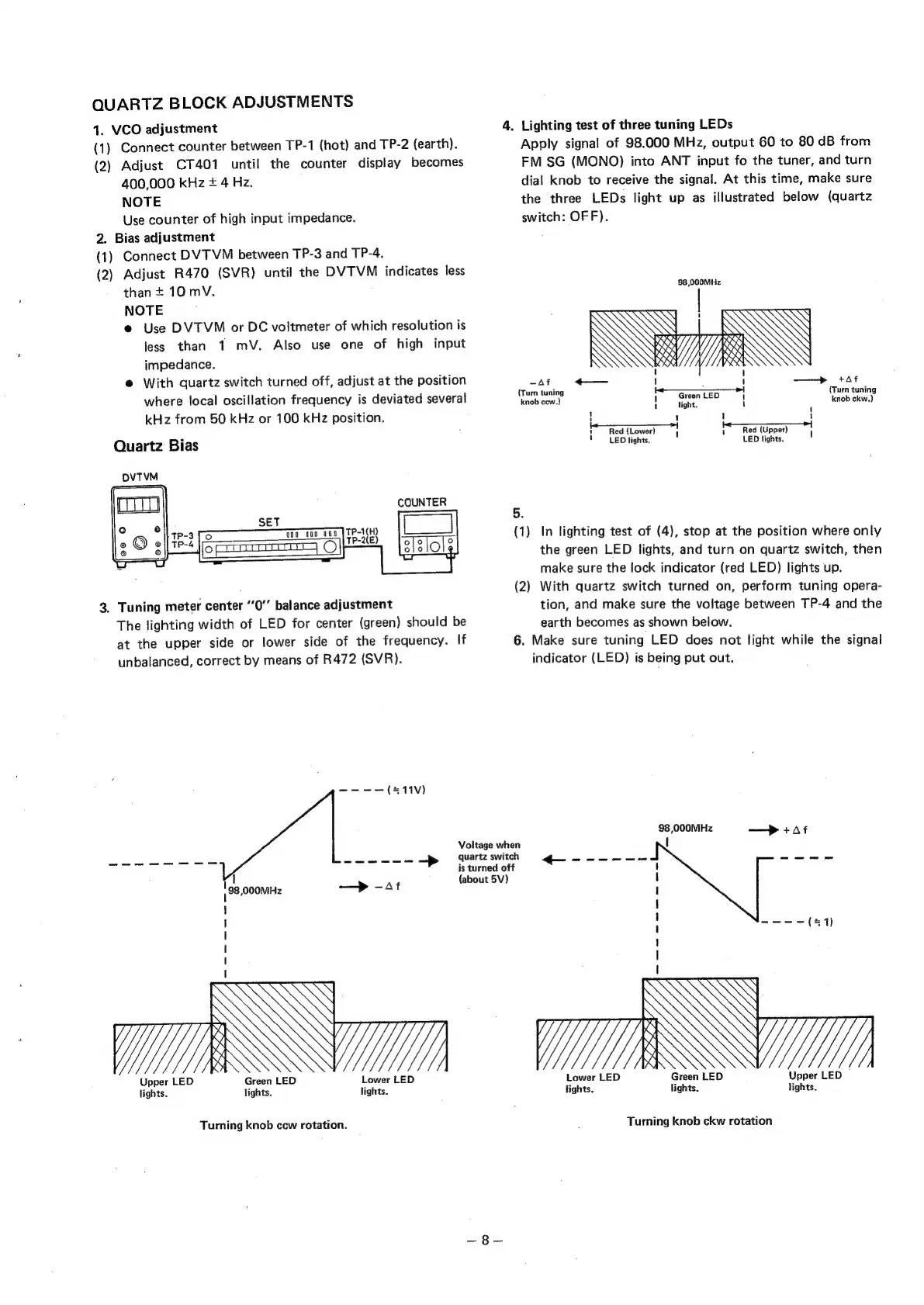

QUARTZ
BLOCK
ADJUSTMENTS
1.
VCO
adjustment
(1)
Connect
counter
between
TP-1
(hot)
and
TP-2
(earth).
(2)
Adjust
CT401
until
the
counter
display
becomes
400,000
kHz
+
4
Hz.
NOTE
Use
counter
of
high
input
impedance.
2.
Bias
adjustment
(1)
Connect
DVTVM
between
TP-3
and
TP-4.
(2)
Adjust
R470
(SVR)
until
the
DVTVM
indicates
less
than
+
10
mV.
NOTE
@
Use
DVTVM
or
DC
voltmeter
of
which
resolution
is
less
than
1
mV.
Also
use
one
of
high
input
impedance.
@
With
quartz
switch
turned
off,
adjust
at
the
position
where
local
oscillation
frequency
is
deviated
several
kHz
from
50
kHz
or
100
kHz
position.
Quartz
Bias
COUNTER
TP-1(H)
19
000
109
Tp-2tE)
3.
Tuning
meter
center
‘0’
balance
adjustment
The
lighting
width
of
LED
for
center
(green)
should
be
at
the
upper
side
or
lower
side
of
the
frequency.
If
unbalanced,
correct
by
means
of
R472
(SVR).
4.
Lighting
test
of
three
tuning
LEDs
Apply
signal
of
98.000
MHz,
output
60
to
80
dB
from
FM
SG
(MONO)
into
ANT
input
fo
the
tuner,
and
turn
dial
knob
to
receive
the
signal.
At
this
time,
make
sure
the
three
LEDs
light
up
as
illustrated
below
(quartz
switch:
OFF).
98,000MHz
i}
—~Af
+—
1
;
——p
+
Af
(Turn
tuning
(Turn
tuning
knob
cew.)
'
Greon/EED
knob
ckw.)
1
light.
1
H
!
!
i
t
Red
(Lower)
1
1
Red
(Upper)
h
'
LED
lights.
LED
lights.
(1)
In
lighting
test
of
(4),
stop
at
the
position
where
only
the
green
LED
lights,
and
turn
on
quartz
switch,
then
make
sure
the
lock
indicator
(red
LED)
lights
up.
(2)
With
quartz
switch
turned
on,
perform
tuning
opera-
tion,
and
make
sure
the
voltage
between
TP-4
and
the
earth
becomes
as
shown
below.
6.
Make
sure
tuning
LED
does
not
light
while
the
signal
indicator
(LED)
is
being
put
out.
~--—(811V)
98,000MHz
—p
At
Voltage
when
{
wee
MX
ee
ae
ee
ee
quartz
switch
4
Sas
fae
sees
a
a
ee
tee
>
is
turned
off
H
bout
5V
|98,000MHz
—>
-Af
wey
;
!
I
|
|
eae
re
(81)
!
1
\
|
|
!
s
NS
7
4
7
y
rs
y
My
N
ne
Ny
Upper
LED
Green
LED
Lower
LED
Lower
LED
Green
LED
Upper
LED
|
lights.
lights.
lights.
lights.
lights.
lights.
Turning
knob
ccew
rotation.
Turning
knob
ckw
rotation
