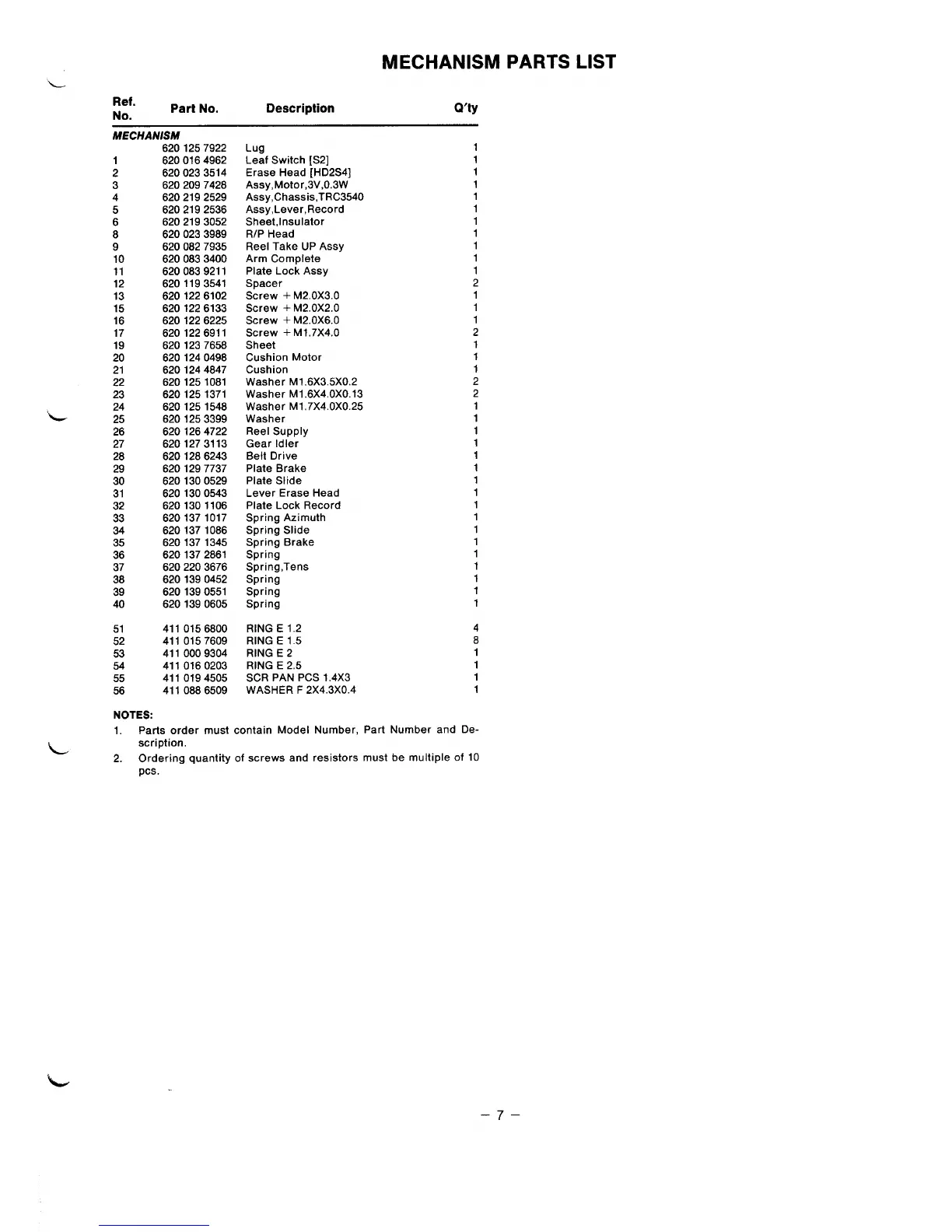

MECHANISM PARTS LIST
Ref.
No.
Part No.
Description
Q’ty
“L
L
MECHANISM
1
2
3
4
5
6
8
9
10
11
12
13
15
16
17
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
51
52
53
54
55
56
NOTES:
6201257922
6200164962
6200233514
6202097428
6202192529
6202192536
6202193052
6200233989
6200827935
6200833400
6200839211
6201193541
6201226102
6201226133
6201226225
6201226911
6201237656
6201240498
6201244847
6201251081
6201251371
6201251548
6201253399
6201264722
6201273113
6201286243
6201297737
6201300529
6201300543
6201301106
6201371017
6201371086
6201371345
6201372861
6202203676
6201390452
6201390551
6201390605
4110156800
4110157609
4110009304
4110160203
4110194505
4110886509
Lug
Leaf Switch [S2]
Erase Head [HD2S4]
Assy, Motor,3V,0.3W
Assy,Chassis,TRC3540
Assy,Lever,Record
Sheet,lnsulator
RIP Head
Reel Take UP Assy
Arm Complete
Plate Lock Assy
Spacer
Screw +M2.0X3.O
Screw +M2.0X2.O
Screw +M2.0X6.O
Screw +M1.7X4.O
Sheet
Cushion Motor
Cushion
Washer M1.6X3.5X0.2
Washer M1.6X4.0X0.13
Washer M1.7X4.OXO.25
Washer
Reel Supply
Gear Idler
Belt Drive
Plate Brake
Plate Slide
Lever Erase Head
Plate Lock Record
Spring Azimuth
Spring Slide
Spring Brake
Spring
Spring,Tens
Sprinr2
Sprinj
Spring
RING E 1.2
RING E 1.5
RING E 2
RING E 2,5
SCR PAN PCS 1.4X3
WASHER F 2X4.3X0.4
1
1
1
2
1
1
1
2
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
4
8
1
1
1
1
1. Parts order must contain Model Number, Part Number and De-
scription.
2. Ordering quantity of screws and resistors must be multiple of 10
pcs.
